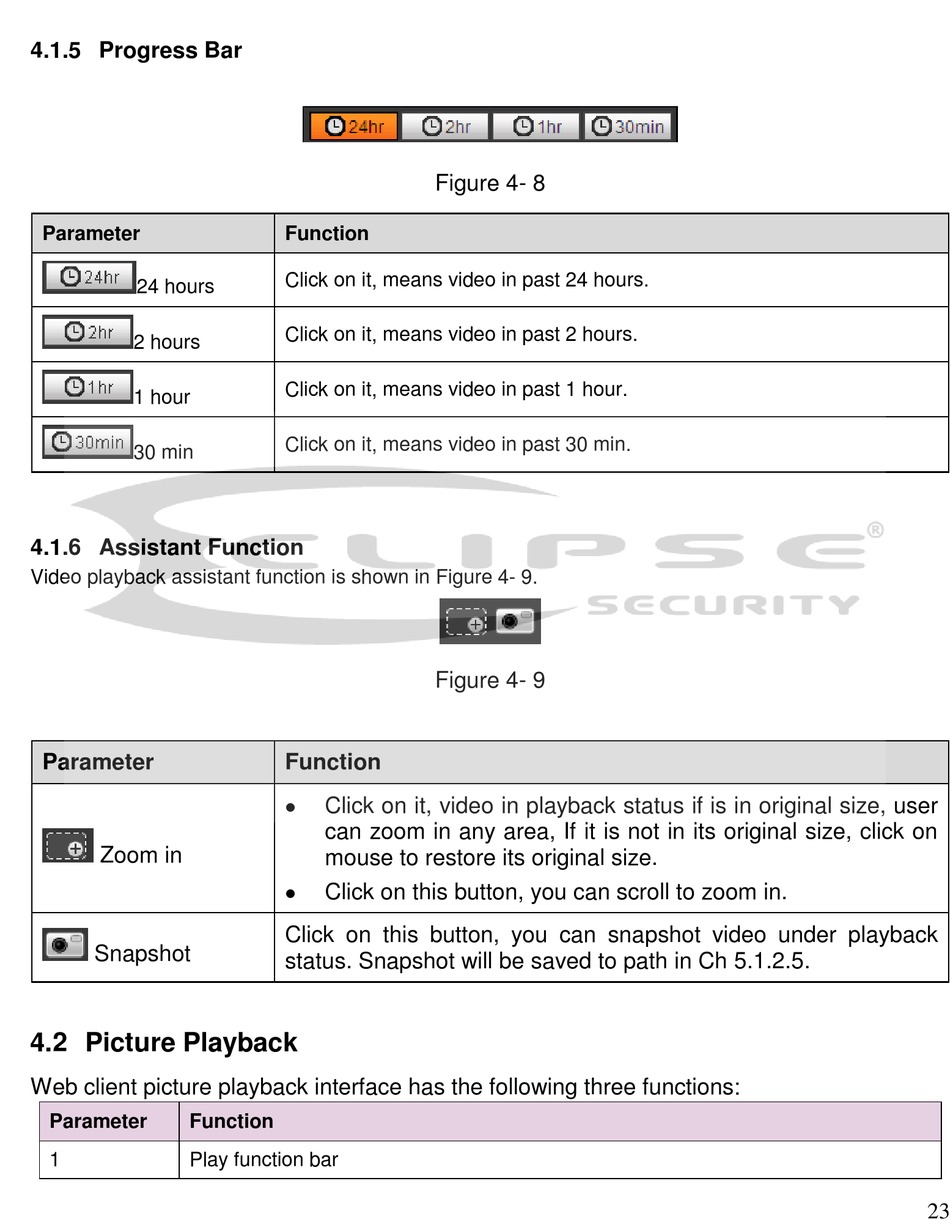

4.1.5 Progress Bar

Parameter
24 hours
2 hours
1 hour
30 min

4.1.6 Assistant Function

Video playback assistant function is shown in Figure 4- 9.
Parameter
Zoom in
Snapshot

4.2 Picture Playback

Web client picture playback interface has the following three functions:
Parameter Function
1 Play function bar
Figure 4- 8
Function
Click on it, means video in past 24 hours.
Click on it, means video in past 2 hours.
Click on it, means video in past 1 hour.
Click on it, means video in past 30 min.
Figure 4- 9
Function
Click on it, video in playback status if is in original size, user

can zoom in any area, If it is not in its original size, click on
mouse to restore its original size.
Click on this button, you can scroll to zoom in.

Click on this button, you can snapshot video under playback
status. Snapshot will be saved to path in Ch 5.1.2.5.
