Storage Management; Schedule - Eclipse Security ECL-IP3D50MV Manual

5.4 Storage Management

5.4.1

Schedule

Before schedule setup, user must set record mode is auto or manual.
Note:
If record mode in record control is off, then device will not snapshot according to schedule.
5.4.1.1 Record Schedule
Record schedule steps:
Step 1. Click on Record Schedule, see Figure 5- 50.
Step 2. From Monday to Sunday select record time, click on setup on the right, see Figure 5- 51.

Set period according to actual need. There are six periods available each day.

By checking or unchecking, you can add or delete three types of record schedule: General, Motion,
and Alarm.

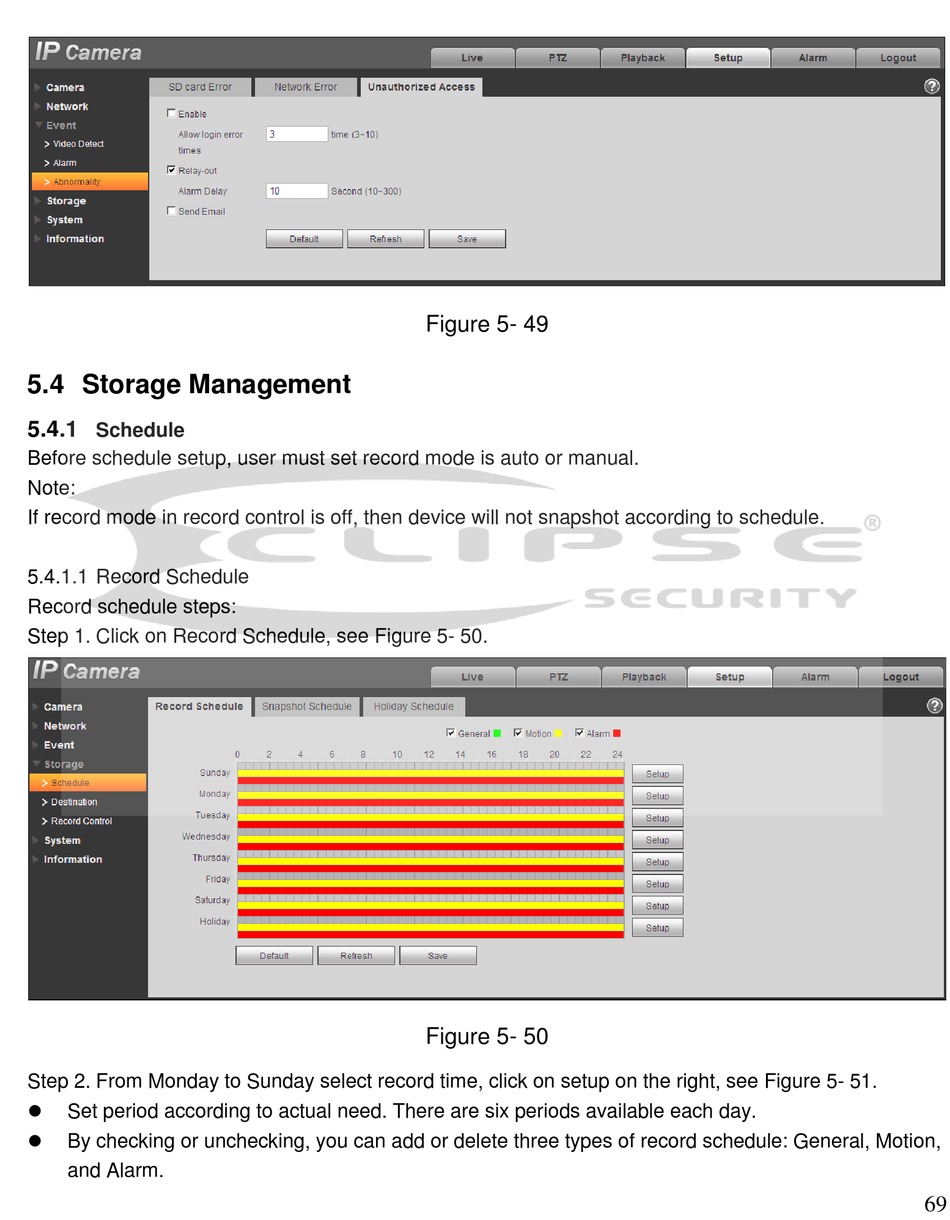

Figure 5- 49
Figure 5- 50
69
