System Menu; Video Window Function Option - Eclipse Security ECL-IP3D50MV Manual

Parameter
Main stream
Sub (Extra)
stream 1
Sub (Extra)
stream 2
Protocol

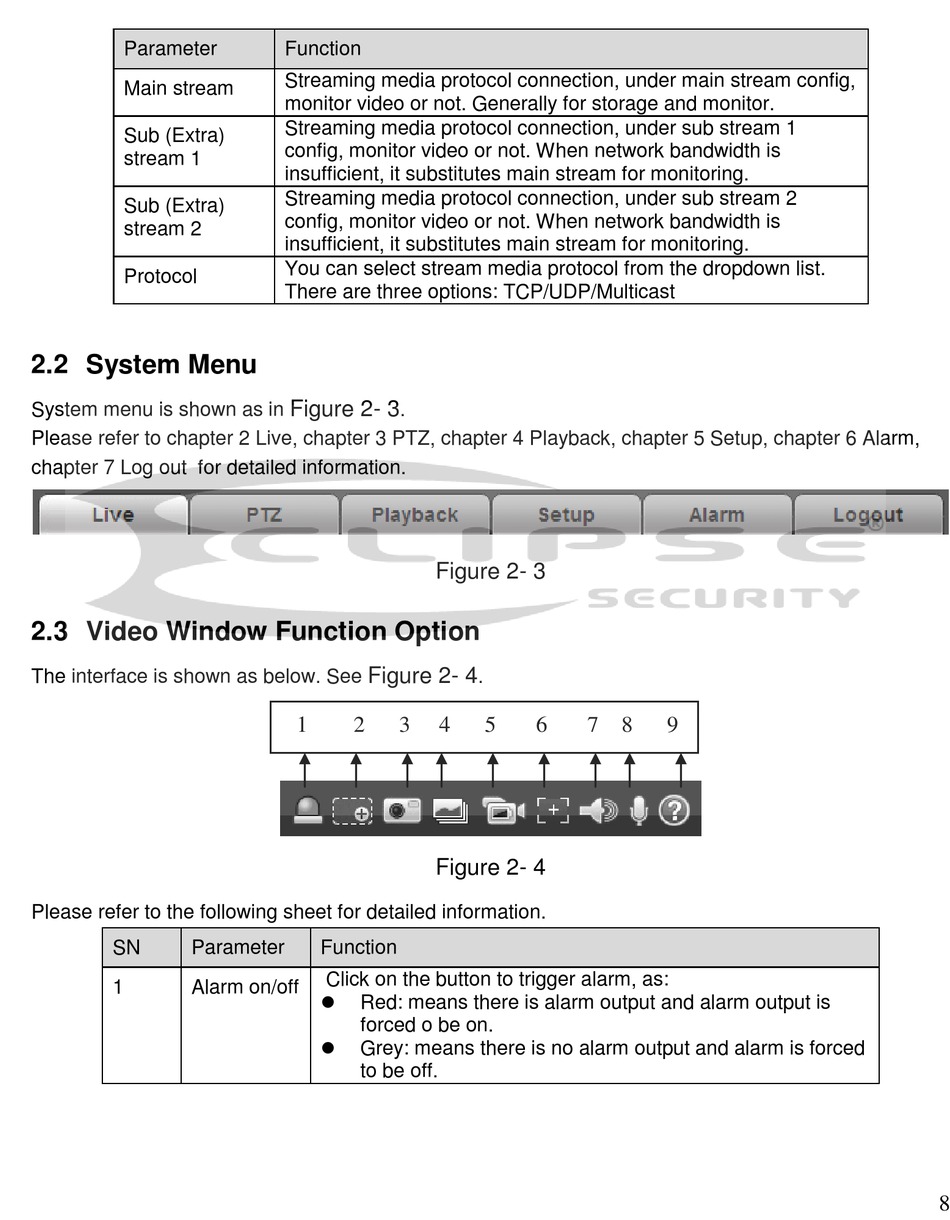

2.2 System Menu

System menu is shown as in
Please refer to chapter 2 Live, chapter 3 PTZ, chapter 4 Playback, chapter 5 Setup, chapter 6 Alarm,
chapter 7 Log out for detailed information.

2.3 Video Window Function Option

The interface is shown as below. See
Please refer to the following sheet for detailed information.
SN Parameter
1 Alarm on/off
Function
Streaming media protocol connection, under main stream config,
monitor video or not. Generally for storage and monitor.
Streaming media protocol connection, under sub stream 1
config, monitor video or not. When network bandwidth is
insufficient, it substitutes main stream for monitoring.
Streaming media protocol connection, under sub stream 2
config, monitor video or not. When network bandwidth is
insufficient, it substitutes main stream for monitoring.
You can select stream media protocol from the dropdown list.
There are three options: TCP/UDP/Multicast
Figure 2- 3
.
Figure 2- 3
Figure 2- 4
1 2 3 4
Figure 2- 4
Function
Click on the button to trigger alarm, as:

Red: means there is alarm output and alarm output is
forced o be on.

Grey: means there is no alarm output and alarm is forced
to be off.
.
5 6 7 8 9
8
