Finishing the Fan
Installation
WARNING
MAKE SURE THE TAB O N T H E MOUNTING
BRACKET PROPERLY SITS IN THE GROOVE IN
THE HANGER BALL BEFORE ATTACHING THE
CANOPY TO THE BRACKET BY TURNING THE
HOUSING UNTIL IT DROPS INTO PLACE.
Make sure connections are neatly tucked into the
1.
ceiling outlet box. (Figure 14)
Slide the canopy up to the mounting bracket and
2.
place the key holes on the canopy over the loose
canopy mounting screws on the mounting
bracket. Turn the canopy clockwise until it locks
in place at the narrow section of the key holes,
and tighten the two canopy mounting screws.
8
Outlet
box
Mounting
screw
NOTE
ADJUST THE CANOPY MOUNTING SCREWS AS
NECESSARY UNTIL THE CANOPY AND CANOPY
BOTTOM COVER ARE SNUG.
Ceiling
mounting
Attach the canopy bottom cover to the canopy by
bracket
inserting the screw heads into the key slots in the
Mounting
canopy bottom cover and rotating it clockwise.
screw
Canopy
Canopy
Bottom
Cover
Mounting
screw

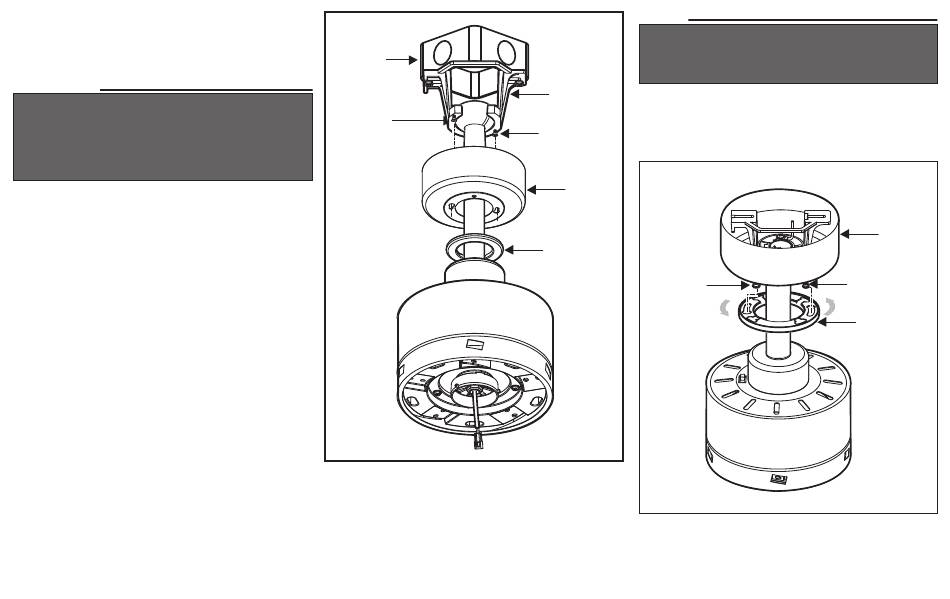

Figure 14
Canopy
Mounting
screw
Canopy
Bottom
Cover
Figure 15
