Making the Electrical
Connections
NOTE
THE FREQUENCIES ON YOUR RECEIVER AND
REMOTE CONTROL HAVE BEEN PRESET AT THE
FACTORY. BEFORE INSTALLING THE RECEIVER,
MAKE SURE THE DIP SWITCHES ON THE
RECEIVER AND REMOTE CONTROL ARE SET TO
THE SAME FREQUENCY. THE DIP SWITCHES ON
THE REMOTE CONTROL ARE LOCATED INSIDE
THE BATTERY COMPARTMENT.
NOTE
THE BATTERY WILL WEAKEN WITH AGE AND
SHOULD BE REPLACED BEFORE LEAKING TAKES
PLACE AS THIS WILL DAMAGE THE REMOTE
CONTROL. DISPOSE OF THE USED BATTERY
PROPERLY AND KEEP THE BATTERY OUT OF
THE REACH OF CHILDREN.
Setting the Code on the Remote: (Figure 11)
1. Remove the battery cover on the back of the
remote control by pressing firmly on the arrow
and sliding the cover off.
2. Slide the code switches to your choice of either
up or down. The factory setting is up.
Install one 23A 12V batteries (included).
3.
6
4. Replace the battery cover on the remote
control.
Setting the Code on the Receiver: (Figure 11)
Slide the code switches on the receiver to the
5.
same positions as set on the remote control.
Remote control
Receiver
6. After checking the switches, insert the receiver
into the mounting bracket with the flat side of
the receiver facing the ceiling. (Figure 12)
Receiver

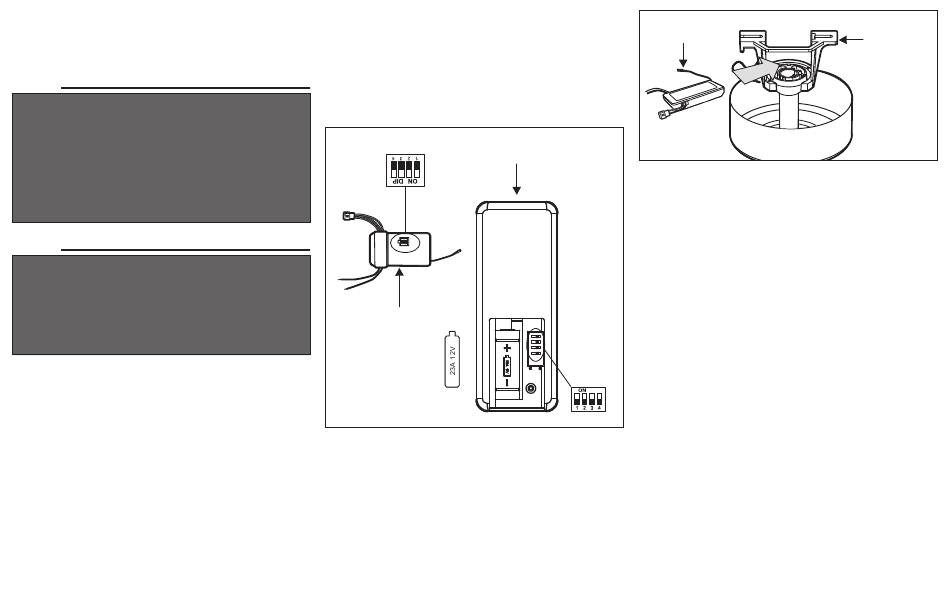

Figure 11
Ceiling
Mounting
Bracket
Figure 12
