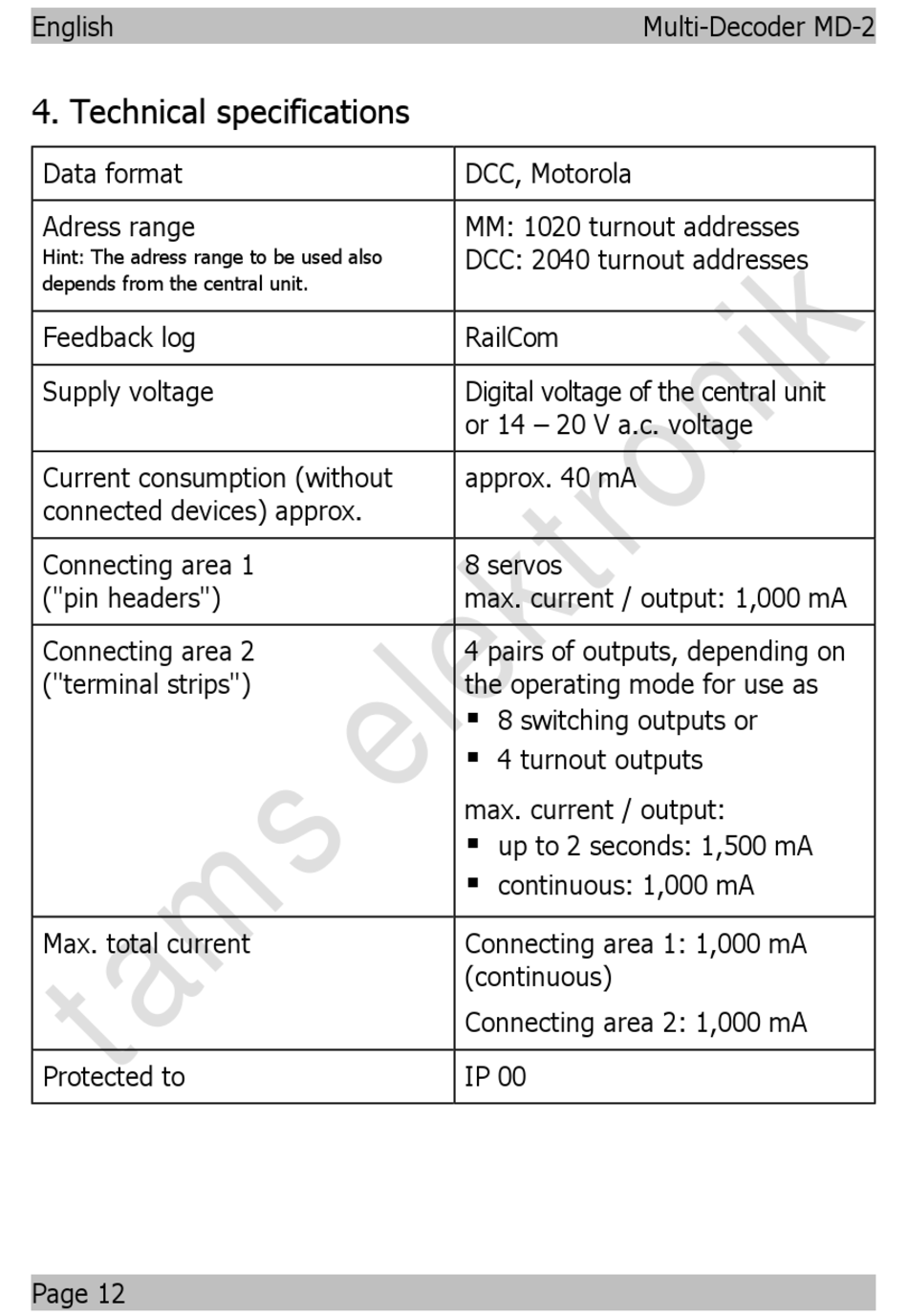

4. Technical specifications

Data format
Adress range
Hint: The adress range to be used also
depends from the central unit.
Feedback log
Supply voltage
Current consumption (without
connected devices) approx.
Connecting area 1
("pin headers")
Connecting area 2
("terminal strips")
Max. total current
Protected to
Page 12
DCC, Motorola
MM: 1020 turnout addresses
DCC: 2040 turnout addresses
RailCom
Digital voltage of the central unit
or 14 – 20 V a.c. voltage
approx. 40 mA
8 servos
max. current / output: 1,000 mA
4 pairs of outputs, depending on
the operating mode for use as

8 switching outputs or

4 turnout outputs
max. current / output:

up to 2 seconds: 1,500 mA

continuous: 1,000 mA
Connecting area 1: 1,000 mA
(continuous)
Connecting area 2: 1,000 mA
IP 00
