5.3. Connecting accessories (→ Operating mode 1)

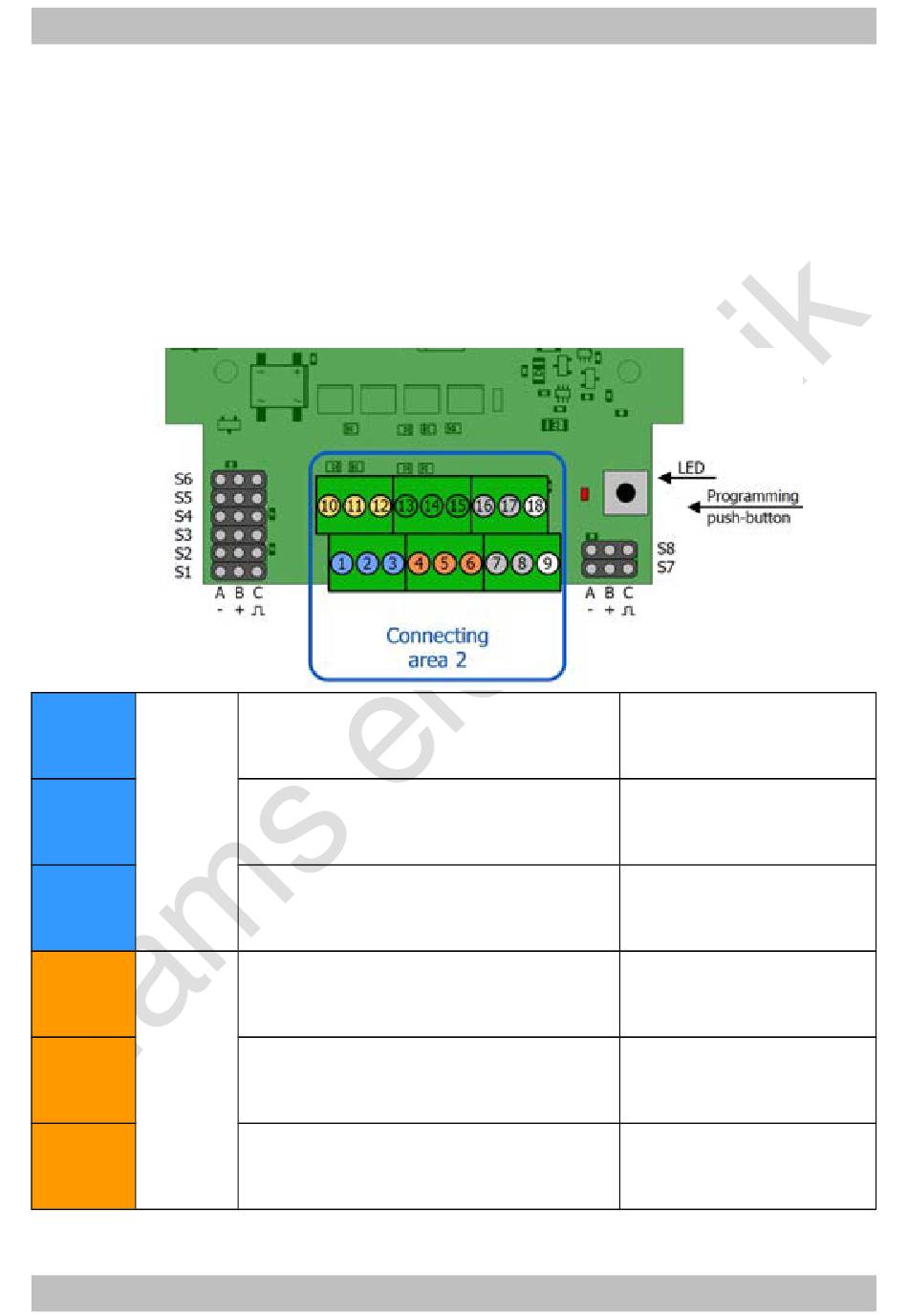

The connecting area 2 is equipped with terminal strips to plug in and
screw on the connecting wires for turnouts and other (solenoid)
accessories. You can connect to each of the four output pairs either one
solenoid accessory or two other accessories. A mixed use as turnout
and switching decoder is possible.
1 Output
pair 1
(T1)
2
3
4 Output
pair 3
(T3)
5
6
Solenoid accessory / turnout 1
or switching contact 1
Return conductor for
T(urnout)1
Solenoid accessory / turnout 1
or switching contact 2
Solenoid accessory / turnout 3
or switching contact 5
Return conductor for
T(urnout)3
Solenoid accessory / turnout 3
or switching contact 6
English
Turnout 1
"diverging" (1r)
Turnout 1
"straight" (1g)
Turnout 3
"diverging" (3r)
Turnout 3
"straight" (3g)
