Multi-Decoder MD-2

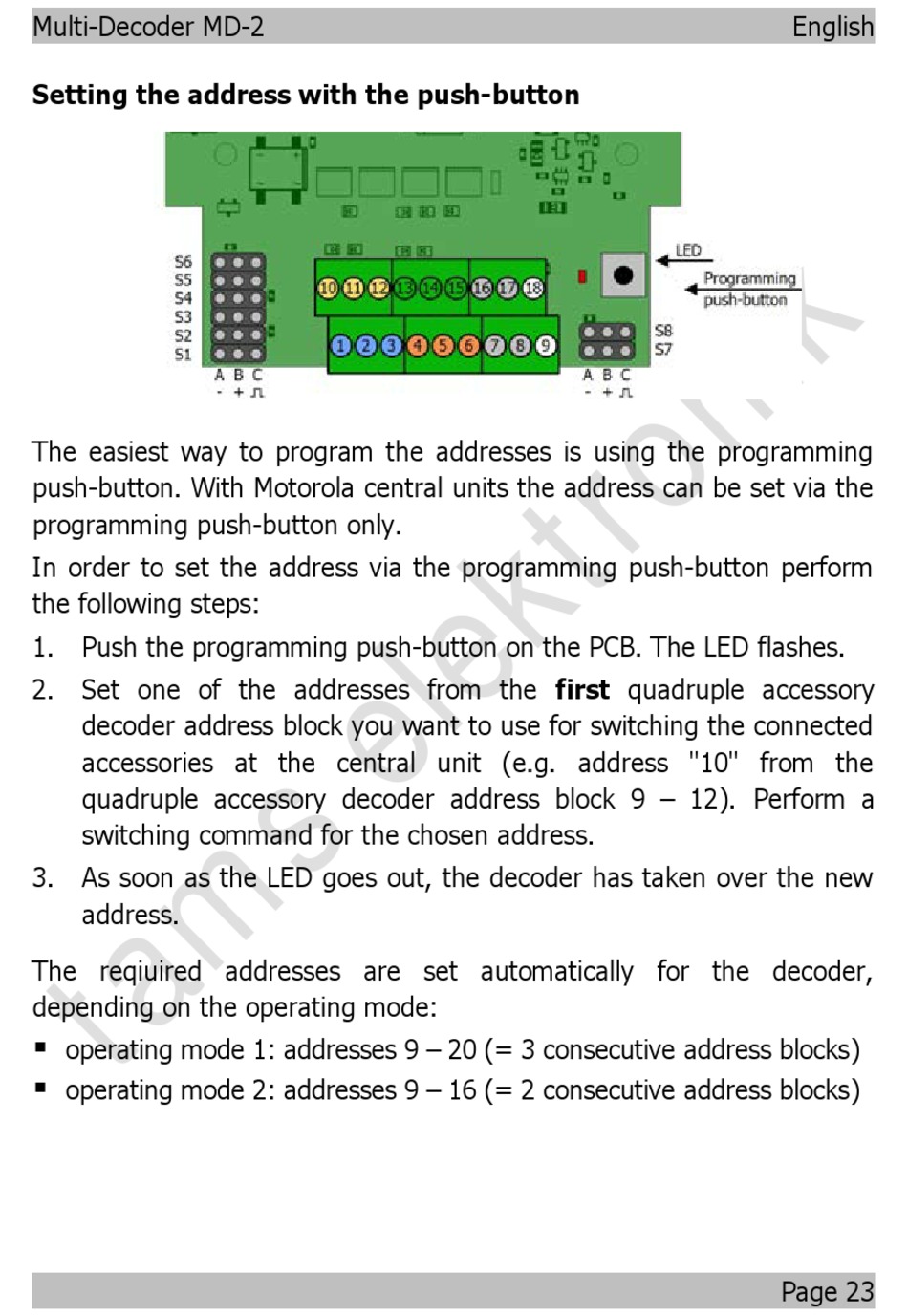

Setting the address with the push-button
The easiest way to program the addresses is using the programming
push-button. With Motorola central units the address can be set via the
programming push-button only.
In order to set the address via the programming push-button perform
the following steps:
1. Push the programming push-button on the PCB. The LED flashes.
2. Set one of the addresses from the first quadruple accessory
decoder address block you want to use for switching the connected
accessories at the central unit (e.g. address "10" from the
quadruple accessory decoder address block 9 – 12). Perform a
switching command for the chosen address.
3. As soon as the LED goes out, the decoder has taken over the new
address.
The reqiuired addresses are set automatically for the decoder,
depending on the operating mode:

operating mode 1: addresses 9 – 20 (= 3 consecutive address blocks)

operating mode 2: addresses 9 – 16 (= 2 consecutive address blocks)
