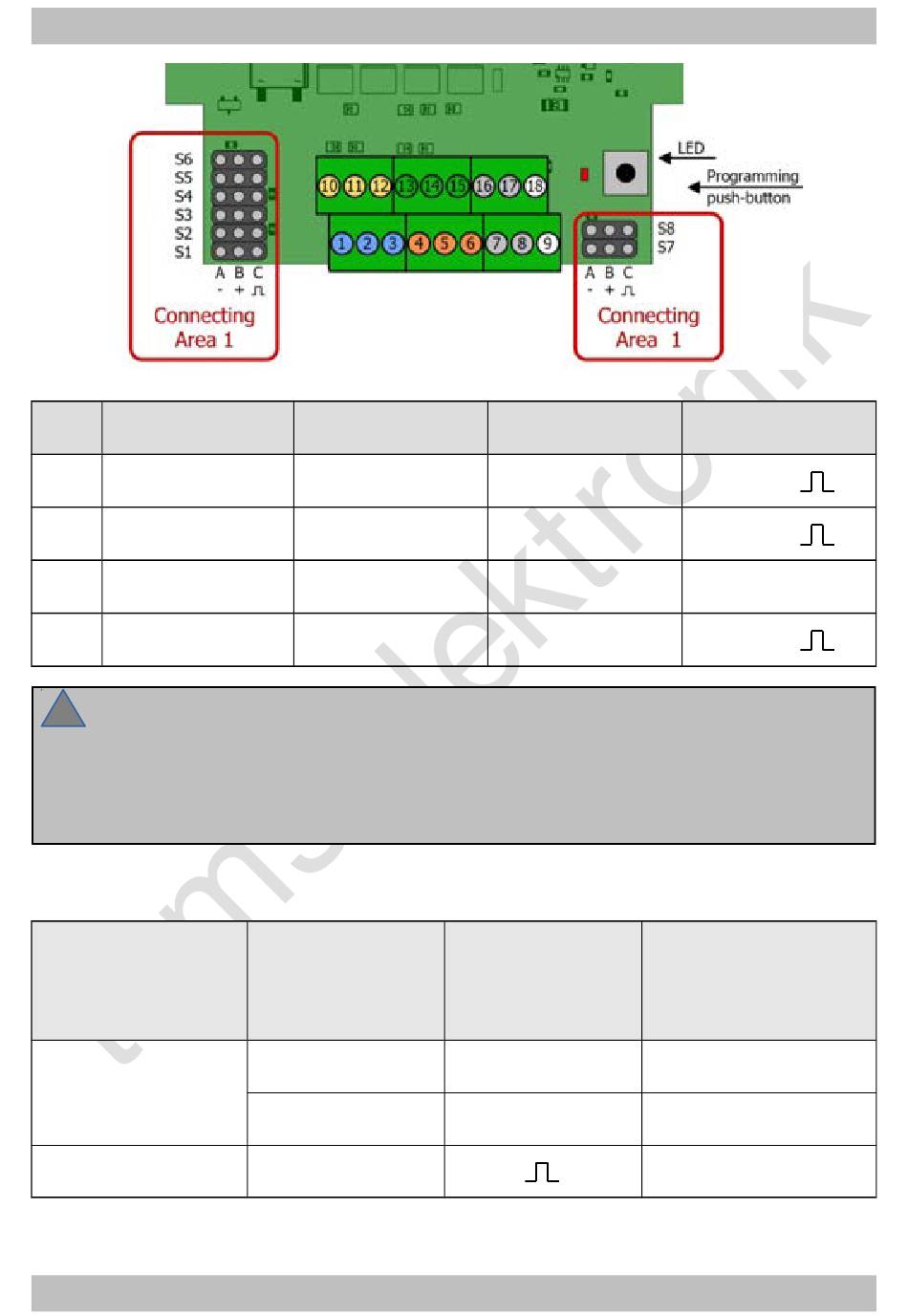

tams elektronik Multi-Decoder MD-2 Manual page 15

Multi-Decoder MD-2
S1 servo 1
S2 servo 2
... ...
S8 servo 8
Caution: The maximum current for connecting area 1 as well as
!
the maximum current per servo connection is 1,000 mA (see section 4.
"Technical specifications"). With a too high current consumption of the
connected accessories the decoder switches off automatically.
INFO: servo connections
Connection
Voltage supply
Impulse (signal)
A
GND (-)
GND (-)
...
GND (-)
Short term
"GND"
"VCC"
"PW"
B
VCC (+)
VCC (+)
...
VCC (+)
Identification
symbol
-
+
English
C
signal
signal
...
signal
Colour of
connecting wire
(deviations possible)
black or brown
red
white or orange
Page 15
