Multi-Decoder MD-2

5.5. Connection examples

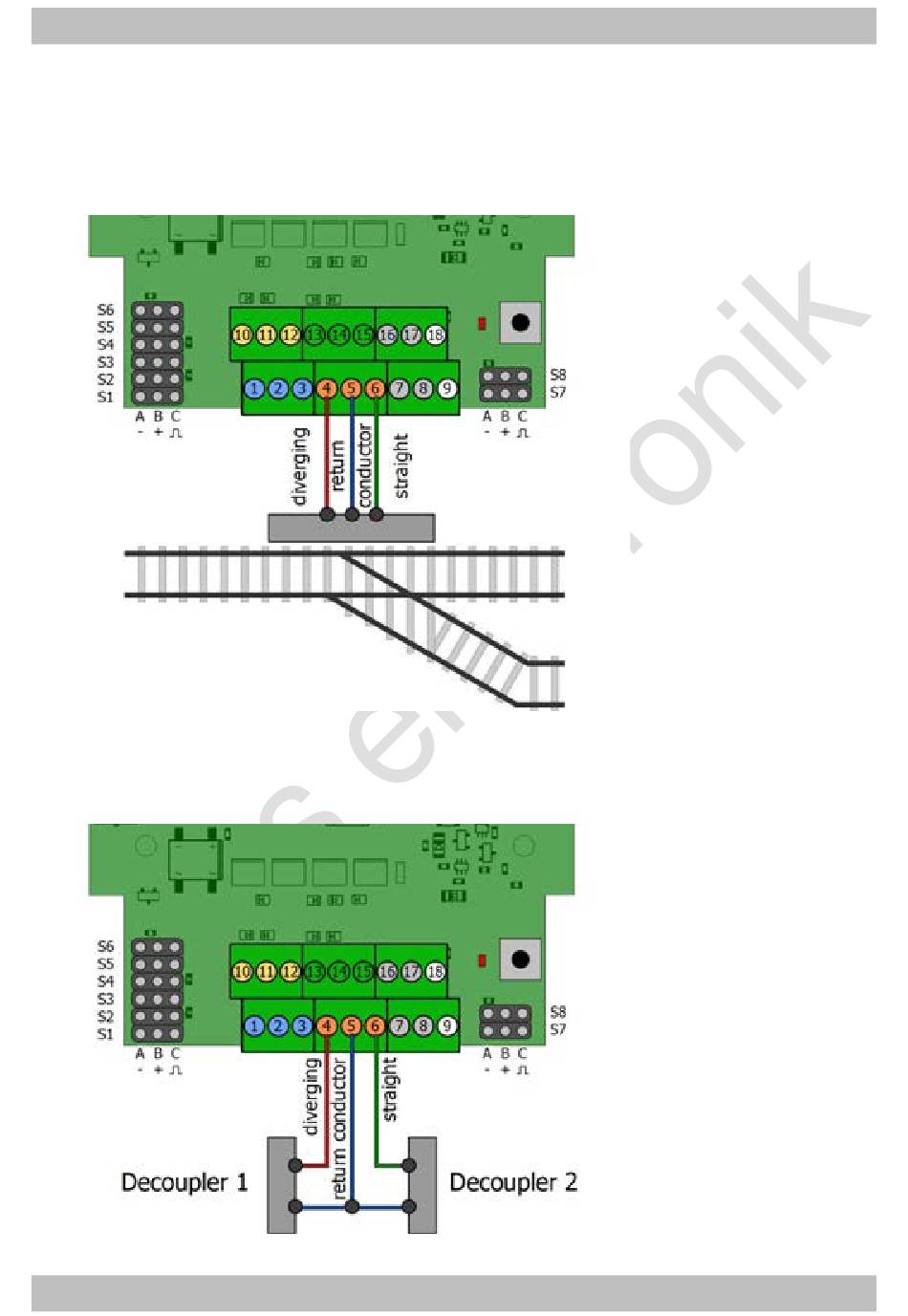

Connecting coil driven turnouts
Connecting decouplers
Connection of turnouts
to terminals 4 to 6
("turnout 4")
Connection of turnouts
to terminals 4 to 6
("turnout 4")
English
Page 21
