Appendix A: Expansion Bus

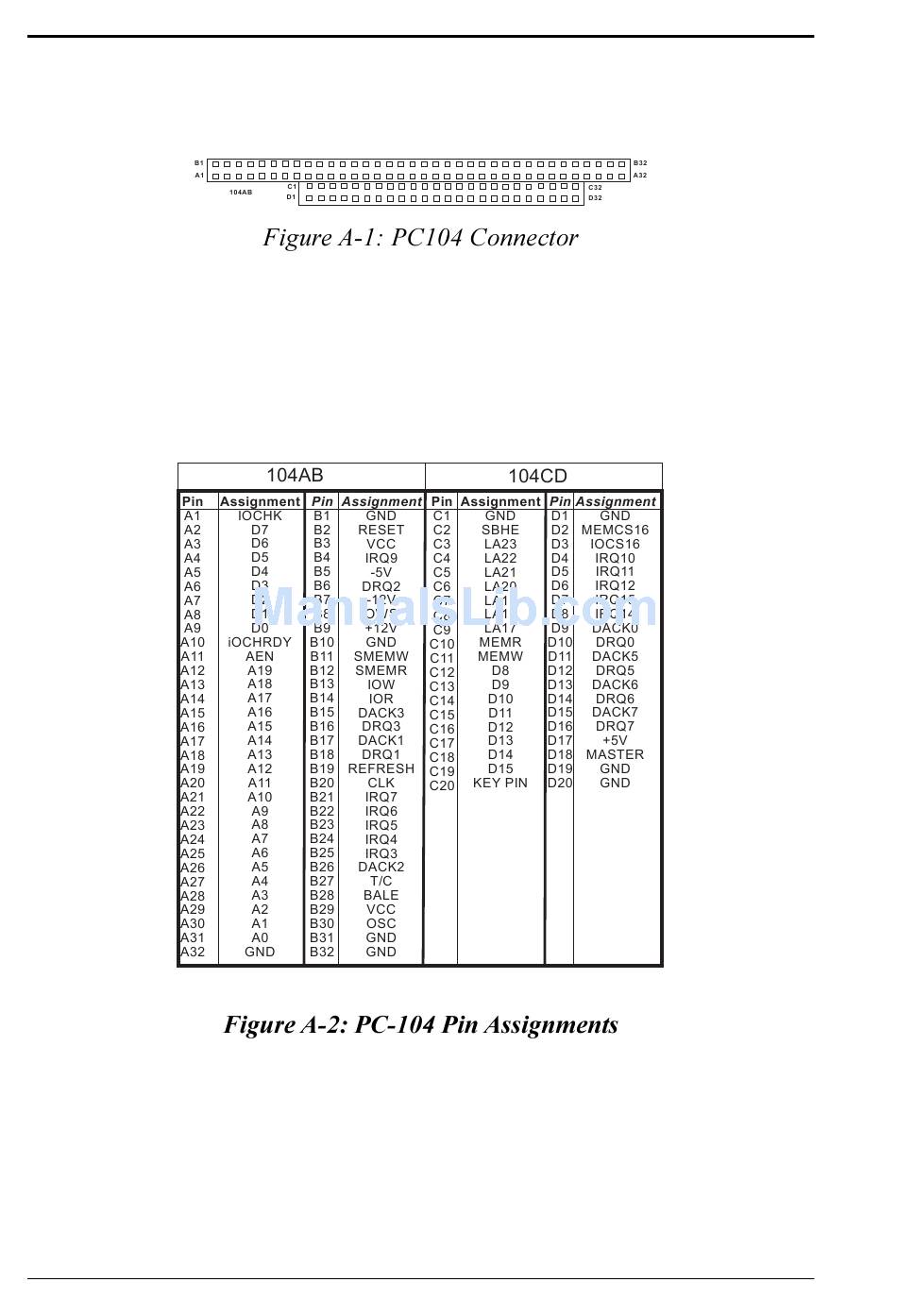

PC-104 Connector Pin Assignment
104AB, 104CD : PC-104 Connector
The PC-104 can support multiple PC-104 modules. This card
has two connectors : one (104AB) consists of 64 pins; the other
one (104CD) consists of 40 pins, both are dual-in-line headers.
The pin assignments for connectors 104AB & 104CD are as
follows:
78
CommPlete 4000 Server SBC, Model IPC-623C
