- Page 1 QuickCarrier™ USB-E MT100UCC-C2 Developer Guide...
- Page 2 Legal Notices The MultiTech products are not designed, manufactured or intended for use, and should not be used, or sold or re-sold for use, in connection with applications requiring fail-safe performance or in applications where the failure of the products would reasonably be expected to result in personal injury or death, significant property damage, or serious physical or environmental damage.
-
Page 3: Table Of Contents
CONTENTS Contents Chapter 1 – Product Overview ..........................5 About the QuickCarrier USB-E MT100UCC-C2 ......................5 Documentation ................................5 Selecting the Correct Model and Accessories....................... 5 Chapter 2 – Design Considerations........................... 6 USB Design ................................... 6 Noise Suppression Design ............................. 6 Electromagnetic Interference ............................ - Page 4 47 CFR Part 15 Regulation Class B Devices ......................... 17 Industry Canada Class B Notice........................... 17 Restriction of the Use of Hazardous Substances (RoHS) .................... 17 Chapter 7 – MT100UCC-C2 Model Overview ......................19 Specifications ................................19 Mechanical drawing ..............................21 Power Draw MT100UCC-C2 ............................
-

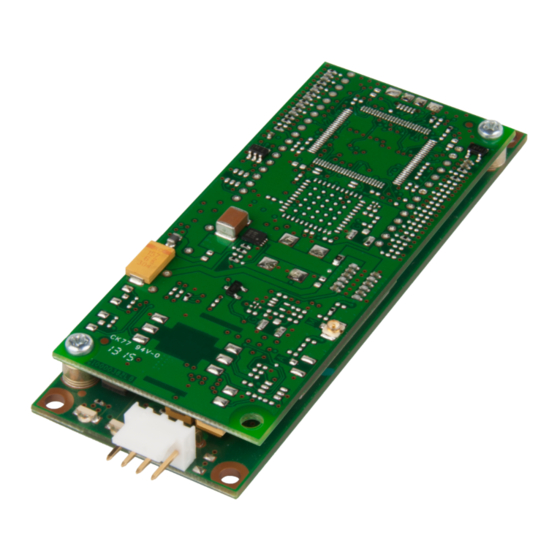

Page 5: Chapter 1 - Product Overview
USB port and can be secured using the four mounting holes located at the corners of the printed circuit board. Documentation The following table describes additional documentation for your device. The guides are available on the Multi-Tech support web site at www.multitech.com/man.go. Guide Description Part Number MT100UCC-C2 Developer Guide This guide. -
Page 6: Chapter 2 - Design Considerations
Chapter 2 – Design Considerations USB Design MultiTech recommends that you review Intel's High Speed USB Platform Design Guidelines for information about USB signal routing, impedance, and layer stacking. Also: Shield USB cables with twisted pairs (especially those containing D+/D-). -
Page 7: Electrostatic Discharge Control
Take precautions to avoid exposure to electrostatic discharge during handling. MultiTech uses and recommends that others use anti-static boxes that create a faraday cage (packaging designed to exclude electromagnetic fields). MultiTech recommends that you use our packaging when returning a product and when you ship your products to your customers. -
Page 8: Chapter 3 - Cellular Information
16 inches (40 cm) SMA-to-UFL and RSMA-to-UFL Coaxial Cables Your product includes the following cables: Two SMA-to-UFL cables. One RSMA-to-UFL cable for use with products that include a GPS receiver. RSMA-to-MMCX for socket modem, if needed. QuickCarrier™ USB-E MT100UCC-C2 Developer Guide... -
Page 9: Coaxial Cable Specifications
Some Multi-Tech products have been pre-configured to operate on a specific cellular network. However, before you can begin to use the modem, you must set up a cellular data account with your cellular network provider. Refer to Multi-Tech’s Cellular Activation Web site http://www.multitech.com/activation.go for information on activating your cellular modem. -
Page 10: Notice For Devices That Use Aeris Radios
Model Identification The Multi-Tech model identification allows the carrier to verify the modem as one of its approved models. This information is located on the modem's label. Modem Label Example Note: The label is shown larger than actual size. QuickCarrier™ USB-E MT100UCC-C2 Developer Guide... -
Page 11: Quickcarrier Usb-E Label
CELLULAR INFORMATION 1 Multi-Tech model information 2 MEID (C2) for the attached modem QuickCarrier USB-E Label Note: The label is shown larger than actual size. 1 Multi-Tech model information 2 Multi-Tech ordering part number QuickCarrier™ USB-E MT100UCC-C2 Developer Guide... - Page 12 CELLULAR INFORMATION 3 MEID (C2) for the attached modem QuickCarrier™ USB-E MT100UCC-C2 Developer Guide...
-
Page 13: Chapter 4 - Oem Integration
FCC Definitions Portable: (§2.1093) — A portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. QuickCarrier™ USB-E MT100UCC-C2 Developer Guide... -
Page 14: Host Labeling
This device contains FCC ID: {Add the FCC ID of the specific device} This device contains equipment certified under IC ID: {Add the IC ID of the specific device} For labeling examples, see Cellular Approvals and Labeling Requirements. QuickCarrier™ USB-E MT100UCC-C2 Developer Guide... -
Page 15: Chapter 5 - Safety Warnings
Keep the device on the opposite side of the body from the pacemaker to add extra distance between the pacemaker and the device. Avoid placing a turned-on device next to the pacemaker (for example, don’t carry the device in a shirt or jacket pocket directly over the pacemaker). QuickCarrier™ USB-E MT100UCC-C2 Developer Guide... -
Page 16: Vehicle Safety
Do not place the device alongside computer discs, credit or travel cards, or other magnetic media. The information contained on discs or cards may be affected by the device. Using accessories, such as antennas, that MultiTech has not authorized or that are not compliant with MultiTech's accessory specifications may invalidate the warranty. -
Page 17: Chapter 6 - Regulatory Compliance Statements
Restriction of the Use of Hazardous Substances (RoHS) Multi-Tech Systems, Inc. Certificate of Compliance 2011/65/EU QuickCarrier™ USB-E MT100UCC-C2 Developer Guide... - Page 18 2011/65/EU of the European Parliament (Restriction of the use of certain Hazardous Substances in electrical and electronic equipment - RoHS). These MultiTech products do not contain the following banned chemicals Lead, [Pb] < 1000 PPM Mercury, [Hg] <...
-
Page 19: Chapter 7 - Mt100Ucc-C2 Model Overview
MT100UCC-C2 MODEL OVERVIEW Chapter 7 – MT100UCC-C2 Model Overview Specifications MT100UCC-C2 Category Description General Performance 2G CDMA 1xRTT Frequency Dual band 800/1900 MHz Bands Speed Data Speed Up to 153 Kbps downlink and uplink Interface USB 2.0 full speed compliant... - Page 20 You may need to reduce the temperature range if airflow is limited around the cellular radio. Test and verify the temperature range if the QuickCarrier USB-E is designed into an enclosed chassis. QuickCarrier™ USB-E MT100UCC-C2 Developer Guide...
-
Page 21: Mechanical Drawing
MT100UCC-C2 MODEL OVERVIEW Mechanical drawing QuickCarrier™ USB-E MT100UCC-C2 Developer Guide... -
Page 22: Power Draw Mt100Ucc-C2
Issue the AT#SHDN command. Wait 30 seconds. Power off or disconnect power. Pinout Specifications Pins Signal Name Logic Level Voltage Description JP2-1 DC input power JP2-2 USB DN USB data JP2-3 USB DP USB data JP2-4 Ground QuickCarrier™ USB-E MT100UCC-C2 Developer Guide... -
Page 23: Chapter 8 - Application Notes
<2 Typical Radiated Gain 0 dBi in at least one direction 0 dBi in at least one direction Output Power .25W in CDMA/EVDO .25W in CDMA/EVDO RF Performances All values indicated are conducted. Receiver Features QuickCarrier™ USB-E MT100UCC-C2 Developer Guide... - Page 24 Transmitter Features Category Description Maximum output power (CDMA 1x RTT +24 dBm ± 1 dBm & EV-DO 1x Rev 0/Rev A) RF Connection and Antenna The RF connector on the QuickCarrier is a UFL standard type. QuickCarrier™ USB-E MT100UCC-C2 Developer Guide...
-
Page 25: Chapter 9 - Configuring And Communicating With Your Device
To send the modem AT Commands from terminal emulation software, set the software to match the modem’s default data format, which is: Speed: 115,200 bps Data bits: 8 Parity: none Stop bit: 1 Flow control: hardware QuickCarrier™ USB-E MT100UCC-C2 Developer Guide... -
Page 26: Verifying Signal Strength
1.6% to 3.2% 3.2% to 6.4% 6.4% to 12.8% More than 12.8% Not known or not detectable Note: Signal strength of 10 or higher is needed for successful packet data sessions. Example A example response to AT+CSQ: QuickCarrier™ USB-E MT100UCC-C2 Developer Guide... -
Page 27: Checking Network Registration
The device responds with OK. You can now send or receive data without entering additional commands. Closing the Socket and the Connection To close the socket: Enter the escape sequence: To close Socket 1, enter: AT#SH=1 The device responds with OK. QuickCarrier™ USB-E MT100UCC-C2 Developer Guide... -
Page 28: Configuring Device As Udp Listener To Accept Udp Client Connections
The device responds with and unsolicited indication that a host is trying to connect to connection ID 1 on port 7000. SRING: 1 Accept incoming connection ID 1 Enter: AT#SA=1 The device indicates a client successfully established a listener connection. CONNECT QuickCarrier™ USB-E MT100UCC-C2 Developer Guide... -
Page 29: Configuring Device As Udp Client To Connect To Udp Server
AT+CREG? Should return: +CREG: 0,1 Configure socket parameters Enter: AT#SCFG=1,1,300,240,600,50 Activate context one Enter: AT#SGACT=1,1 Create UDP connection to Server port Enter: AT#SD=1,1,####,"###.##.###.##" where #### is the server port and ###.##.###.## is the IP number. QuickCarrier™ USB-E MT100UCC-C2 Developer Guide... -
Page 30: Configuring Device As Udp Listener To Accept Udp Client Connections
Enter: AT#SCFG=1,1,300,240,600,50 Activate context one Enter: AT#SGACT=1,1 Set firewall rule to accept connections: AT#FRWL=1,"###.##.###.#","###.##.###.#" where ###.##.###.# represents the IP range. For example: AT#FRWL=1,"204.26.122.1","204.26.122.255" Set connection ID 1 for UDP listening mode on port 7000. Enter: QuickCarrier™ USB-E MT100UCC-C2 Developer Guide... -
Page 31: Transferring Ftp File To Ftp Server
XXX.APN.com is the APN your cellular provider assigned to your SIM card. Verify device is registered on the cellular network. Enter: AT+CREG? Should return: +CREG: 0,1 Activate context one Enter: AT#SGACT=1,1 Set FTP operations timeout to 10 seconds QuickCarrier™ USB-E MT100UCC-C2 Developer Guide... -
Page 32: Downloading File From Ftp Server
Check signal strength. Enter: AT+CSQ If using a SIM card, configure the APN. Enter: AT+CGDCONT=1,IP,"XXX.APN.com" where XXX.APN.com is the APN your cellular provider assigned to your SIM card. Verify device is registered on the cellular network. QuickCarrier™ USB-E MT100UCC-C2 Developer Guide... - Page 33 The data connection closes automatically when the file sending ends. Closing the FTP Data Connection When you finish sending the file: Close the FTP connection. Enter: AT#FTPCLOSE Close the PPP data connection. Enter: AT#SGACT=1,0 The device responds with OK. QuickCarrier™ USB-E MT100UCC-C2 Developer Guide...
-
Page 34: Reading, Writing And Deleting Messages
########## is the recipient's number. Send the message. Enter CTRL+Z. The device responds: +CMGS: # where # is the reference number of the sent message. For example: AT+CMGF=1 AT+CMGS="0001112222" > How are you? <CTRL+Z to send> +CMGS: 255 QuickCarrier™ USB-E MT100UCC-C2 Developer Guide... -
Page 35: Deleting Messages
Deletes all read messages and sent and unsent device-orginated messages. Leaves unread messages. Deletes all messages. For example: AT+CMGD=1 (delete message at index 1) AT+CMGD=2 (delete message at index 2 ) AT+CMGD=1,0 AT+CMGD=1,1 AT+CMGD=1,2 AT+CMGD=1,3 AT+CMGD=1,4 QuickCarrier™ USB-E MT100UCC-C2 Developer Guide...
