Award BIOS Setup

5-10 Integrated Peripherals

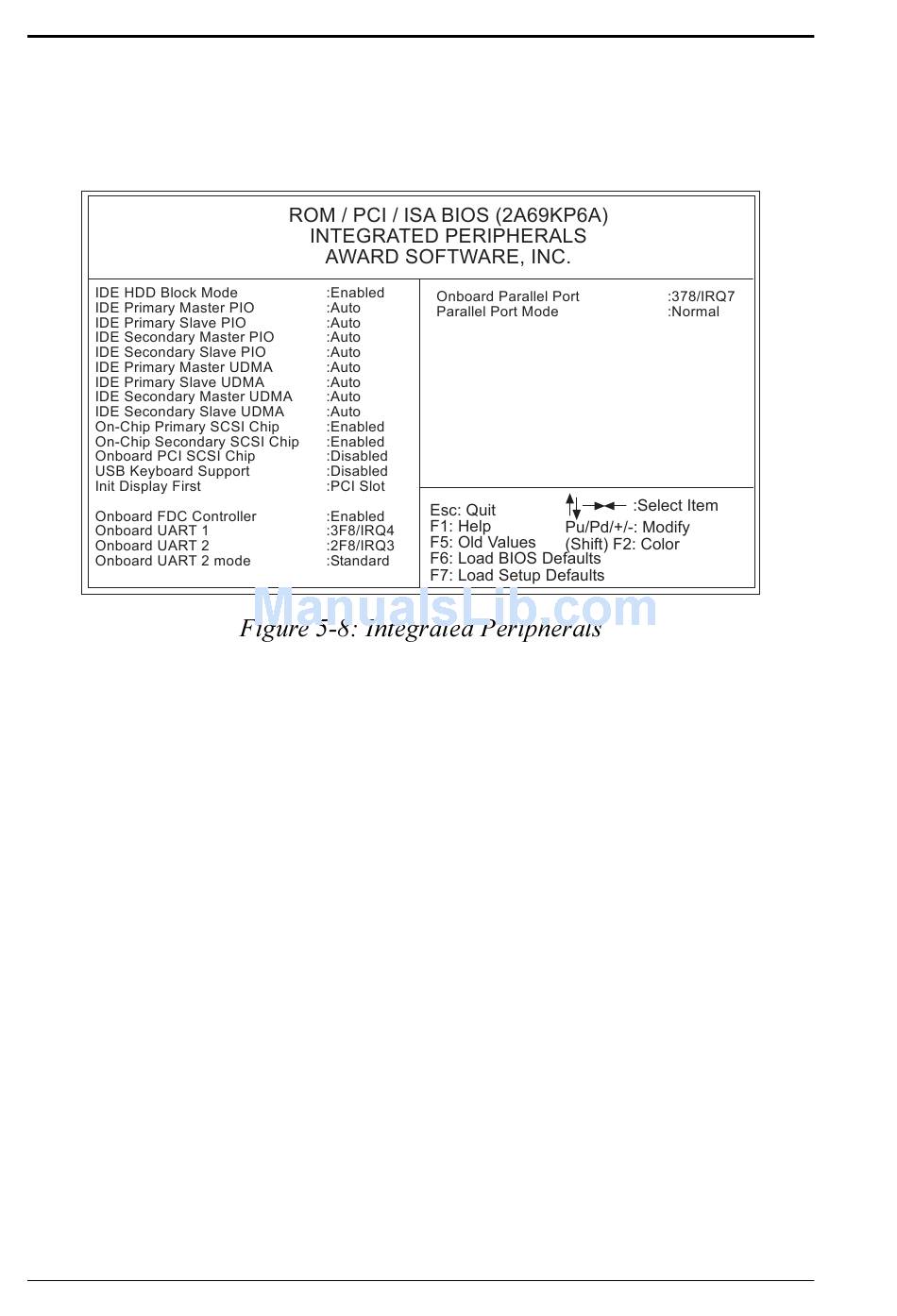

If you choose INTEGRATED PERIPHERALS from the CMOS

Setup Utility menu, this screen will appear:

By moving the cursor to the desired selection and pressing the

<F1> key, all options for the desired selection will be displayed.

Select the desired option for your selection. When all selections

are changed, press the <ESC> to return to the main menu.

IDE HDD Block Mode

Block mode is also called block transfer, multiple commands, or

multiple sector read/write. If your IDE hard drive supports block

mode (most new drives do), select Enabled for automatic

detection of the optimal number of block read/writes per sector

the drive can support.

IDE Primary Master/Slave PIO,

IDE Secondary Master/Slave PIO

The four IDE PIO fields allow you to set a PIO mode (0-4) for

each of the four IDE devices that the onboard IDE interface

supports. Modes 0 through 4 provide successively increased

performance. In Auto mode, the system automatically

determines the best mode for each device.
