Award BIOS Setup

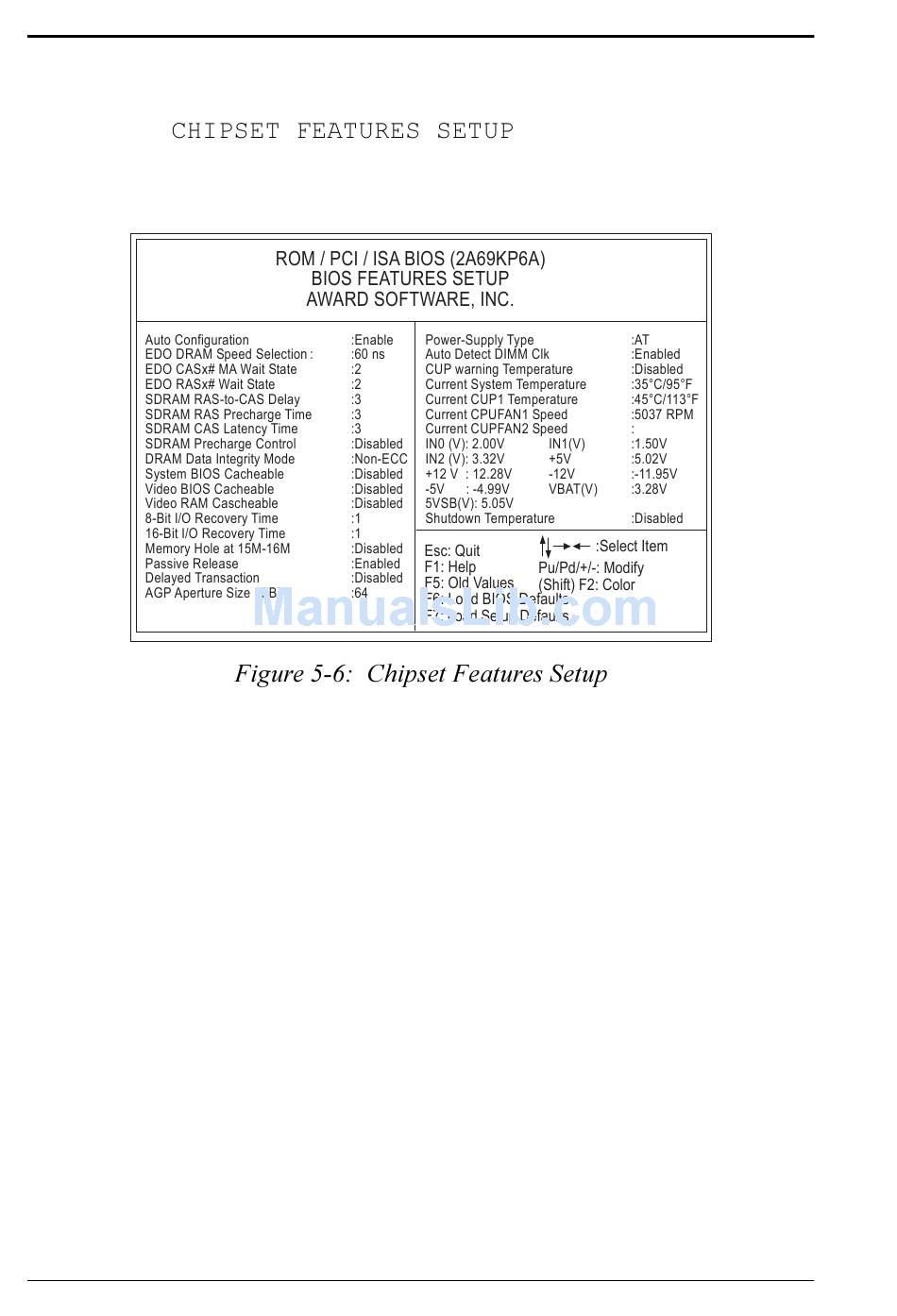

5-5 Chipset Features Setup

Choose
Utilities menu, the following screen appears.
The parameters in this screen are for system designers, service
personnel, and technically competent users only. Do not reset
these values unless you understand the consequences of your
changes.
Auto Configuration Function:
Auto Configuration selects predetermined optimal values of the
chipset parameters. When disabled, chipset parameters revert
to setup information stored in CMOS. Many fields in this screen
are not available when Auto Configuration is Enabled.
EDO DRAM Speed Selection
The DRAM timing is controlled by the DRAM Timing Registers.
The timings programmed into this register are dependent on the
system design. Slower rates may be required in certain system
designs to support loose layouts or slower memory.
60
CommPlete Series 4000 Server SBC, Model IPC-623C
