Hardware Configuration

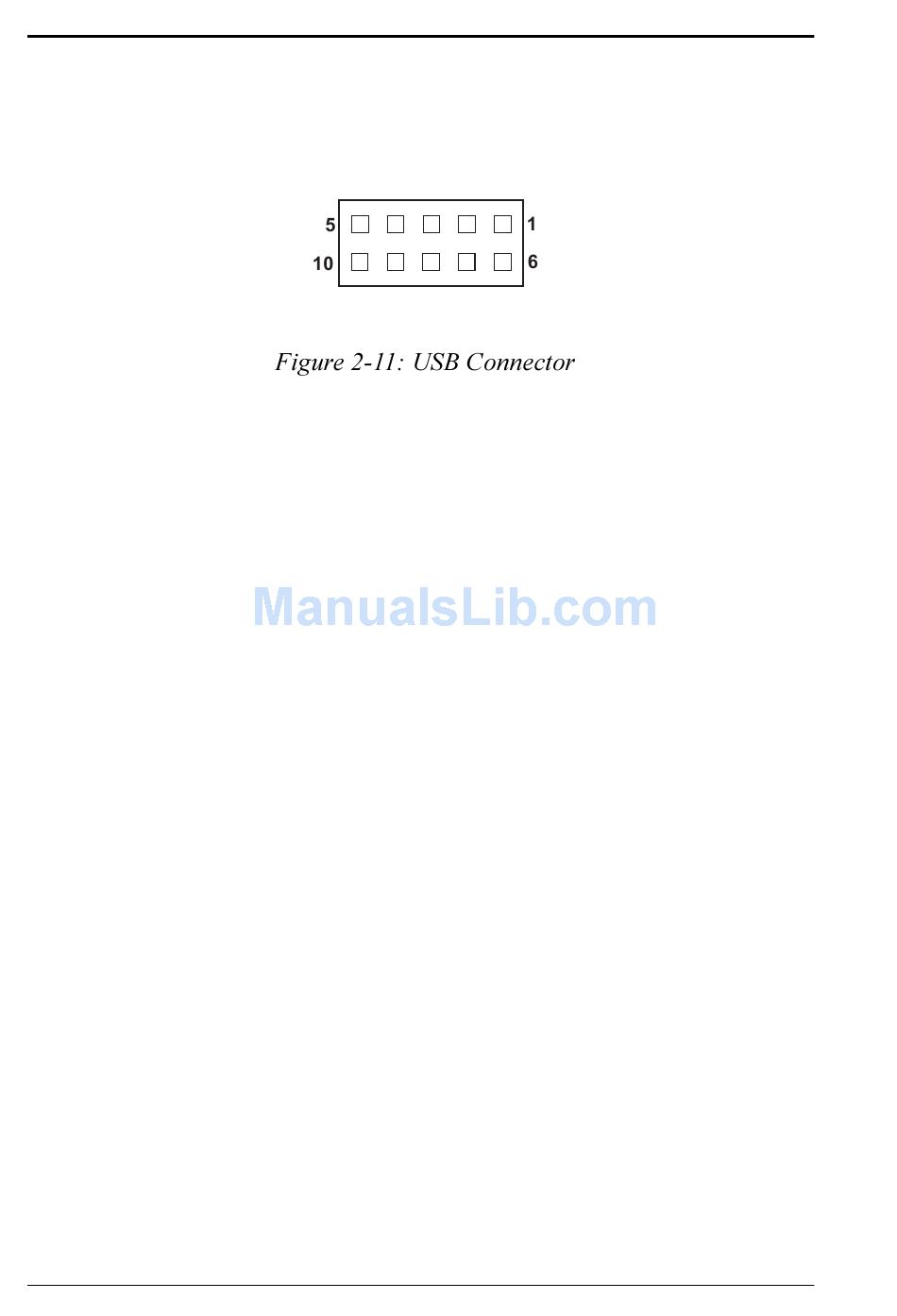

2-10 Universal Serial Bus Connector
USB: Universal Serial Bus Connector
USB connector supports two USB ports.
The pin assignments are as follows:
PIN
1
2
3
4
5
6
7
8
9
10
20
USB
SIGNAL FUNCTION
VCC
DATA0-
DATA0+
GND
CGND
VCC
DATA1-
DATA1+
GND
CGND
CommPlete 4000 Server SBC, Model IPC-623C
