Hardware Configuration

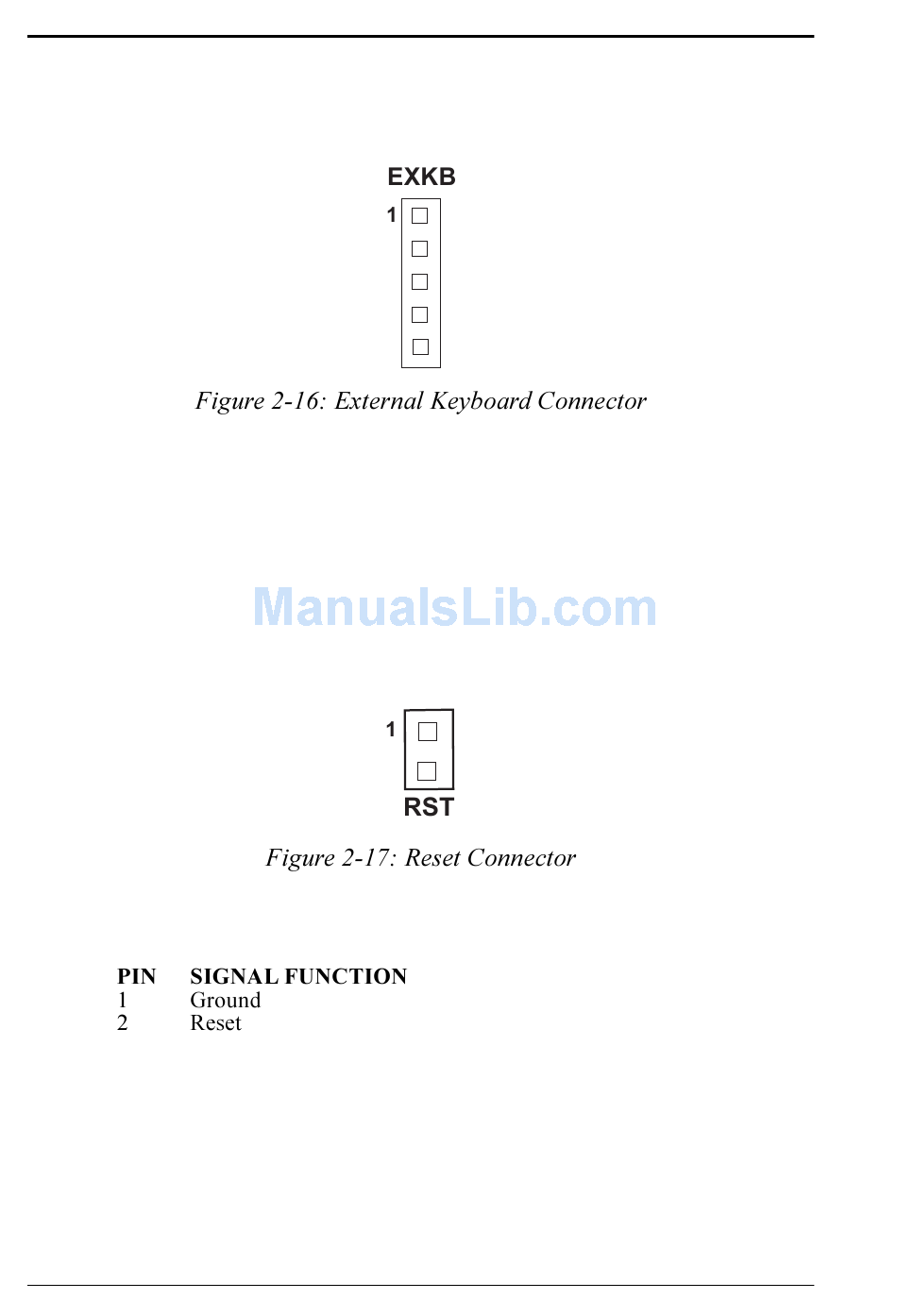

2-15 External Keyboard Connector
EXKB : external keyboard connector
The pin assignments are as follows:
PIN
1
2
3
4
5
2-16 Reset Connector
RST : Reset Connector.
The pin assignments are as follows:
24
SIGNAL FUNCTION
KBCLK
KBDATA
NC
GND
Vcc
CommPlete 4000 Server SBC, Model IPC-623C
