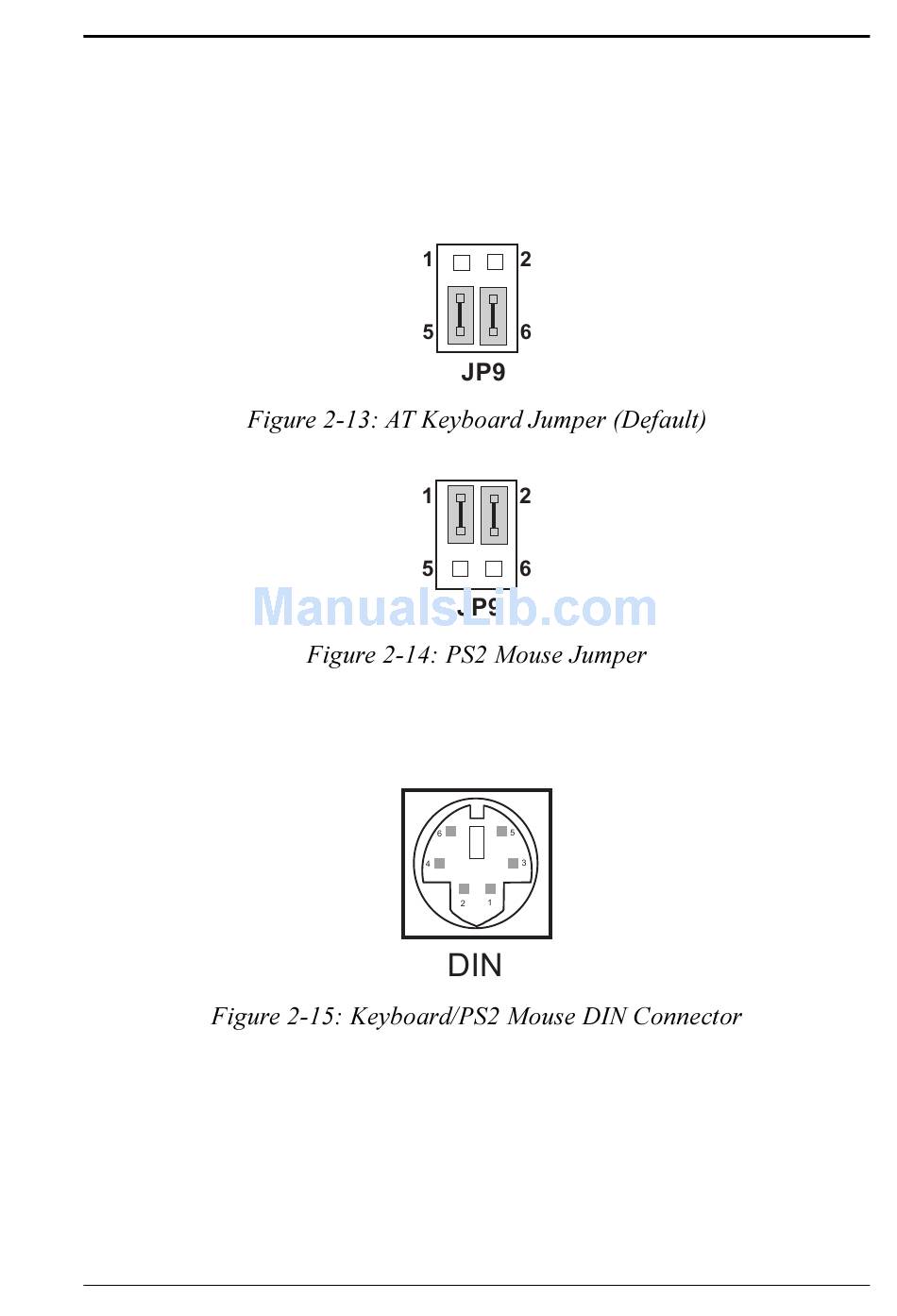

2-13 Keyboard / PS2 Mouse Selection
JP9 : AT keyboard / PS2 mouse selection
The jumper settings are as follows:
2-14 Keyboard / PS2 Mouse Connector
Connector Type: DIN
Pin assignments are as follows:
PIN
1
2
3
4
5
6
CommPlete 4000 Server SBC, Model IPC-623C
SIGNAL FUNCTION
KBDATA
MSDATA
GND
IOVSD
KBCLK
MSCLK
Hardware Configuration
23
