Hardware Configuration

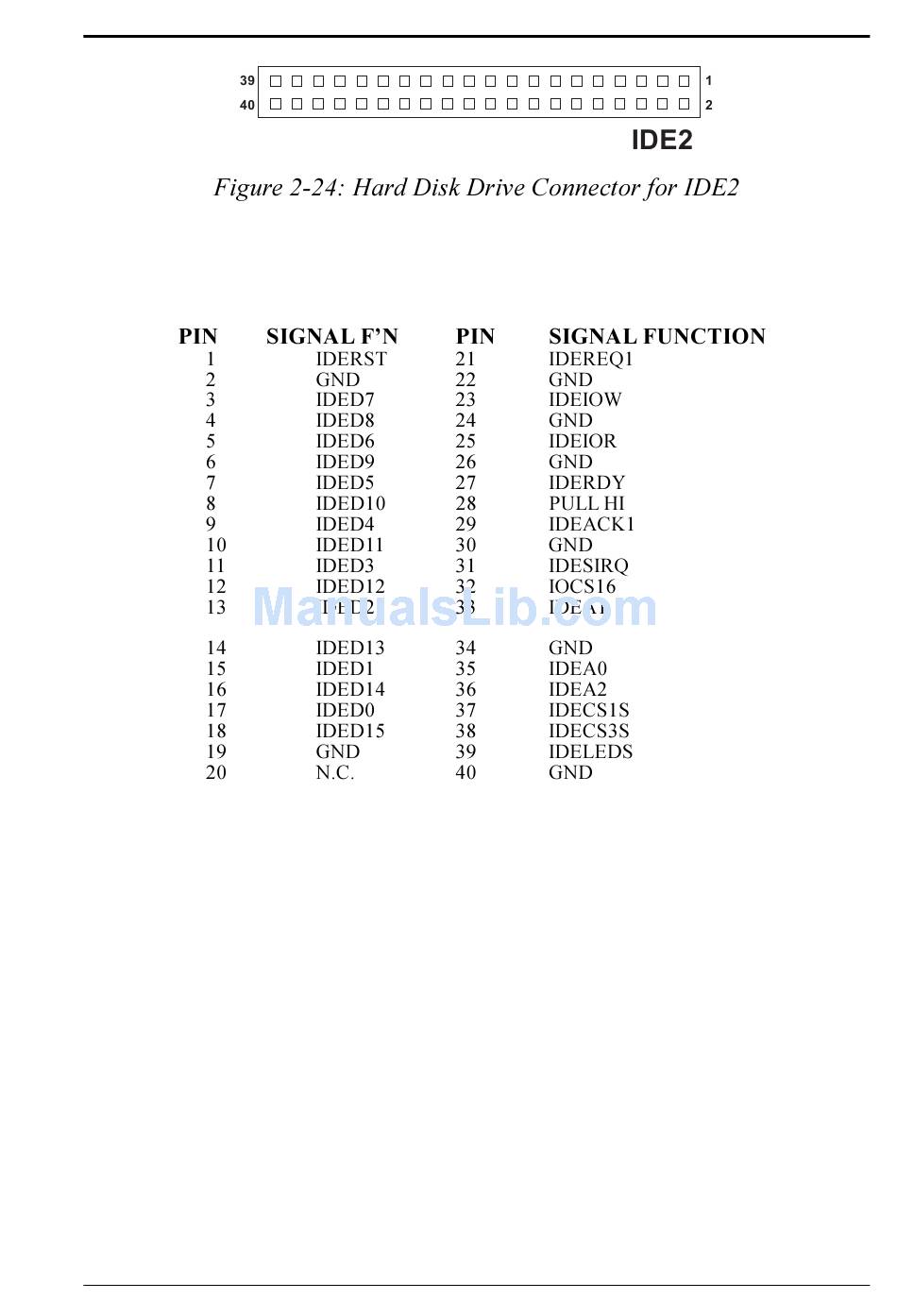

IDE2: Hard Disk Drive Connector
The pin assignments are as follows:
CommPlete 4000 Server SBC, Model IPC-623C
