Telecom Warnings for the Modem
1.
Never install telephone wiring during a lightning storm.
2.
This product must be disconnected from the telephone network interface when servicing.
3.
This product is to be used with UL and cUL listed computers.
4.
Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at
the network interface.
5.
Use caution when installing or modifying telephone lines.
6.
Avoid using a telephone during an electrical storm. There may be a remote risk of electrical shock from
lightening.
7.
Do not use the telephone to report a gas leak in the vicinity of the leak.
8.
To reduce the risk of fire, use only No. 26 AWG or larger telecommunications line cord.
9.
Never install telephone jacks in a wet location unless the jack is specifically designed for wet locations.

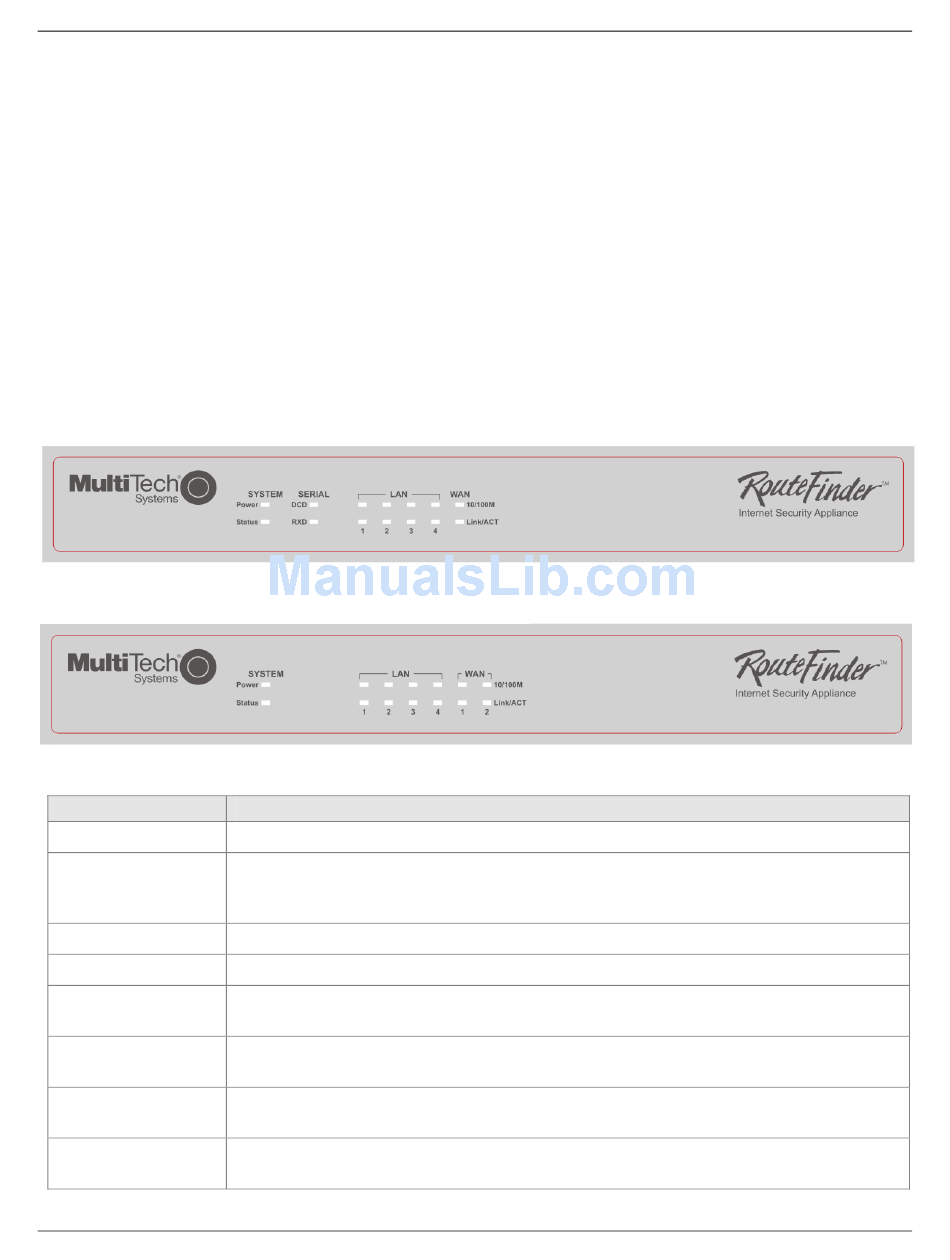

RF820/RF820-AP Front Panel
RF830/RF830-AP Front Panel
LEDs
Power
Status
Serial DCD
Serial RXD
LAN10/100M
LAN Link / ACT
WAN 10/100M
WAN Link / ACT
Multi-Tech Systems, Inc. RouteFinder SOHO RF820/RF820-AP & RF830/RF830-AP User Guide (S000399E)
Description
Lights when power is being supplied to the RouteFinder.
When functioning normally, the LED blinks. The LED is a solid light when the
RouteFinder is booting up, saving the configuration, restarting, or updating the
firmware.
(RF820/RF820-AP only) Lights when Serial port is connected to a remote site.
(RF820/RF820-AP only) Blinks when Serial port is receiving or transmitting data.
Lights when a successful connection to the 100BaseT LAN is established. Off when
connected to the 10BaseT.
Lights when the LAN port has a valid Ethernet connection.
Blinks when it is receiving or transmitting data.
Lights when a successful connection to the 100BaseT WAN is established.
Off when connected to the 10BaseT.
Lights when the WAN port has a valid Internet connection.
Blinks when it is receiving or transmitting data.
