4. The Local Area Connection Properties dialog
box displays.
• Select Internet Protocol [TCP/IP].
• Click the Properties button.
6. Close out of the Control Panel.
7. Repeat these steps for each PC on your network.
To Set a Fixed IP Address
To set a Fixed IP Address, check Specify an IP address instead of Obtain an IP address
automatically. Then click OK.
1. Enter the workstation IP address as 192.168.2.x. Note that the x in the address stands for
numbers 101 and up.
2. Enter the Subnet mask as 255.255.255.0
3. Enter the Default gateway as 192.168.2.1
4. Close out of the Control Panel.
5. Repeat these steps for each PC on your network.
Multi-Tech Systems, Inc. RouteFinder SOHO RF820/RF820-AP & RF830/RF830-AP User Guide (S000399E)
Chapter 3 – Setting up a Workstation and Starting the RouteFinder

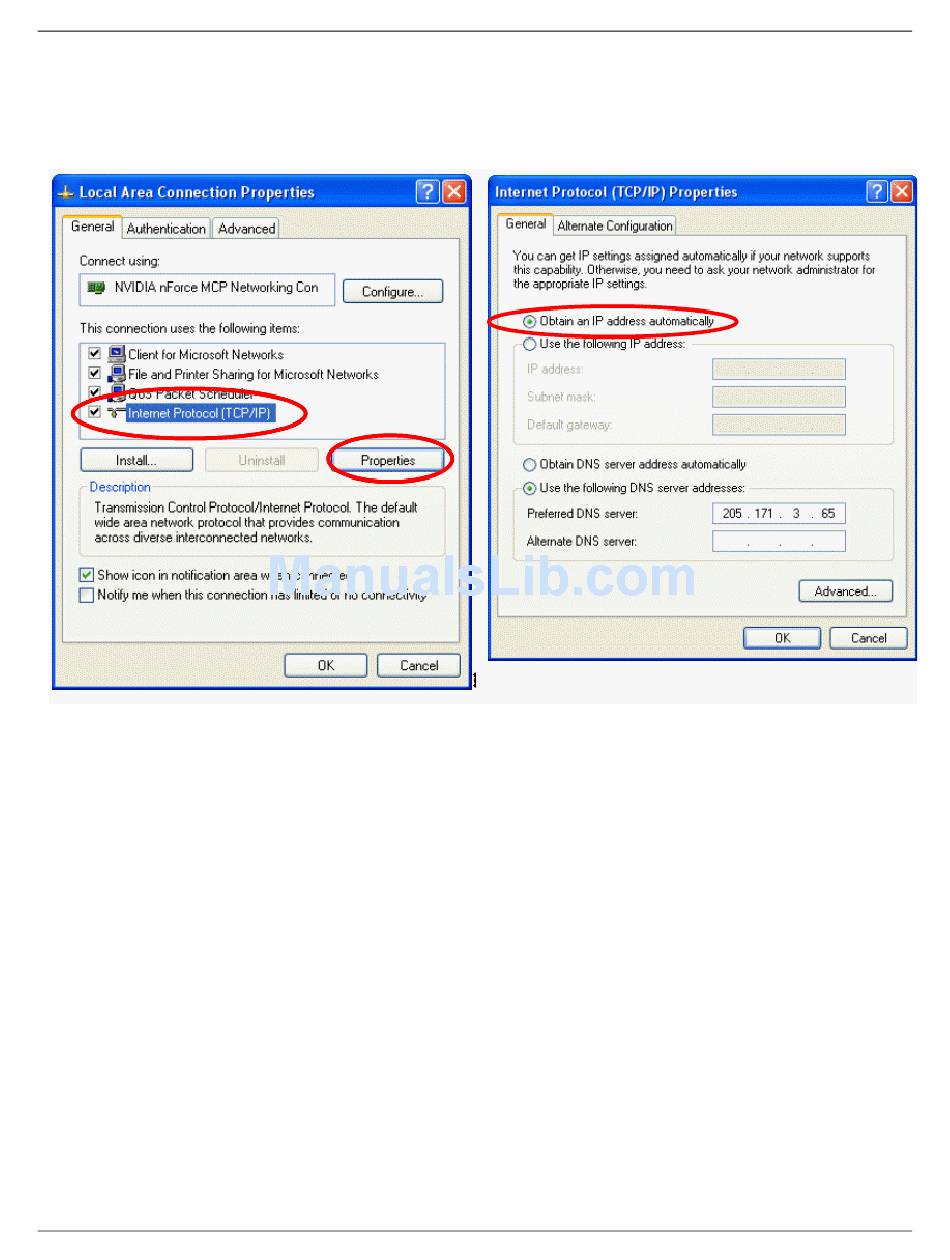

5. Once you click the Properties button, the following
screen displays (below) . To have your DCHP client
obtain a dynamic IP address, click the button for
Obtain an IP address automatically.
