Multitech RouteFinder RF820 User Manual page 71

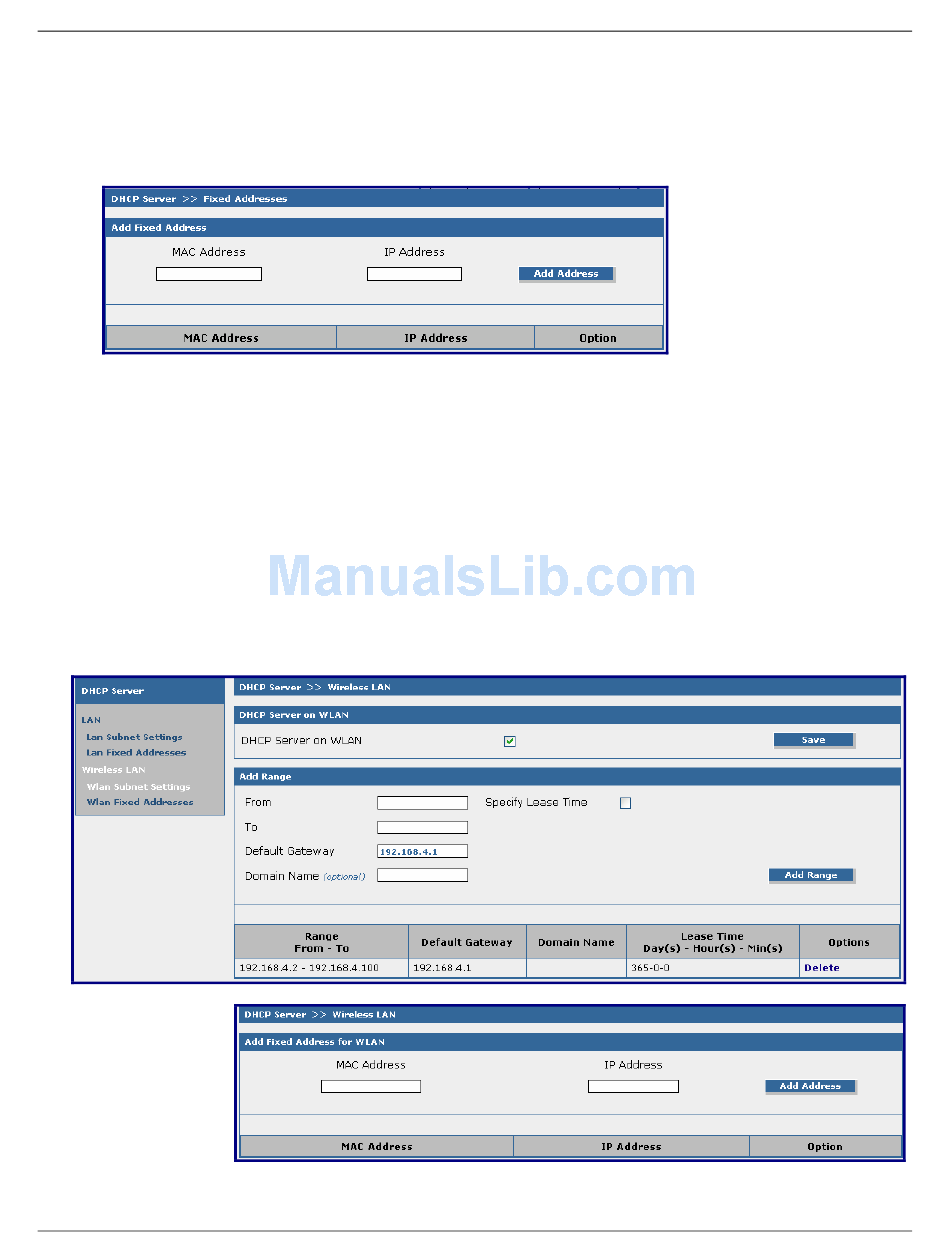

The DHCP server can be made to assign a fixed IP address for a particular system by identifying the MAC
address. This binding can be made permanent by configuring it here. The same IP address will not be used
for any DHCP client with a different MAC address, even if there is no active DHCP connection with that IP
address.
Add Fixed Address
Enter both a MAC address and an IP address.
MAC Address
Enter the MAC address.
Add Fixed Address
Enter the fixed IP address.
DHCP Server > WLAN Subnet Settings and WLAN
Fixed Addresses
This screen becomes available after you have checked the Independent Subnet box on the Network Setup >
Wireless LAN screen. On this DHCP screen, you will be able to set up a separate Network subnet address for
the wireless LAN. You might want to use this to give a certain workstation access to the Internet and not to
the your local network or vice versa.
Following the same directions for these screens as for the LAN Subnet Settings and LAN Fixed Addresses.
Multi-Tech Systems, Inc. RouteFinder SOHO RF820/RF820-AP & RF830/RF830-AP User Guide (S000399E)
Chapter 5 – Configuration Using Web Management Software
DHCP Server > LAN Fixed Addresses
DHCP Server > WLAN Subnet Settings
DHCP Server > WLAN Fixed Addresses
71
