Proxy - Multitech RouteFinder RF820 User Manual

Proxy

While the packet filter filters the data traffic on a network level, the use of a Proxy (also called an Application
Gateway) increases the security of the RouteFinder on the application level, as there is no direct connection
between client and server.
Proxy > HTTP Proxy

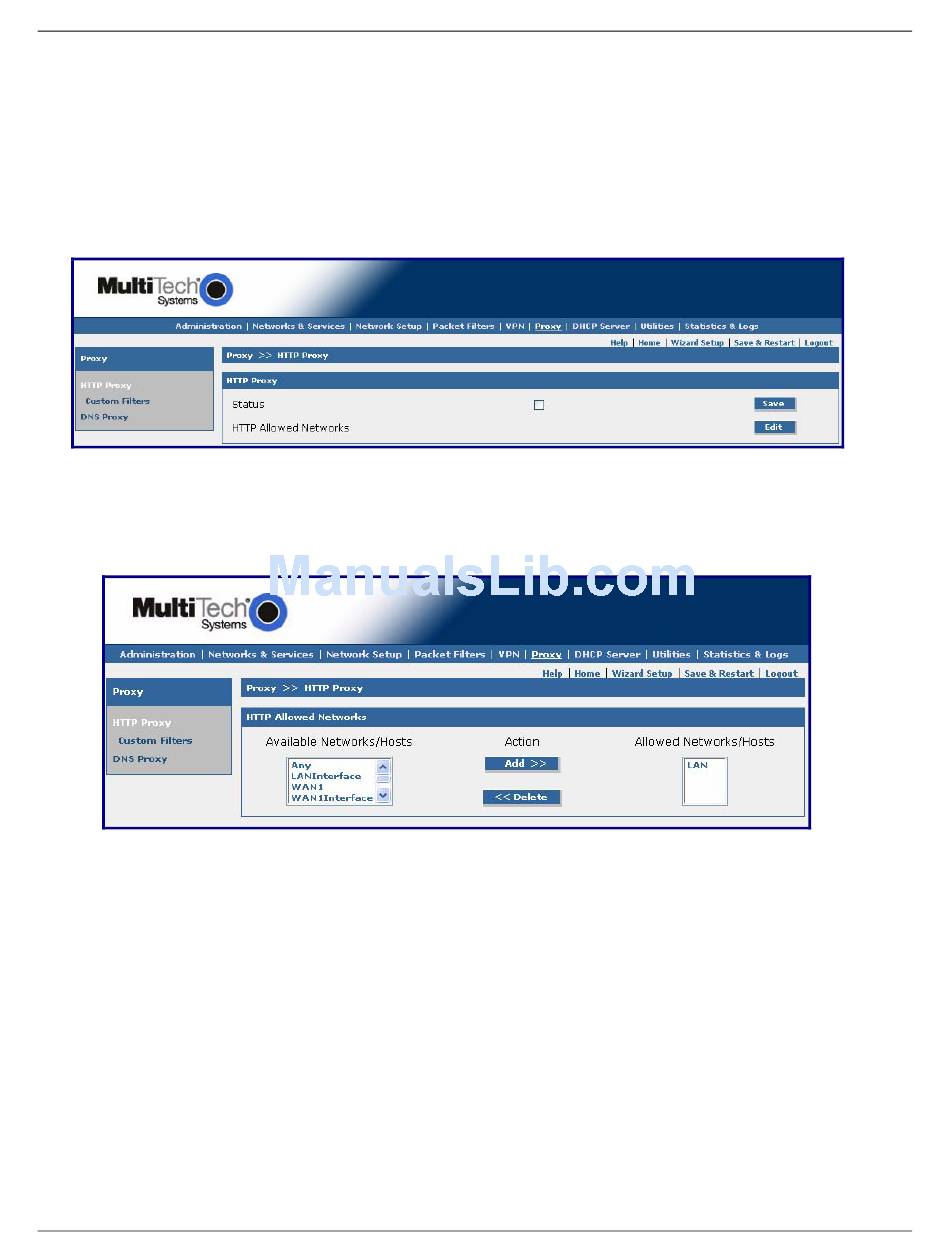

The HTTP Proxy is a module built into the RouteFinder to redirect HTTP requests from the clients in the LAN
to the Internet.
HTTP Status
To enable HTTP, check the Status box and click Save. When you click Edit, the HTTP Allowed Networks
part of the screen displays.
Screen Note: The RF830/RF830-AP includes two additional options in the Available
Networks/Hosts drop-down box: WAN2 and WAN2 Interface.
HTTP Allowed Networks
Available Networks/Hosts
This defines the allowed network/host for access to the HTTP. To select the networks you want to be
available for the HTTP proxy, highlight the network name and click the Add button.
Multi-Tech Systems, Inc. RouteFinder SOHO RF820/RF820-AP & RF830/RF830-AP User Guide (S000399E)
Chapter 5 – Configuration Using Web Management Software
Proxy > HTTP Proxy
67
