Administration > System Logs
Screen Notes:
•
PPP Dial Backup Logging is available on the RF820/RF820-AP only.
•
The RF830/RF830-AP has two WAN ports; the RF820/RF820-AP only one.

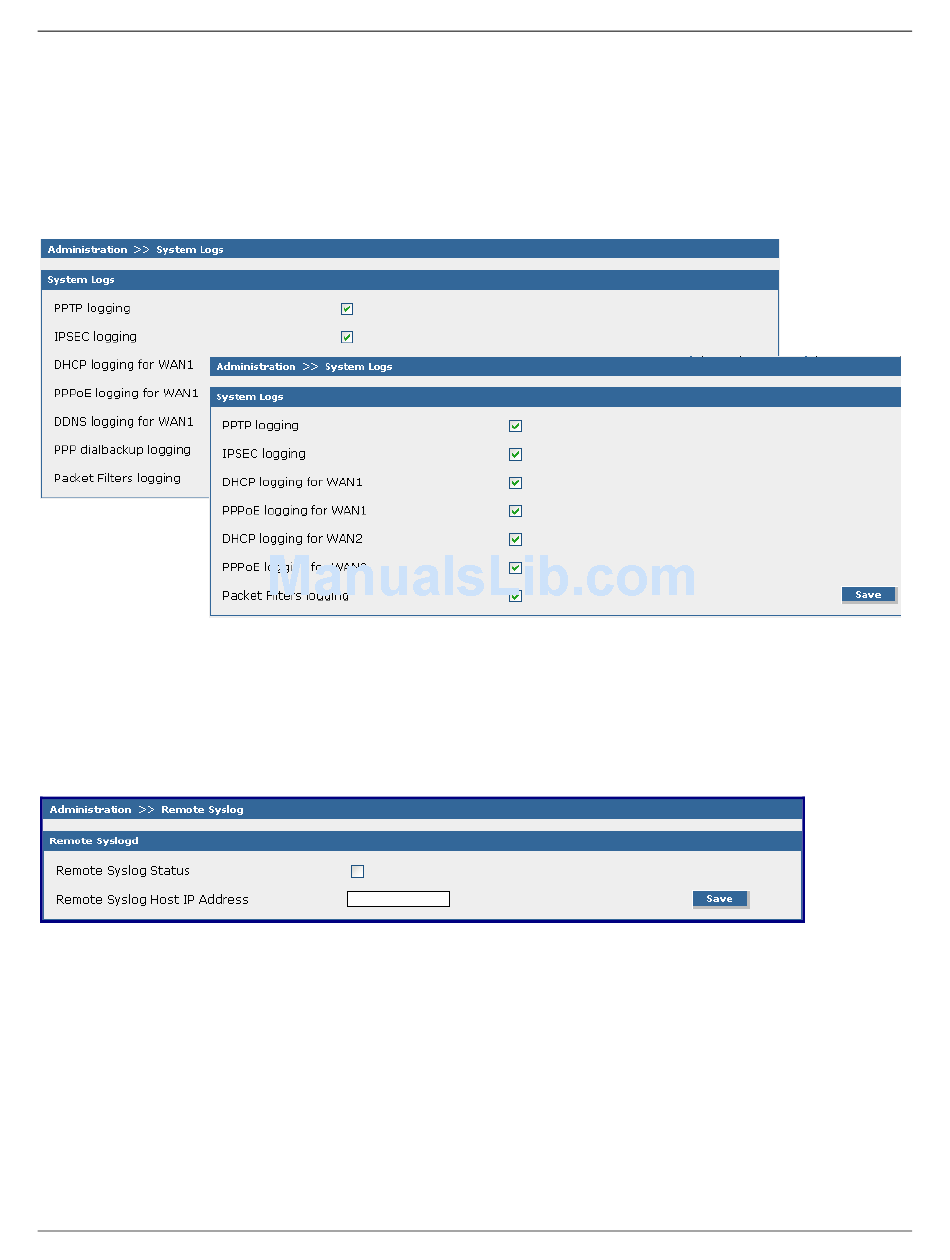

RF820 Screen
RF830 Screen
Enable System Logs
To enable the RouteFinder System Logs, place a checkmark across from the log you want enabled.
Then click the Save button.
Administration > Remote Syslog
Note: Enabling Remote Syslog logging will slow down the performance of the RouteFinder.
It should be used strictly for debugging purposes only.
Remote Syslog
Remote Syslog Status
Check the Remote Syslog Status box to enable the remote syslog function.
Remote Syslog Host IP Address
If Remote Syslog is enabled, then you must specify the Host IP Address. All log messages from the
RouteFinder will be forwarded to this address.
On the remote host, syslog should be invoked with the "-r" option to enable the host to receive log
messages from the other machines.
Multi-Tech Systems, Inc. RouteFinder SOHO RF820/RF820-AP & RF830/RF830-AP User Guide (S000399E)
Chapter 5 – Configuration Using Web Management Software
Administration > System Logs
Administration > Remote Syslog
