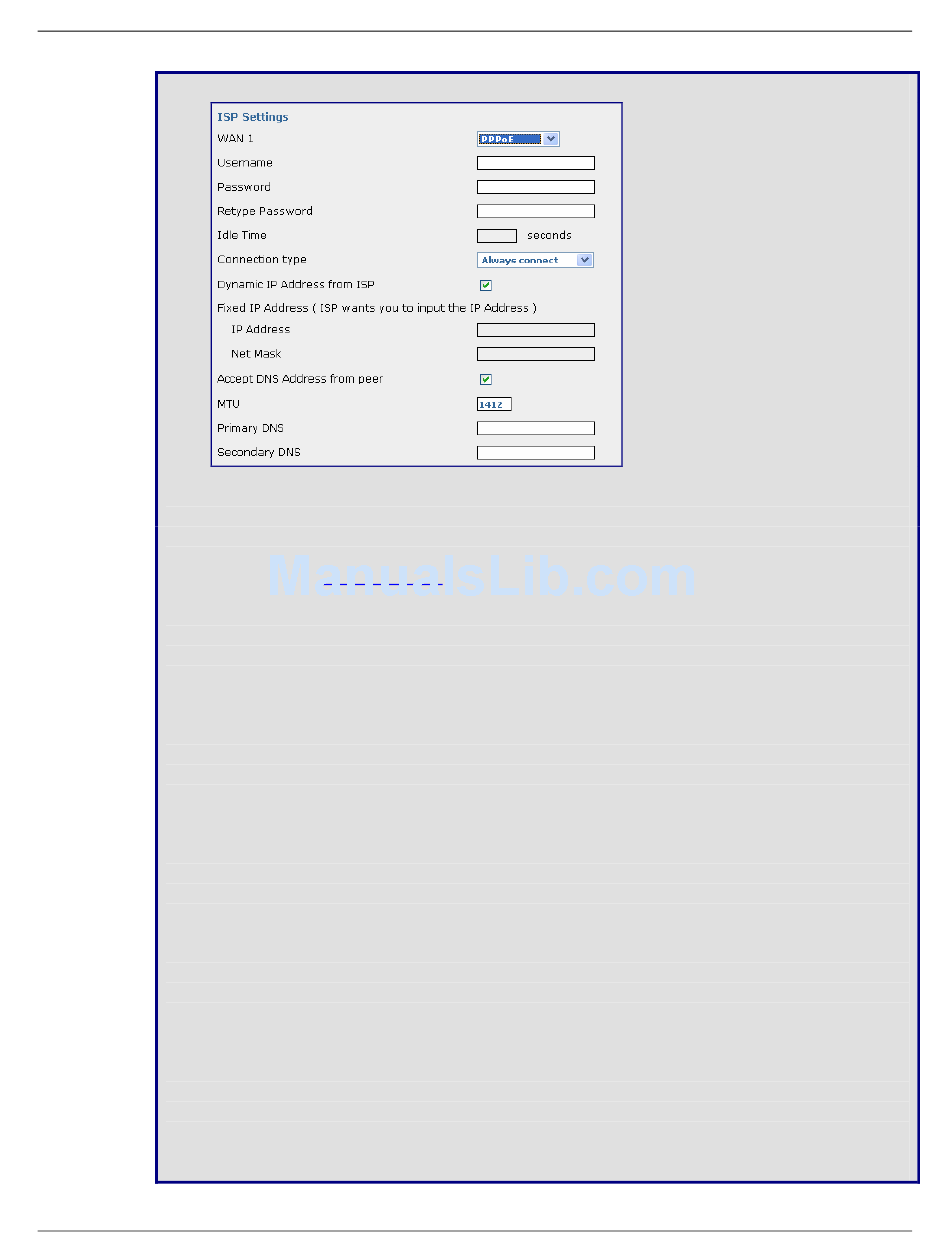

WAN 1 PPPoE Choice
PPPoE (Point-to-Point over Ethernet) is a specification for connecting multiple computer
users on an Ethernet local area network to a remote site through DSL or cable modems or
wireless connection to the Internet. The following fields display when you select PPPoE:
User Name
Password
Retype Password
Idle Time
Connection Type
Dynamic IP Address from ISP
Accept DNS Address from Peer
(Continued on next page)
Multi-Tech Systems, Inc. RouteFinder SOHO RF820/RF820-AP & RF830/RF830-AP User Guide (S000399E)
Enter the user name give by the ISP.
Example: user1@xyz.com
Enter the user's password.
These characters are not allowed: <, >.
The maximum number of allowed is 18.
Retype the password to confirm the one entered above. Passwords must match in
order to continue. If you receive an error, enter password in both fields again.
This option is available only when the Connection Type is Trigger on Demand. Specify
the inactivity time (in seconds) after which the PPPoE link should be brought down.
Specify the type of connection for the link. Options are:
Always Connect: The link will always be established. It is not dependent on whether
or not there is data or a traffic flow through the RouteFinder. Default.
Trigger on Demand: The link will be established only when there is data or a traffic
flow through the RouteFinder.
Check the box to Enable the Dynamic IP address to be provided by the ISP. If enabled,
the IP address obtained from the ISP is dynamic. If disabled, enter the IP address and
subnet mask from the ISP in the following Fixed Address fields:
IP Address
Net Mask
Note: If the ISP does not support the Fixed Address option, then the RouteFinder will
accept the dynamic IP address provided by the ISP.
Check this box if you want the DNS server address to be obtained from the peer (the
ISP). The DNS address obtained from the ISP will be displayed on the Network Setup
> Interface screen. The details of the address/subnet mask obtained from the ISP are
displayed as the Present Status on this screen.
