Networks & Services
Networks & Services > Network Configuration
The names, addresses, and network masks or hosts are defined here. Edit and Delete options are used for
editing or deleting the networks/hosts. However, the name of the network/host cannot be edited. The Edit link
has to be clicked in order to change the address or mask entries. When you click Edit, the corresponding
address and mask displays. The changed entries can be saved by clicking the Save button. For all other
screens where that particular network/host is being used, the corresponding change in the IP address or
mask will be made automatically. The networks/hosts can be deleted only if is not used for any route or by
any other module.
If a network is being used by the routing screen, that network cannot be edited. Similarly, if a host address is
edited and changed to a network address, and if that host was used by SNAT or DNAT, the change will not
be performed.
Network Entries on the Network Configuration Screen Will Display on the Following Screens
Administration > Administration Access
Network Setup > Static Routes
Network Setup > IP Masquerading
Network Setup > SNAT, DNAT
Packet Filters > Packet Filter Rules
Network Intrusion Detection
VPN > IPSec
VPN > PPTP
VPN > HTTP Proxy

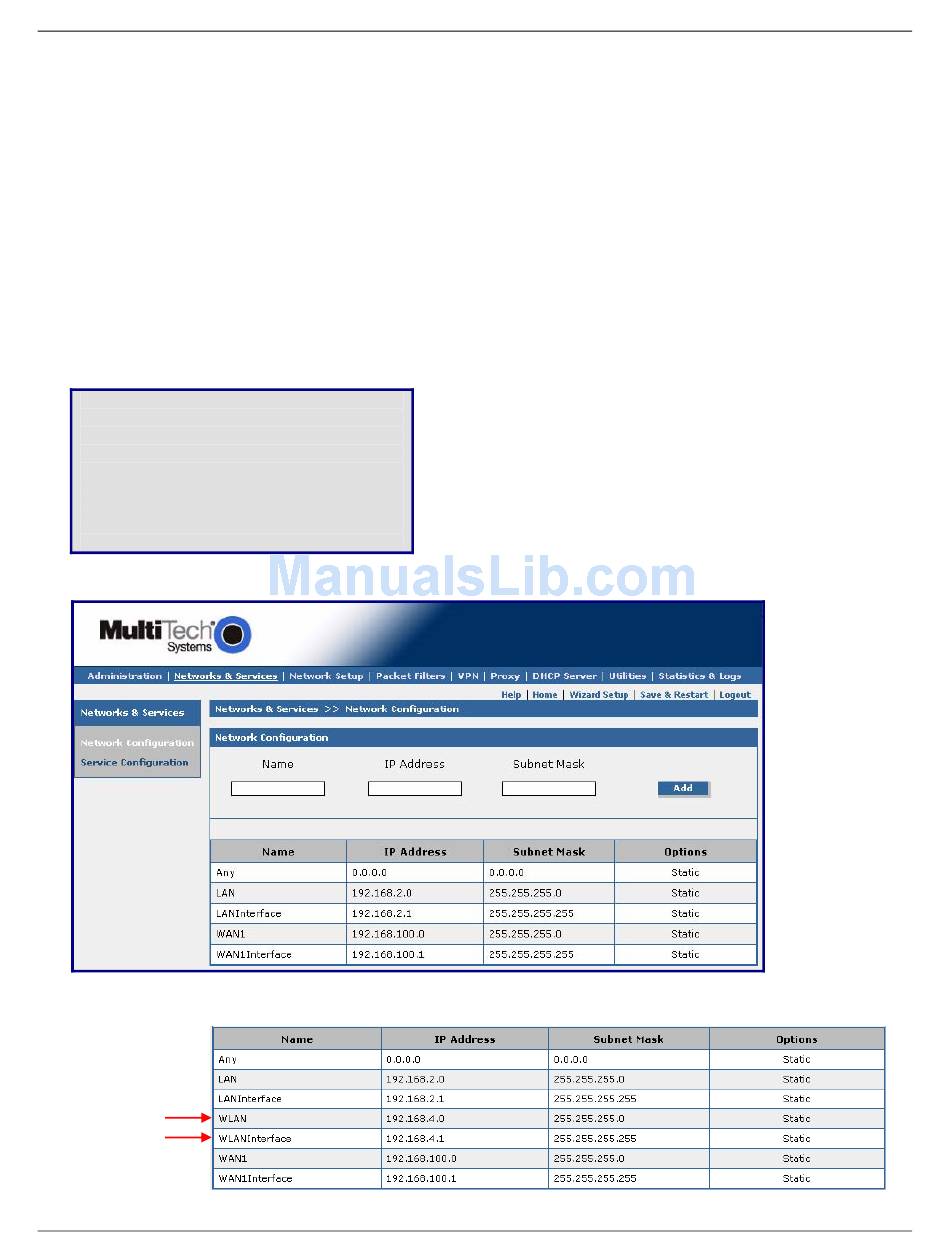

RF820 Network Configuration Screen
RF820-AP Network Configuration Screen
Note that the AP build will show the additional networks: WLAN and WLANInterface.
