Summary of Contents for Multitech MTE-LEU6-B07

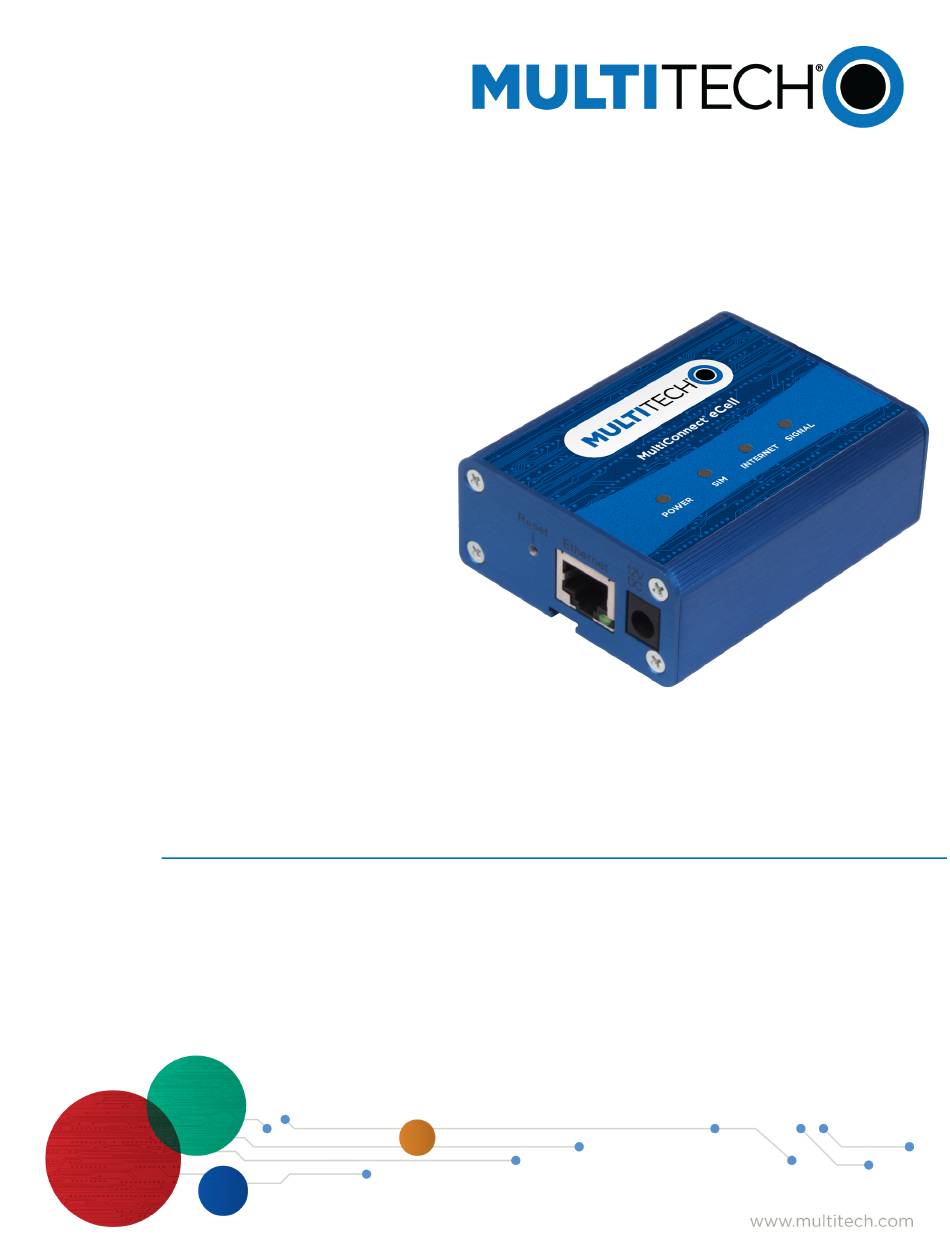

- Page 1 ® MultiConnect eCell User Guide...
- Page 2 Legal Notices The MultiTech products are not designed, manufactured or intended for use, and should not be used, or sold or re-sold for use, in connection with applications requiring fail-safe performance or in applications where the failure of the products would reasonably be expected to result in personal injury or death, significant property damage, or serious physical or environmental damage.
-
Page 3: Table Of Contents
CONTENTS Contents Chapter 1 – Product Overview ..........................5 About the MultiConnect eCell ............................5 Package Contents................................5 System Requirements ..............................5 LED Indicators ................................5 Using DeviceHQ for Device Management........................6 Chapter 2 – Specifications............................7 Chapter 3 – Installing and Using the eCell ........................ 9 Installing the SIM Card .............................. - Page 4 CONTENTS System Tools ................................18 Scheduling ................................. 19 External Servers ................................ 19 Chapter 7 – Safety Warnings..........................20 Ethernet Ports ................................20 Radio Frequency (RF) Safety ............................20 Interference with Pacemakers and Other Medical Devices ..................20 Potential interference ............................... 20 Precautions for pacemaker wearers ........................
-
Page 5: Chapter 1 - Product Overview

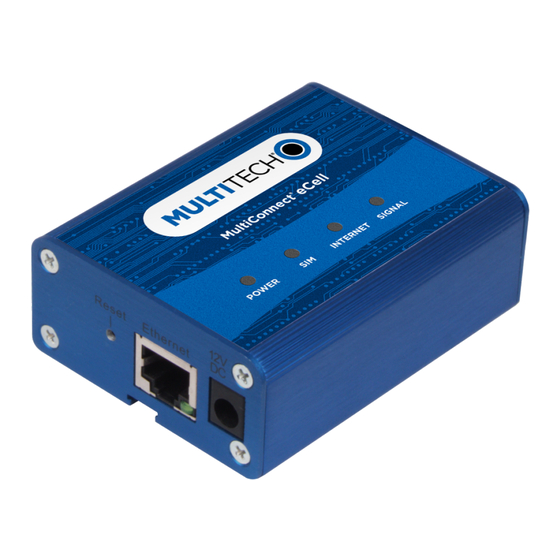

PRODUCT OVERVIEW Chapter 1 – Product Overview About the MultiConnect eCell The Multiconnect eCell is an affordable 3G/4G Ethernet to Cellular Bridge used to enable devices with Internet service. It is a simple alternative to complex and expensive cellular routers in applications where advanced networking capabilities are already in place or are not required, but there is a need for remote access without using local wired networks. -
Page 6: Using Devicehq For Device Management
Flashing: Data is actively transmitting via the Internet. Using DeviceHQ for Device Management DeviceHQ is a cloud-based device management tool for remote monitoring, upgrades, and configuration AEP devices. For information on creating and using a DeviceHQ account, go to the http://www.multitech.net/developer/software/devicehq/. ® MultiConnect eCell User Guide... -
Page 7: Chapter 2 - Specifications
SKU: MTE-L12G1-B07 LTE: FDD B1,2,3,4,5,7,8,9,12,13,14,18,19,20,26,66 TDD B41,42,43,48 WCDMA: B1,2,4,5,6,8,9 Radio Cellular MTE-LEU6-B07: 4G LTE Radio with 3G/2G fallback MTE-LAT6-B07: 4G LTE Radio with 3G fallback MTE-L12G1-B07: 4G LTE CBRS Radio with 3G fallback 4G LTE Speed Packet Data Up to 100 Mbps downlink/50 Mbps uplink based on... - Page 8 Operating Temperature -10° C to +50° C Humidity Relative humidity 10% to 93% non-condensing Certifications, Compliance, Warranty CE Compliance (MTE-LEU6-B07) CE RED FCC Compliance (MTE-LAT6-B07) FCC Part 15B, 22H, 24E, 27, and IC FCC Compliance (MTE-L12G1-B07) FCC Part 15B and Part 96 (Band 48) Network Compliance PTCRB and AT&T...
-
Page 9: Chapter 3 - Installing And Using The Ecell
INSTALLING AND USING THE ECELL Chapter 3 – Installing and Using the eCell Installing the SIM Card This device requires a SIM card, which is supplied by your service provider. Install the SIM card before connecting antennas and cabling the device. To install the SIM card: Locate the SIM card slot on the side of the device. -
Page 10: Using The Setup Wizard
INSTALLING AND USING THE ECELL Using the Setup Wizard Note: When using a 3G/4G network, verify a SIM card has been installed before powering on and starting setup. Configure the device using the web UI. To access the web UI, enter the IP Address into your browser. The default IP Address is 192.168.2.1. -
Page 11: Chapter 4 - Basic Network
BASIC NETWORK Chapter 4 – Basic Network WAN and Internet Setup for 3G/4G This device has Cellular WAN interfaces. Configure these individually to maximize Internet connection setup. To configure Cellular WAN settings go to Basic Network > WAN on the menu on the left. Dial-up Profile: Use information given by your 3G/4G data service provider to setup your connection including APN, dialed number, and account/password. -
Page 12: Ethernet Lan
BASIC NETWORK Network Monitoring: To monitor the WAN interface connection status, check Enable. The system monitors when there is no activity for a defined period of time and resets the cellular connection. Data Load Check: Enable this option if there are continuous incoming and outgoing data packets passing through the WAN connection. -
Page 13: Routing
BASIC NETWORK Public Port: Enter the public IP port number. Server IP: Enter the LAN device IP address. Private Port: Enter the LAN device IP port number. Protocol: Select TCP or UDP or both. Time Schedule: Select a time schedule when this rule will take effect. Rule: Check to enable the rule. -
Page 14: System Management (Devicehq)
MTE must be running firmware version 2.04 or above for DeviceHQ support. Download firmware from the website and upgrade the device before proceeding. https://www.multitech.com/models/92506980LF In Basic Network, on the LAN Setup Screen: Enter and Define Site Name so it shows as Description in... -
Page 15: Pushing A Firmware Update To All Devices
BASIC NETWORK Click Files and click the New Firmware button. Select model = Unspecified. Enter the name and version number of the firmware file. Choose the firmware BIN file. Click the Upload button. Make sure MD5 checksum matches on the firmware BIN file. Pushing a Firmware Update to All Devices This is performed after logging in to DeviceHQ. -
Page 16: Requesting A Device Reboot
BASIC NETWORK Requesting a Device Reboot Click on the individual device to view more details. Click Schedule and select Reboot. Click OK when prompted. MTE Data Usage with DeviceHQ Each time a device checks in, it can take up to 23 KB. Log file upload can vary depending on the size of the log files. -
Page 17: Chapter 5 - Advanced Network
ADVANCED NETWORK Chapter 5 – Advanced Network Advanced Network This section is only available when NAT mode is selected in the WAN cellular internet setup. Enable/disable firewall, Stealth Mode, SPI, and Discard PING from the WAN interface. Configuration Firewall: Enable / Disable Firewall. Options Stealth Mode: When enabled, the router will not respond to port scans from the WAN. -
Page 18: Chapter 6 - System
SYSTEM Chapter 6 – System System This section includes system information, system logs, system tools (i.e. firmware updates), scheduling, and external syslog server setup. Change Password Old, New, and Confirmation Password: To change your password, type in your old password, then enter in the new password in the new password and confirm password fields. -
Page 19: Scheduling
SYSTEM Scheduling Enable the schedule function and setup a rule for each schedule. The rule can be used in many other functions, such as scheduling an auto-reboot, scheduling an auto WAN connectivity, etc. Click Save to store all schedule settings. External Servers Click Add to add and configure an external syslog server. -
Page 20: Chapter 7 - Safety Warnings
SAFETY WARNINGS Chapter 7 – Safety Warnings Ethernet Ports CAUTION: Ethernet ports and command ports are not designed to be connected to a public telecommunication network. Radio Frequency (RF) Safety Due to the possibility of radio frequency (RF) interference, it is important that you follow any special regulations regarding the use of radio equipment. - Page 21 SAFETY WARNINGS Keep the device on the opposite side of the body from the pacemaker to add extra distance between the pacemaker and the device. Avoid placing a turned-on device next to the pacemaker (for example, don’t carry the device in a shirt or jacket pocket directly over the pacemaker).
-
Page 22: Chapter 8 - Regulatory Information
REGULATORY INFORMATION Chapter 8 – Regulatory Information 47 CFR Part 15 Regulation Class B Devices This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 23: Industry Canada
2015/863 of the European Parliament (Restriction of the use of certain Hazardous Substances in electrical and electronic equipment - RoHS). These MultiTech products do not contain the following banned chemicals Lead, [Pb] < 1000 PPM Mercury, [Hg] <... -
Page 24: Instructions For Disposal Of Weee By Users In The European Union
Substances) complements the WEEE Directive by banning the presence of specific hazardous substances in the products at the design phase. The WEEE Directive covers all MultiTech products imported into the EU as of August 13, 2005. EU-based manufacturers, distributors, retailers and importers are obliged to finance the costs of recovery from municipal collection points, reuse, and recycling of specified percentages per the WEEE requirements.
