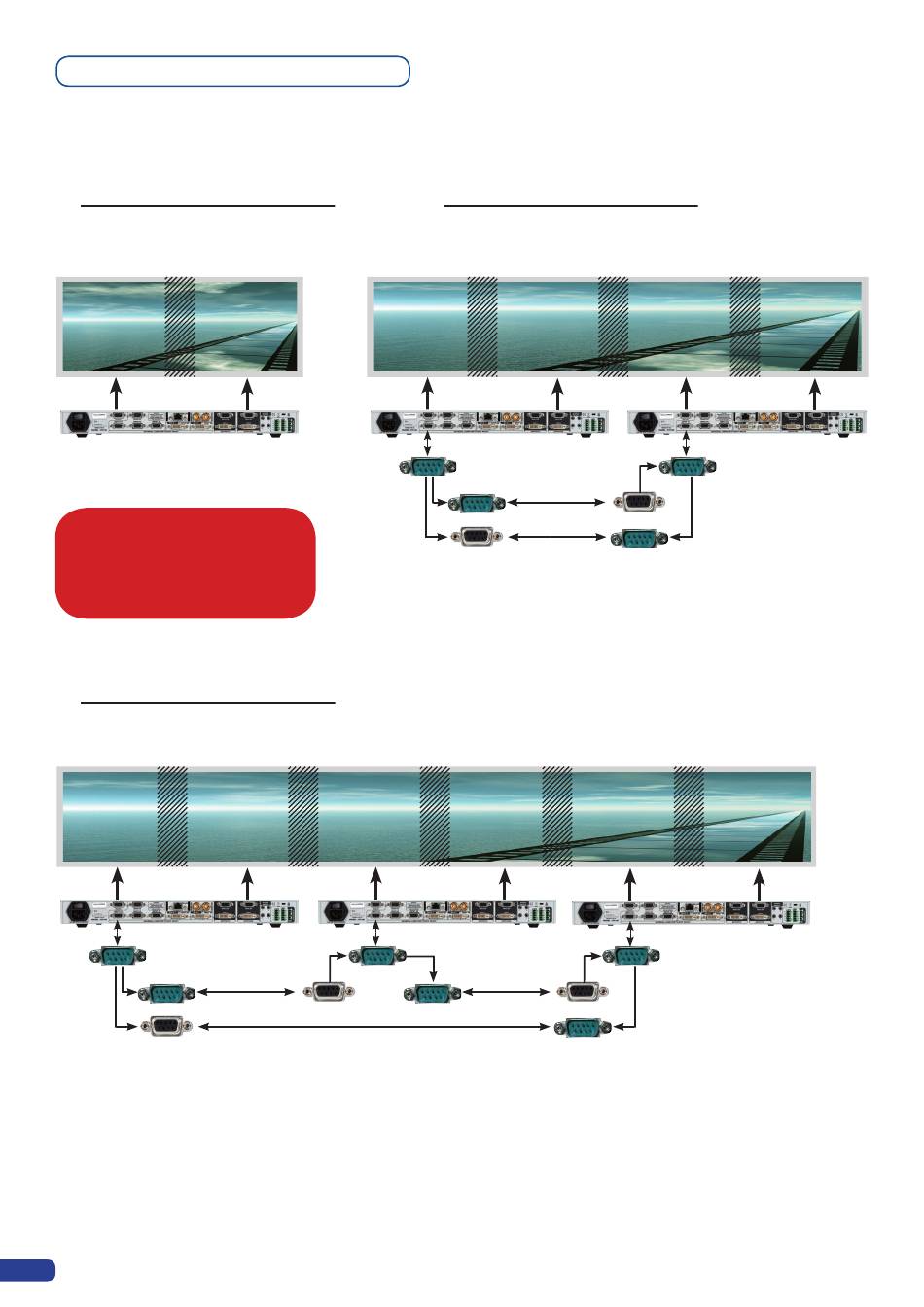

Multiple Machine Mode

Up to 3 x STE100 for Large Wide Screen with 6 Video Projectors.
>> 1 x STE100 = 2 Video Projectors
LEFT
No Sync Cable.
WARNING!
Sync Cable OPTIONAL.
For multiple machine mode, use one cable
per STE100 (Ref: AW212080).
For a perfect functioning, the follow mode
is recommanded on all units.
>> 3 x STE100 = 6 Video Projectors
LEFT
+ Sync Cable
Thank you for using 3 x Sync Cable for multiple machine mode.
38
RIGHT
Thank you for using 2 x Sync Cable for multiple machine mode.
(x2 units)
RIGHT LEFT
>> 2 x STE100 = 4 Video Projectors
LEFT RIGHT
+ Sync Cable + Sync Cable
RIGHT
+ Sync Cable
LEFT RIGHT
+ Sync Cable
+ Sync Cable
