2-4. CABLE AND ADAPTOR INFORMATION
A large choice of cables and adaptors are compatible with the STE100. To find which are to be used in
your setup, please refer to the Hardware Specifications chapter. Please contact your distributor for a list of
available cables and connectors for your STE100.

2-5. HARDWARE SPECIFICATIONS

Input specifications

• ANALOG COMPUTER:

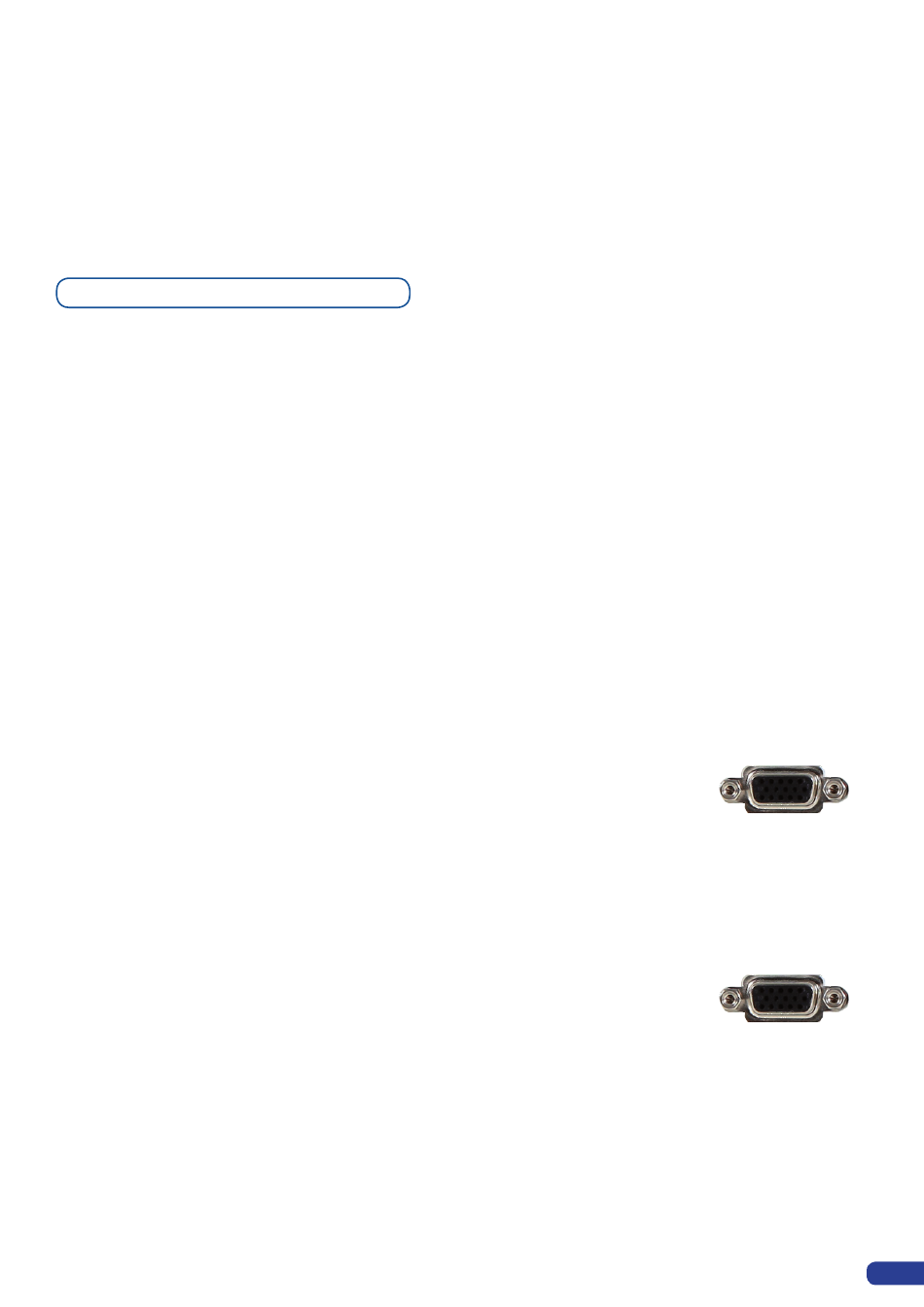

Connectors: Inputs #1 to #4: female HD15.
Inputs #5 & #6: female DVI-D (analog pins).
Line frequency: Up to 130 kHz (165 MHz Max pixel rate).
Resolution: Up to 1600x1200 @ 165Mhz, 1920x1200px
(RB, Max V size: 1200px, Max H size 2048px).
Sync. types: RGBHV, RGB/S, RGsB (Sync On Green).
Levels: R, G, B = 0.7 Vp/p.
H & V Sync = TTL
Composite Sync = TTL and 0.3 V (negative).
SOG (Sync On Green) = 0.3 V.
Impedance: R, G, B = 75 ohms.
H = 75 ohms or Hi-Z.
V = Hi-Z.
• RGB/S - RGsB VIDEO:
Connectors: Inputs #1 to #4: female HD15.
Inputs #5 & #6: female DVI-D (analog pins).
Frequency: 15.625 kHz - 50 Hz (625 lines).
15.734 kHz - 60 Hz (525 lines).
Levels: R, G, B = 0.7 Vp/p.
SYNC. = 0.3 Vp/p or TTL (negative).
Impedance: RGB = 75 ohms.
SYNC. = 75 ohms or Hi-Z.
• COMPONENT:
Connectors: Inputs #1 to #4: female HD15.
Inputs #5 & #6: female DVI-D (analog pins).
Frequency: 15.625 kHz - 50 Hz (625 lines).
15.734 kHz - 60 Hz (525 lines).
Levels: Y = 1 Vp/p (0.7 V Luma + 0.3 V Sync.).
Cr / Pr & Cb / Pb = 0.7 Vp/p.
Impedance: 75 ohms.
