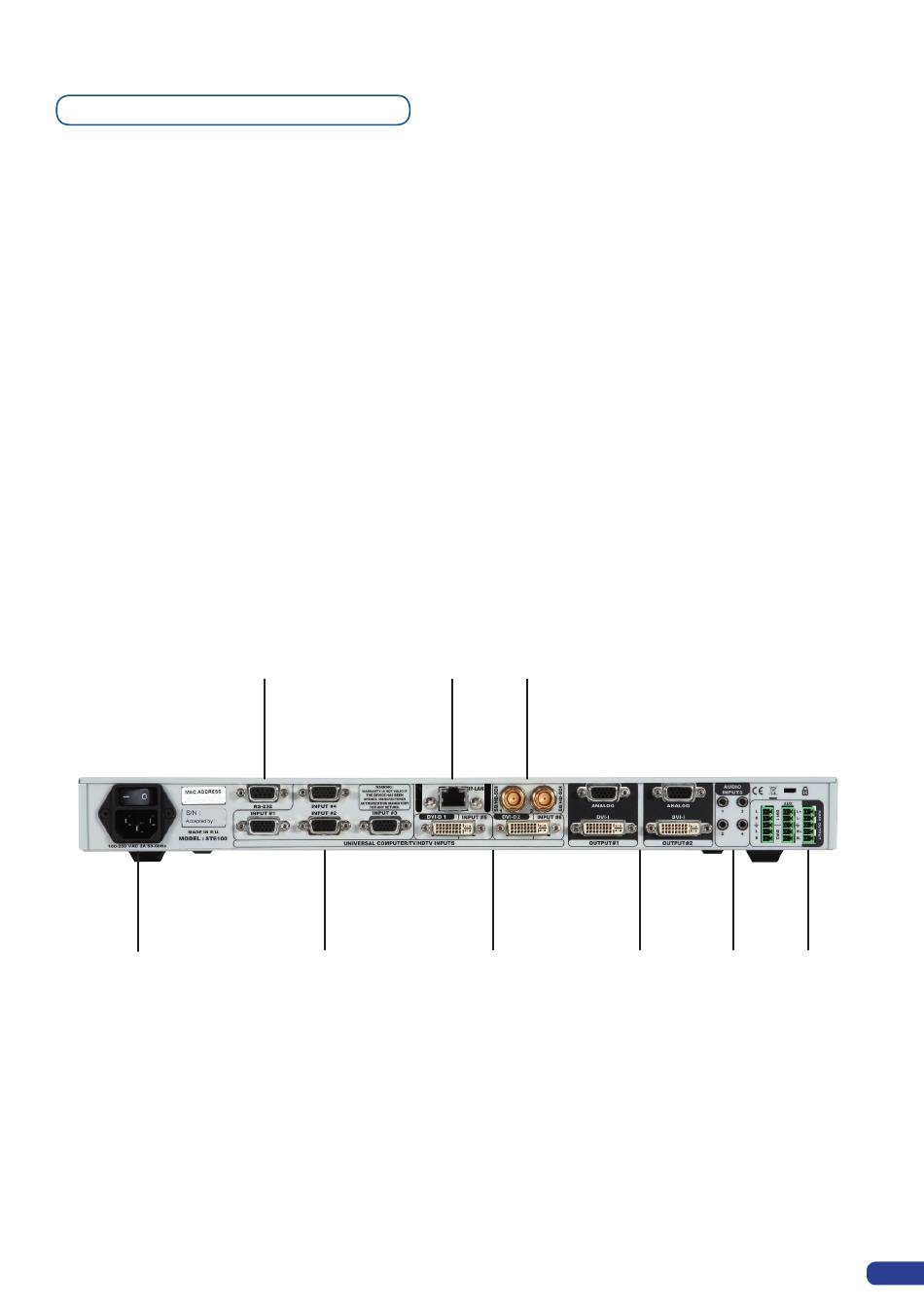

3-2. THE STE100 REAR PANEL
Overview
STE100
The
rear panel is equipped with 6 universal digital and analog inputs. Inputs #1 through #4 (3) are
universal analog inputs. Inputs #5 & #6 share a DVI-D signal and a universal analog signal (plug the shipped
Analog Way DVI/HD15 adaptor cable to use DVI-D and analog signals simultaneously).
The Output #1 and Output #2 (6) outputs will allow for the
STE100
high resolution digital and analog signals
to be viewed on large screen.
Finally, the audio in and output card will let users trigger audio with any source, accurately balance or tweak
sound sources and outputs.
1 : AC outlet and On/off switch
2 : IP-LAN connector
3 : Universal Analog Computer/TV/HDTV inputs
4 : DVI Inputs #1 & #2 (female DVI-I) + Universal Analog Computer/TV/HDTV inputs #5 #6 (DVI-A)
5 : SD-SDI/HD-SDI inputs #1 & #2: female BNC
6 : Outputs #1 & #2: female HD15, DVI-I
7 : Audio inputs
8 : MCO Male Connector for input. DVI #1 & #2 and AUX
9 : RS232 connector
9
2
5
1
3
4
6
7
8
19
