5-2. WORKING WITH THE RCS

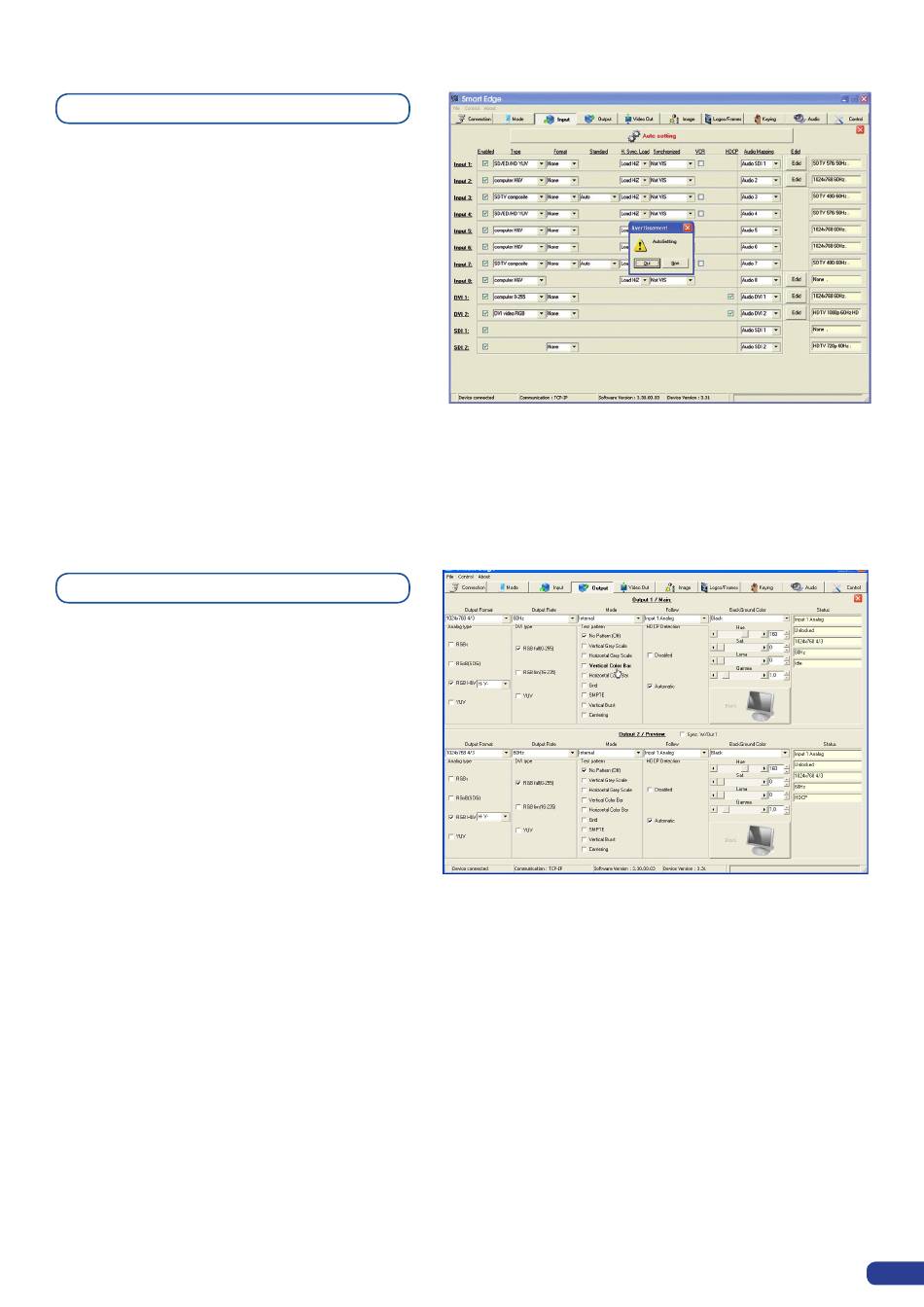

Source input configuration

Once your
STE100
is wired up to your PC, the
first step in properly configuring your machine is to
individually select and parameter your inputs.
1.
Click on the "Inputs" tab of the RCS.
2.
In the Plug column of the "Input" page, select the
plug type by clicking the appropriate field.
3.
Activate the input in the Enabled column if it
is not.
4.
In the scroll-down menu of the Type column,
select the signal type connected to that plug.
Repeat steps 2 to 4 for all sources connected to
5.
the rear panel of your STE100.
6.
Click on the "Inputs" tab to return to the main screen.
* NOTE *: Autosetting mode allows an easy setup of sources. Sometimes problems might appears with
analog or HDCP sources.

Source output configuration

1.
Click on the "Outputs" tab of the RCS.
Select the type of plug which is connected to
2.
outputs #1 & #2 of your
the appropriate field in Analog Type or DVI Type
3.
for both Main and Preview outputs.
4.
Select the appropriate output format and output
rate.
Click on the "Outputs" tab to return to the main
screen.
The Output menu also allows you to generate test patterns. The test patterns available through the Output
menu let you quickly and reliably setup your projectors.
* NOTE *: Be sure to turn the test pattern off to display your sources again.
