Inputs #1 to #4

UNIVERSAL COMPUTER & VIDEO INPUTS:
Universal Inputs accept computer sources (RGBHV, RGBS,
and RGsB (SOG) signals), standard TV/VIDEO sources
(Composite video, S.VIDEO), Component video (YUV, RGBS &
RGsB (SOG)), and HDTV sources (480p, 720p & 1080i/1080p).
HD15: 1 x Universal Analog input on female HD15 connector.
R
G
B
S
RGBS Source

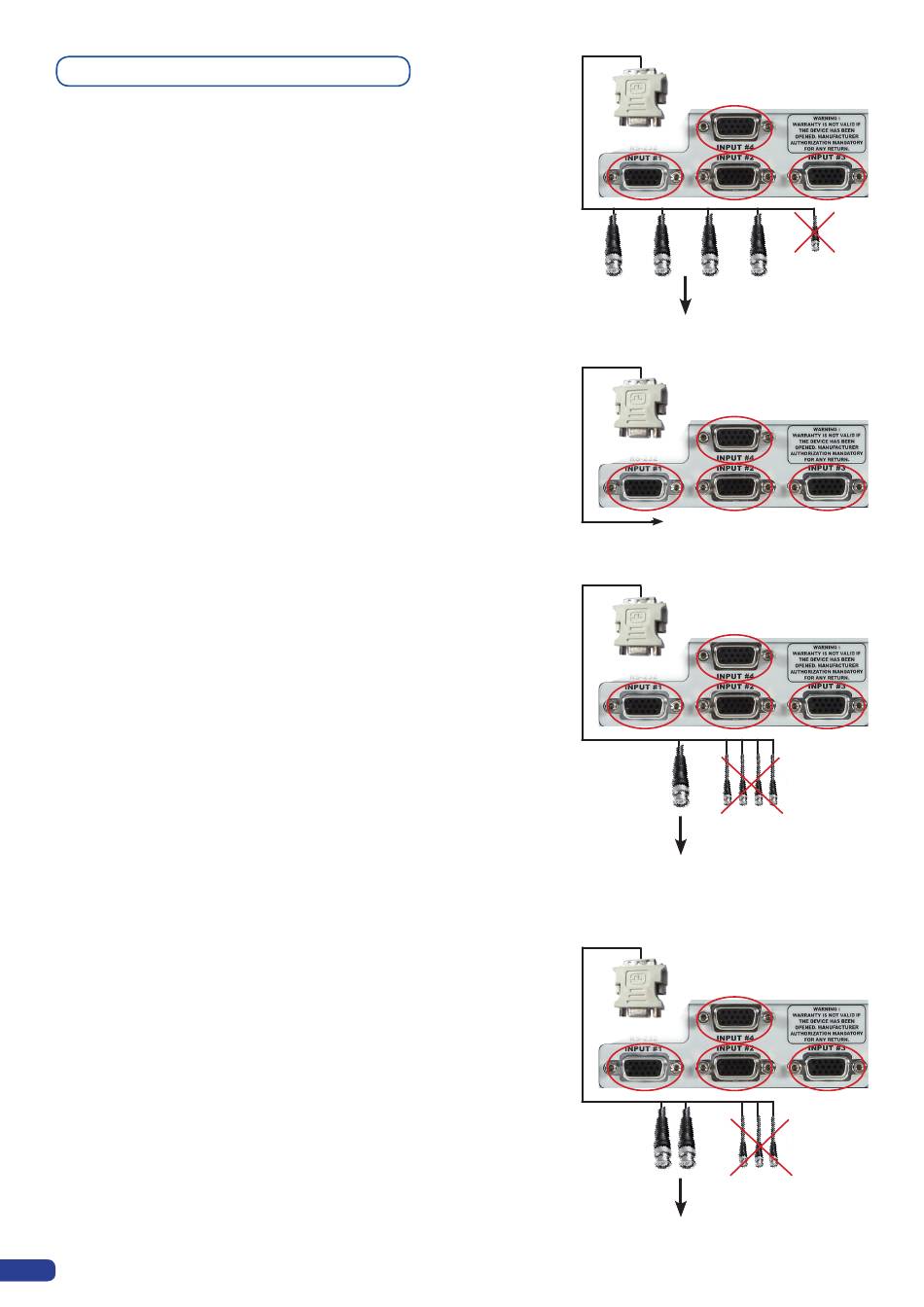

COMPUTER SOURCES:
The device accepts the following computer signals: RGBHV,
RGB/S, and RGsB on inputs #1 to #4 and DVI inputs #1 & #2.
Analog Computer Sources
COMPOSITE VIDEO SOURCES:
The Composite Video signal, usually called COMPOSITE or
VIDEO, is available on most video equipment (VCR, DVD,
CAMCORDER...), but is also the lowest in picture quality.
The video standard of this signal can be NTSC, PAL or
SECAM. The signal is transmitted on a single coaxial cable,
and is connected to the video equipment with an HD15
connector. (green cable)
For inputs #1 to #4: connect a 1 x BNC from your composite
G
source, to the HD15 input of the device.
Composite Source
S.VIDEO SOURCES:
The S.VIDEO signal, also called Y/C, HI-8™, or S.VHS™, is
available on DVD players and high quality VCRs (S.VHS).
The S.VIDEO signal in which the Luminance (Y) and
Chrominance (C) information are separately transmitted,
gives a higher quality picture than the Composite video
signal. The S.VIDEO connector is usually a 4-pin Mini-DIN
connector also called Oshiden™ connector.
For inputs #1 to #4: connect a 2 x BNC from your S.VIDEO,
R
G
Y (G/Y) & C (R/R-Y), to the HD15 input of the device.
S. Video Source
