COMPONENT VIDEO SOURCES:
The Component Video signal, also called YUV (Y, Pr, Pb)
or BETACAM™ is widely used in broadcasting and is
available on high-quality DVD players.
The COMPONENT signal is transmitted with 3 coaxial
cables, and also has a better quality picture than
COMPOSITE and S.VIDEO signals.
The COMPONENT connectors are usually RCA (x3), or
BNC (x3).
RGBS VIDEO SOURCES:
This signal is widely used in broadcasting and is available
on European DVD player. The RGB/S signal is transmitted
with 4 coaxial cables, and also has a better picture quality
than COMPOSITE and S.VIDEO signals. The RGB/S
connectors are usually BNC connectors for Broadcasting
equipment, and SCART connector for DVD players.

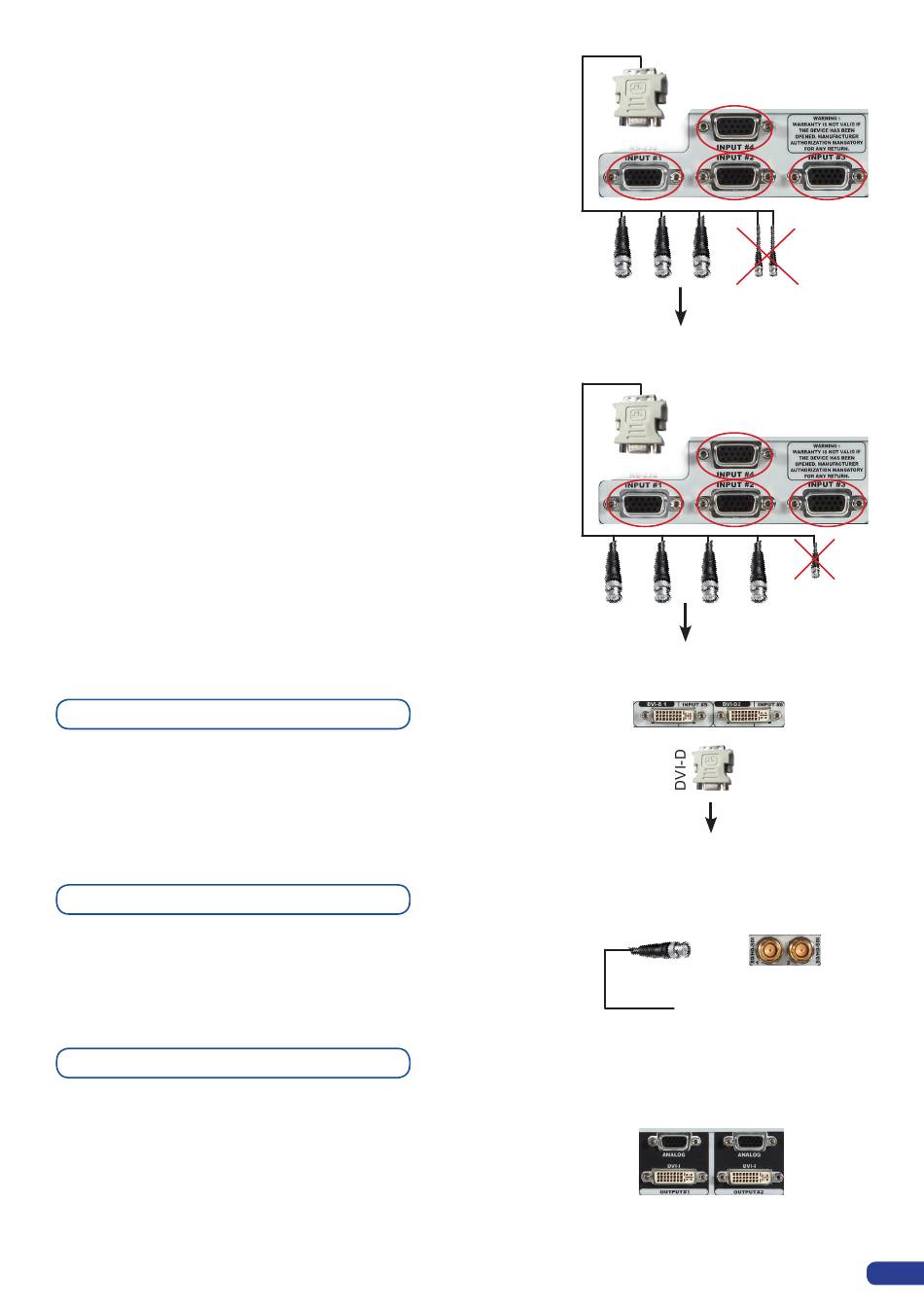

For inputs #1 to #4: connect a HD15 to 4 x BNC cable
between the HD15 connector of the device and your
RGB/S source.
DVI Inputs #1 & #2
DVI AND ANALOG SOURCES:
DVI Inputs #1- #2 on the
in Digital format.
DVI-I: 1 x digital (DVI) and 1 x analog input on female
DVI-I universal connector.
SD/HD-SDI Inputs #1 & #2
SD/HD-SDI SOURCES:
SD/HD-SDI Inputs #1- #2 on the
sources in Digital formats.
SD/HD-SDI: 1 x digital input on female BNC connector.
Output #1 & Output #2
ANALOG:
DIGITAL/ANALOG:
Output #1: Left side of image.
Output #2: Right side of image.
STE100 accept up to 2 live sources
STE100
accept up to 2 live
1 x analog output for the main display
device on female HD15 connector.
1 x main output on female DVI-I
connector (simultaneous analog and
digital).
R G B
Component (YUV) Source
R G B S
RGBS Source
Analog Computer Source
BNC
HD/SDI Source
21
