Installation; Wiring Diagram Without Oem Remote Start And With T-Harness (Thfon2 Rev.2) - Directed DS3 Installation Manual

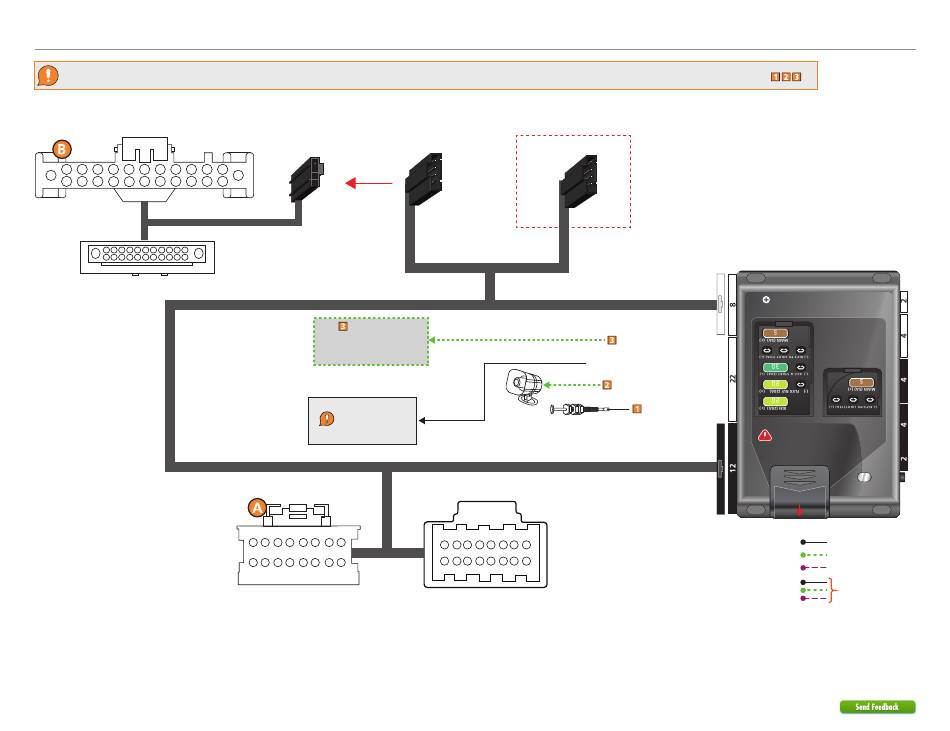

Wiring diagram without OEM Remote Start and
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram (
Gateway Module
(on OBDII connector or
right of steering column)
THFON2 Rev. 2
(optional T-Harness)
6 933.FORD12 1.60.195.3 2017 Ford Edge (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.
with T-Harness (THFON2 Rev. 2)
Type 1
4-pin
connectors
Refer to the
Starter disable connection
section for relay and
connection details.
Refer to 'Vehicle
connections' for
wire and connector
details.
Headlight Switch
Type 2
NOT USED
8-pin White Connector
(-) GWA Output: Blue/White: 2
(-) Trunk Release Output: Red/White: 4
(+) Siren Output: Brown/Red: 11
Siren Hood Pin
(-) Hood Input: Gray: 21
12-pin Black Connector
).
A module can also be used for
this installation.
IMPORTANT:
Position the
fuses correctly!
Slide to open
Legend:
Mandatory Connections
Security Only
Remote Start Only
Remote Start + Security
