Wiring Diagram With Oem Remote Start And Without T-Harness - Directed DS3 Installation Manual

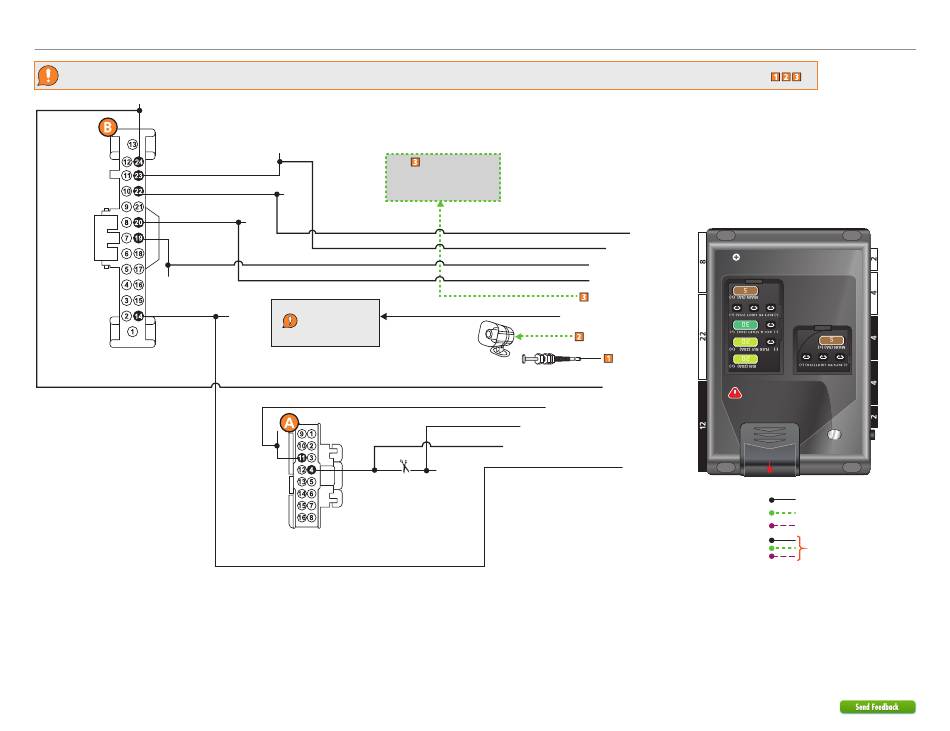

Wiring diagram with OEM Remote Start and
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram (
(+)12V: Pin 24
CAN 2 High:
Gray/Orange or Orange, pin 23
CAN 2 Low:
Violet/Orange or Violet, pin 22
CAN 1 High:
White/Blue or Blue, pin 20
CAN 1 Low:
White, pin 19
(-) Ground: Pin 14
Gateway Module
(on OBDII connector or
right of steering column)
11 933.FORD12 1.60.195.3 2017 Ford Edge (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.
without T-Harness
Starter disable connection
section for relay and
Refer to 'Vehicle
connections' for
wire and connector
details.
Cut
(-) Parking Lights:
Gray or Yellow,
Parking Light Interrupt: Pin 4
pin 11
Headlight Switch
Refer to the
connection details.
(-) Trunk Release Output: Red/White: 4
(+) Siren Output: Brown/Red: 11
Hood Pin
Siren
(-) Parking Lights Output: Lt. Green/Red: 7
Parking Lights Interrupt (vehicle side): Lt. Green: 8
Parking Lights Interrupt (conn. side): Lt. Green/White: 9
CAN 2 Low: Tan: 1
CAN 2 High: Tan/Black: 2
A module can also be used for
CAN 1 Low: Orange/Brown: 3 this installation.
CAN 1 High: Orange/Green: 4
(-) GWA Output: Blue/White: 2
(-) Hood Input: Gray: 21
(+) 12V Input: Red: 6 & 12
IMPORTANT:
Position the
fuses correctly!
Slide to open
(-) Ground: Black: 10
Legend:
).
Mandatory Connections
Security Only
Remote Start Only
Remote Start + Security
