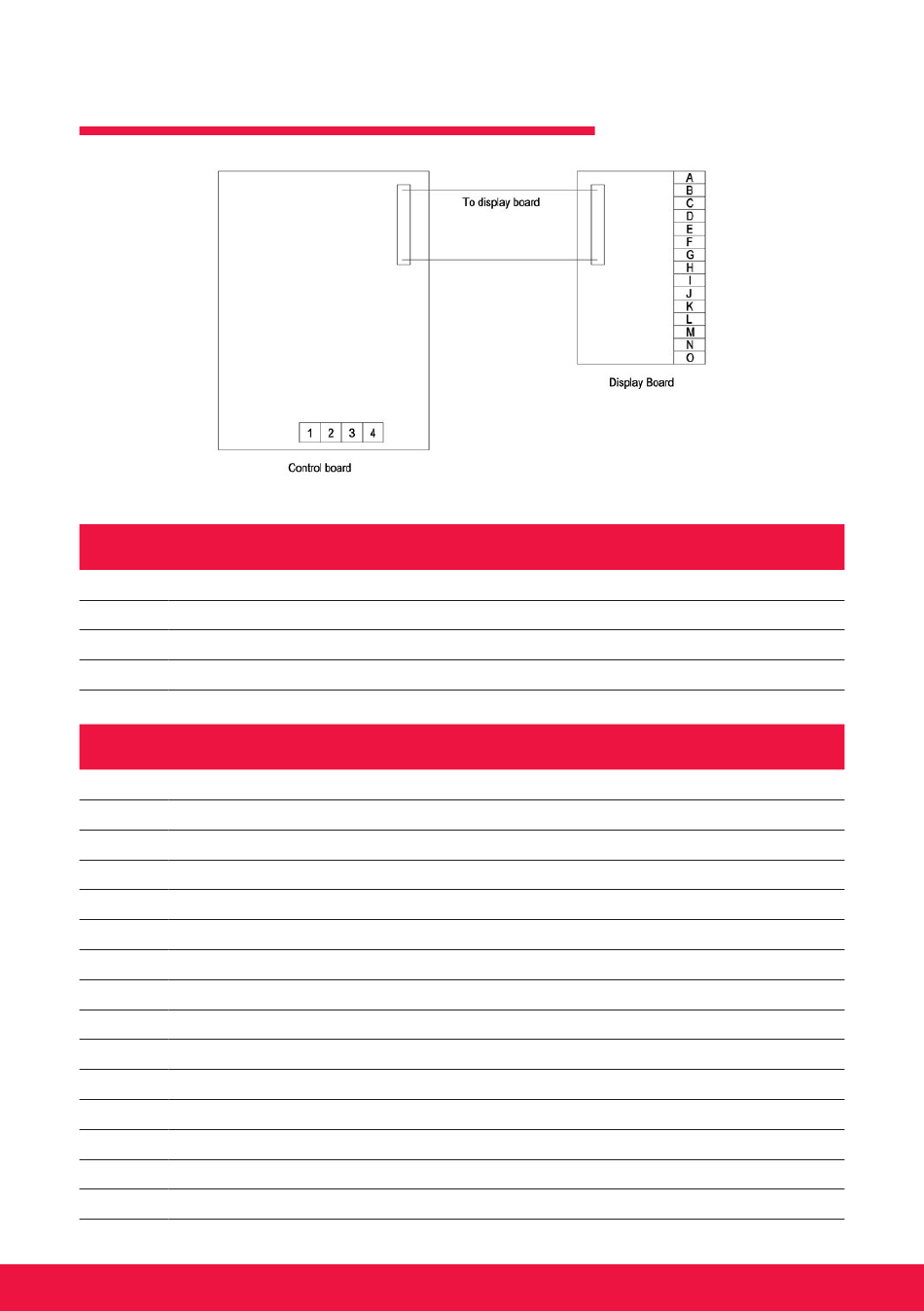

WIRING DIAGRAM

No. Function
1 Mains Neutral Input
2 Motor Neutral Output
3 Motor Live Outpur
4 Mains Live Input
No. Function
A Motor 'Stop' Switch 0V
B Motor 'Stop' Switch +5V
C Motor 'Start' Switch 0V
D Motor 'Start' Switch +5V
E N/A
F N/A
G Magnet 'ON' LED +5V
H Magnet 'ON' LED +5V
I Magnet 'ON' LED 0V
J N/A
K N/A
L Motor 'Stop' LED 0V (Red)
M Motor 'Stop' LED +12V (Red)
N Motor 'Start' LED 0V (Green)
O Motor 'Start' LED +12V (Green)
Wire Colour
Blue
Black
Red
Brown
Wire Colour
White
White
White
White
White + Green
White + Red
White + Brown
White
White
White
White
