EXTENSION CABLE SELECTION

The machines are factory fitted with a 3-metre length of cable having three conductors 1.5mm²
LIVE, NEUTRAL and EARTH. If it becomes necessary to fit an extension cable from the power
source, care must be taken in using a cable of adequate capacity. Failure to do so will result in a
loss of traction by the magnet and a reduction of power from the motor.
Should the mains cable become damaged and need replacing, please ensure this is carried out
only be an approved Rotabroach Engineer.
Assuming a normal AC supply of the correct voltage, it is recommended that the following
extension lengths shall not be exceeded:
For 110v supply: 3.5metres of 3 core x 1.5mm²
For 230v supply: 26metres of 3 core x 1.5mm²
ALWAYS DISCONNECT THE MACHINE FROM THE POWER SOURCE

MOUNTING OF CUTTERS

The machine has been made to accept cutters having 19.05mm (3/4") dia. Weldon shanks.
The following procedure is to be used when mounting cutters:
• Lay the machine on its side with feed handles uppermost, ensuring arbor is wound down to its
lowest point to enable access to socket screws RD4066.
• Take appropriate pilot and place through the hole in cutter shank. Insert shank of cutter into
bore of arbor, ensuring alignment of two drive flats with socket screws.
• Tighten both screws using hexagon key.

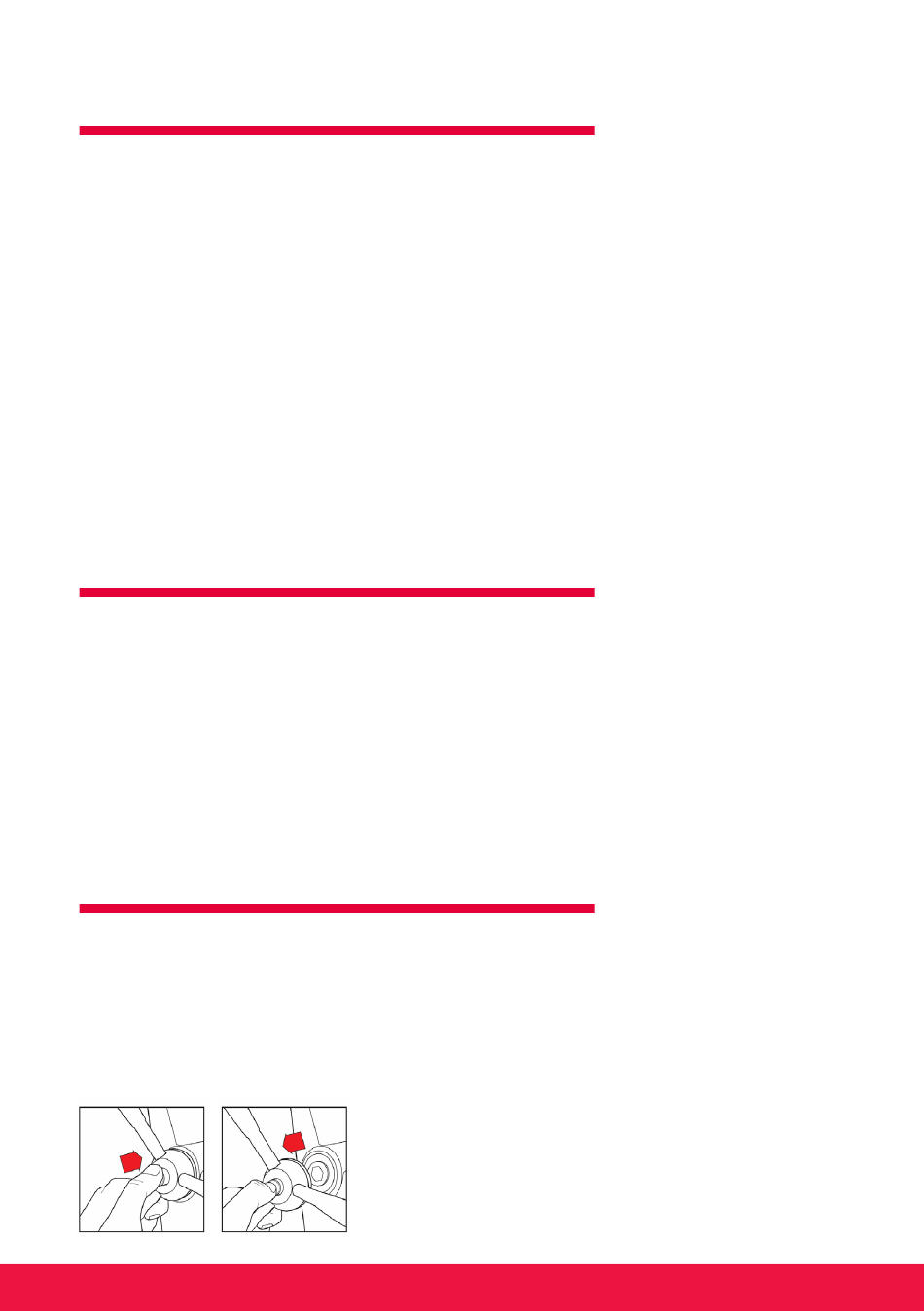

CAPSTAN OPERATION

The quick release capstan is a feature offers that offers the user simple dual side operation.
To remove the capstan, simply do the following:
1. Press in the central button on the capstan hub, holding onto the capstan arms.
2. With the button pressed in, pull the capstan away from the main body, holding on to the
capstan arms.
3. Re-insert the hexagonal shaft into the hexagonal slot to attach the capstan.
12
BEFORE CHANGING CUTTERS
