Issue 5

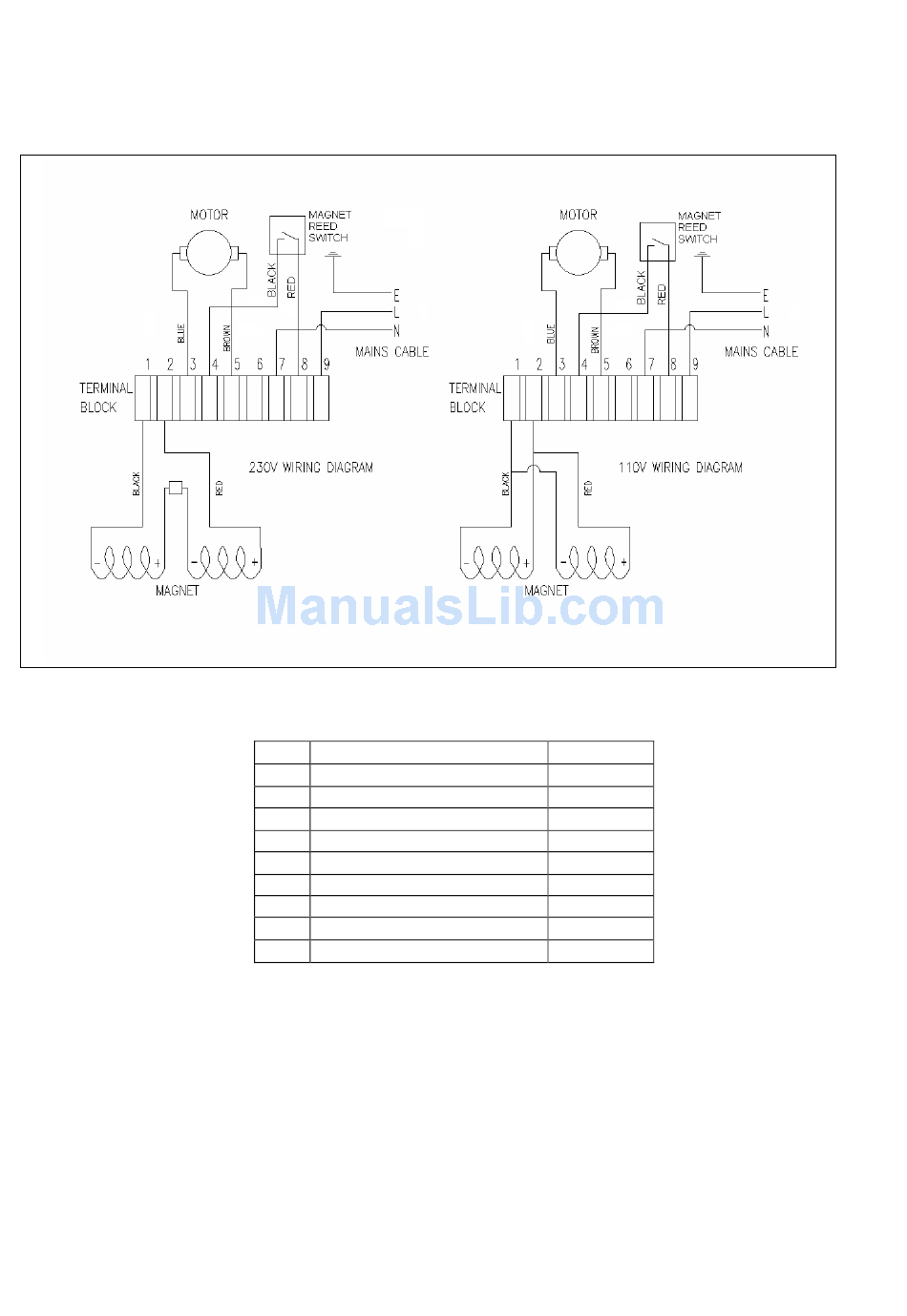

8) WIRING DIAGRAM

Original version
No
Function
1
Magnet 1- (110v & 230v Magnet)
2
Magnet 2+ (110v & 230v Magnet)
3
Motor
4
Magnet reed switch
5
Motor
6
N/C
7
Mains (Neutral)
8
Magnet reed switch
9
Mains (Live)
Wire Colour
Black
Red
Blue
Black
Brown
Blue
Red
Brown
10
Nov 2014
