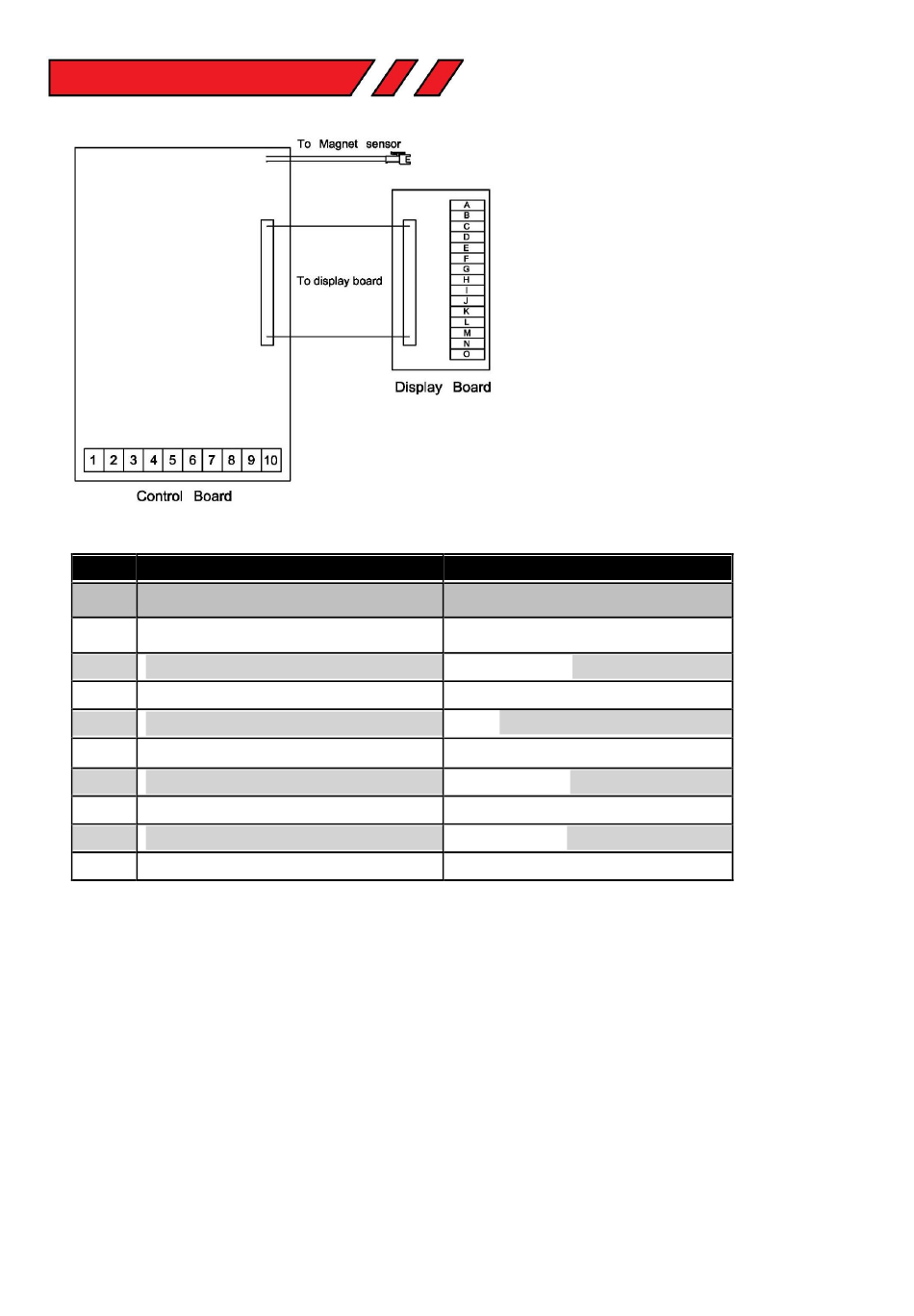

16)WIRING DIAGRAM

No Function
1 Mains Live Input
2 Speed controller module Lead wire
3 Speed controller module Lead wire
4 Mains Neutral Input
5 Magnet Positive Output
6 Magnet Negative Output
7 Field coil Lead wire
8 Field coil Lead wire
9 Carbon brush Lead wire
10 Carbon brush Lead wire
Original Instructions
Wire Colour
15
Brown
White
Red
Blue
230V Red，110V Blue
Black
Blue
Green
Black
Brown
Dec2016
