Wiring Diagram - Rotabroach ELEMENT 50 LOW PROFILE 1 Manual

Element 50 Low Profile Manual

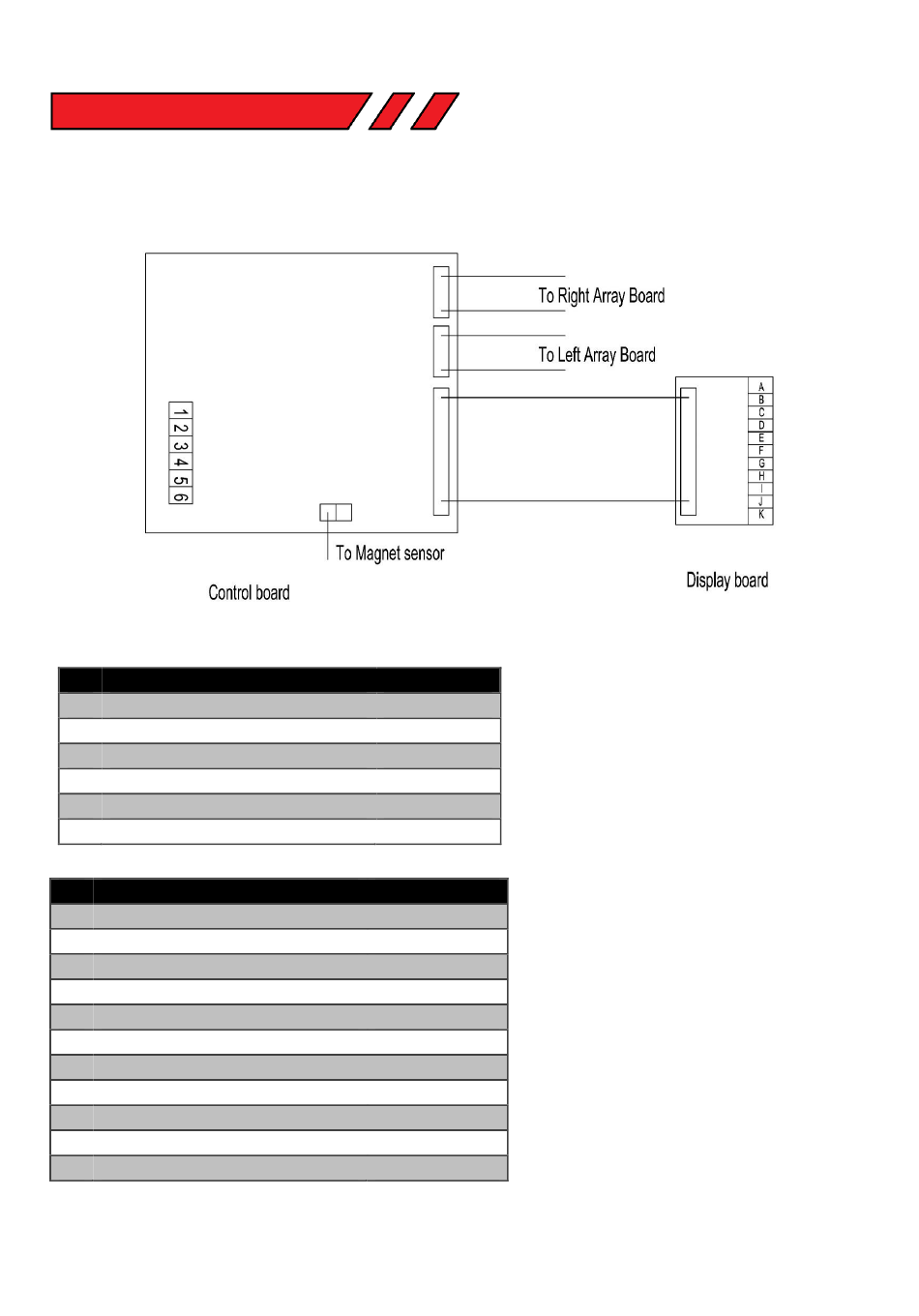

11) WIRING DIAGRAM

No Function
1 Magnet Negative Output
2 Magnet Positive Output
3 Mains Neutral Input
4 Motor Neutral Output
5 Motor Live Output
6 Mains Live Input
No Function
A Motor Switch 0V
B Motor Switch +5V (Green)
C Magnet Switch 0V
D Magnet Switch +5V
E Motor LED +12V
F Motor LED 0V
G Magnet 'ON' LED 0V
H Magnet 'ON' LED +5 V
I Magnet 'ON' LED 0V
J Power 'ON' LED +5V
K Power 'ON' LED
Original instructions
Wire Colour
Black
Red
Blue
Red
Red
Brown
Wire Colour
White
White
White
White
White
White
White+ Green
White+Brown
White+ Red
White+Brown
0V White+Black
11
2019
