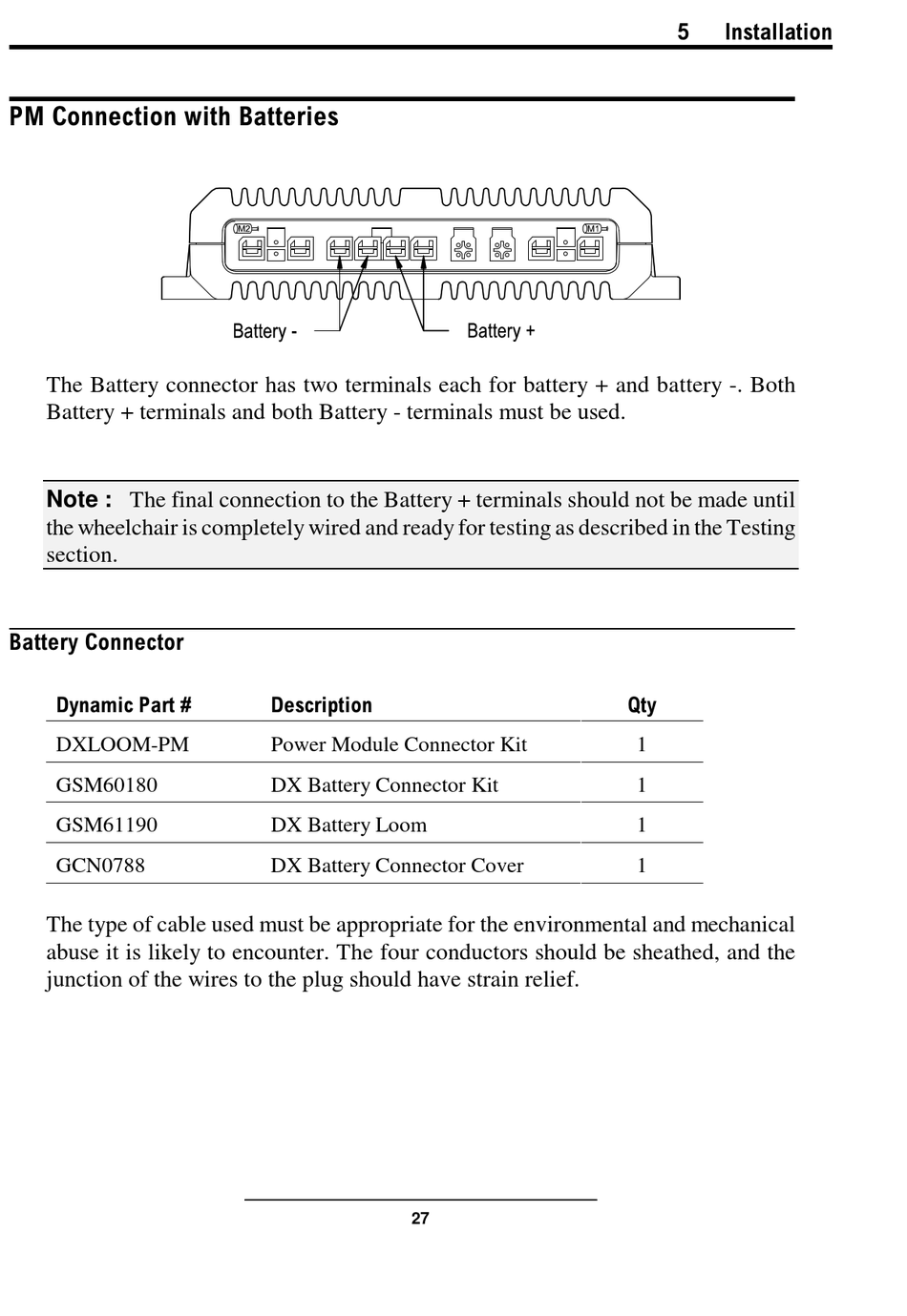

30 &RQQHFWLRQ ZLWK %DWWHULHV
The Battery connector has two terminals each for battery + and battery -. Both
Battery + terminals and both Battery - terminals must be used.
Note : The final connection to the Battery + terminals should not be made until
the wheelchair is completely wired and ready for testing as described in the Testing
section.
%DWWHU\ &RQQHFWRU
'\QDPLF 3DUW
DXLOOM-PM
GSM60180
GSM61190
GCN0788
The type of cable used must be appropriate for the environmental and mechanical
abuse it is likely to encounter. The four conductors should be sheathed, and the
junction of the wires to the plug should have strain relief.
'HVFULSWLRQ
Power Module Connector Kit
DX Battery Connector Kit
DX Battery Loom
DX Battery Connector Cover
27
 ,QVWDOODWLRQ
4W\
1
1
1
1
