,QVWDOODWLRQ
30 &RQQHFWLRQ ZLWK WKH '; 6\VWHP

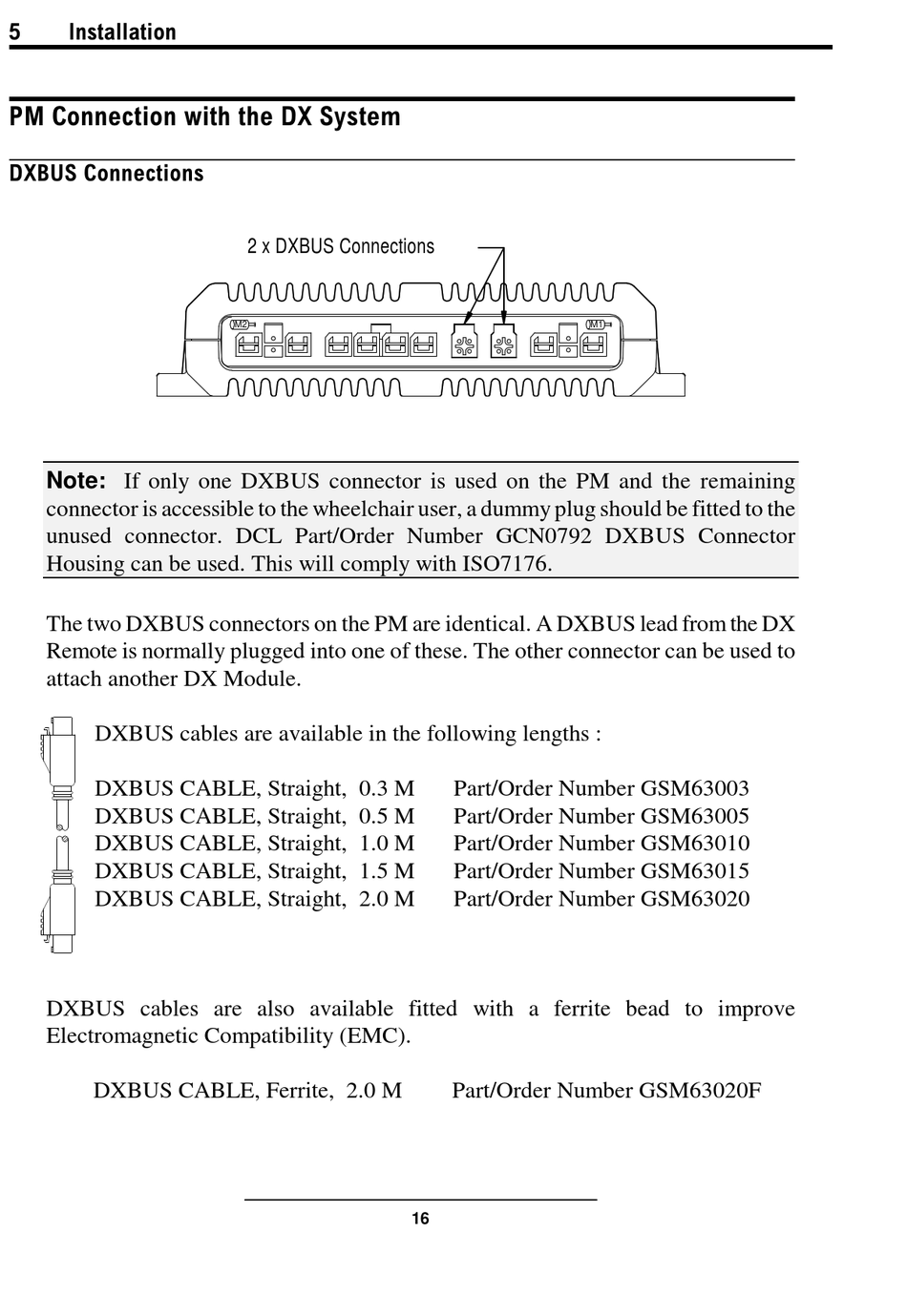

';%86 &RQQHFWLRQV
Note: If only one DXBUS connector is used on the PM and the remaining
connector is accessible to the wheelchair user, a dummy plug should be fitted to the
unused connector. DCL Part/Order Number GCN0792 DXBUS Connector
Housing can be used. This will comply with ISO7176.
The two DXBUS connectors on the PM are identical. A DXBUS lead from the DX
Remote is normally plugged into one of these. The other connector can be used to
attach another DX Module.
DXBUS cables are available in the following lengths :
DXBUS CABLE, Straight, 0.3 M
DXBUS CABLE, Straight, 0.5 M
DXBUS CABLE, Straight, 1.0 M
DXBUS CABLE, Straight, 1.5 M
DXBUS CABLE, Straight, 2.0 M
DXBUS cables are also available fitted with a ferrite bead to improve
Electromagnetic Compatibility (EMC).
DXBUS CABLE, Ferrite, 2.0 M
2 x DXBUS Connections
M2
Part/Order Number GSM63003
Part/Order Number GSM63005
Part/Order Number GSM63010
Part/Order Number GSM63015
Part/Order Number GSM63020
Part/Order Number GSM63020F
16
M1
