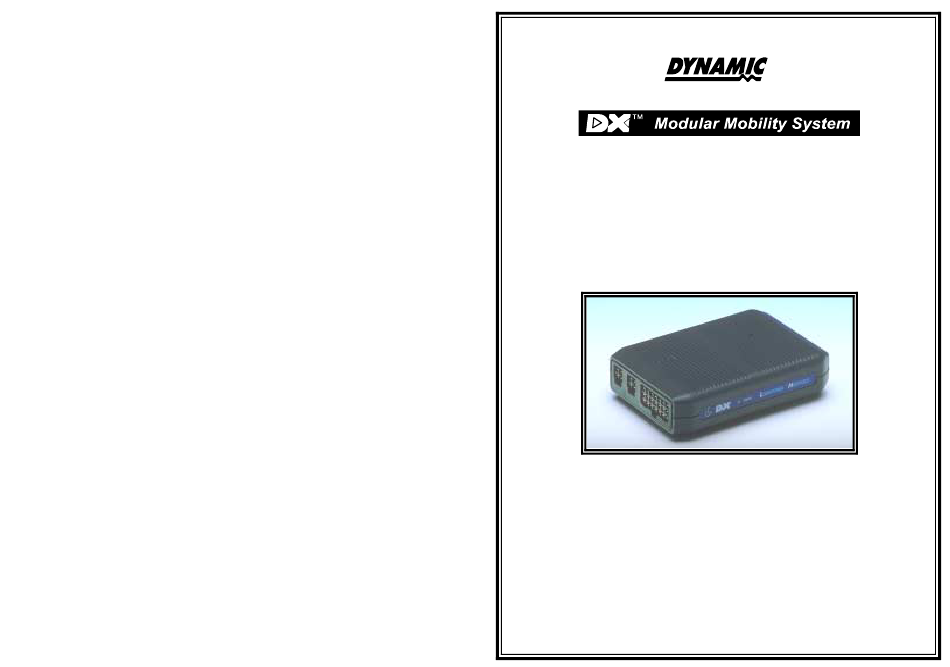

DX 12V Lighting Module
Installation Manual
Order/Part Number for this Manual : GBK60011 issue 8
Important Notes
1.
Read this Manual carefully before installing or operating your DX control system.
2.
Due to continuous product improvement Dynamic reserves the right to update this Manual.
This Manual supersedes all previous issues which must not continue to be used.
3.
Any attempt to gain access to or in any way abuse the electronic components and
associated assemblies that make up the wheelchair control system renders the
Manufacturer's Warranty void and the Manufacturer free from liability.
No. 60011, Issue 8. October 1998
TM
