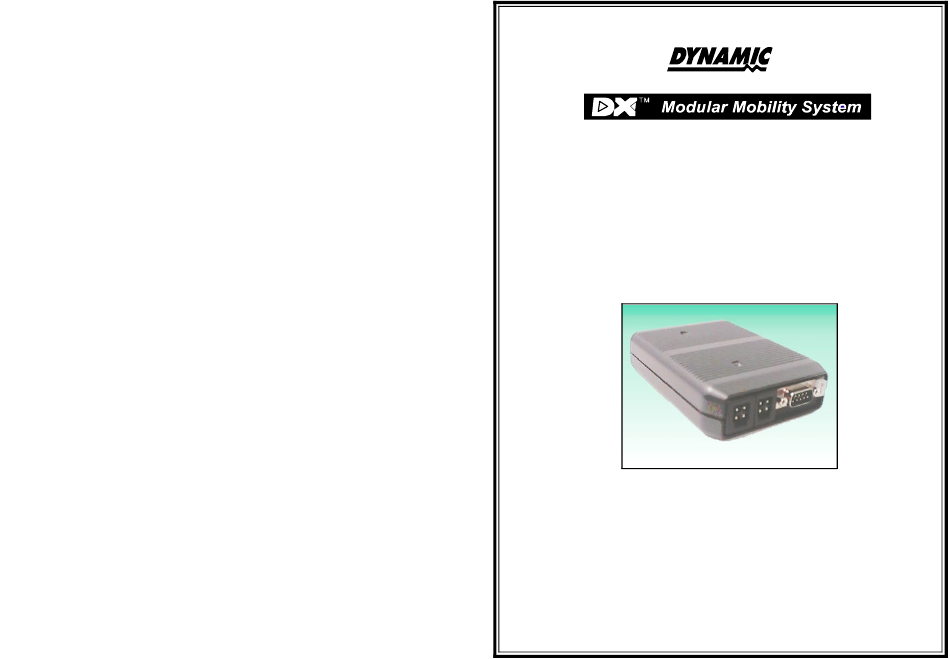

DX Environmental Control Unit
(Part No. DX-ECU)
Installation Manual
Order/Part Number for this Manual : GBK64227 issue 3
Important Notes
1.
Read this Manual carefully before installing or operating your DX control system.
2.
Due to continuous product improvement Dynamic reserves the right to update this Manual.
This manual supersedes all previous issues which must not continue to be used.
3.
Any attempt to gain access to or in any way abuse the electronic components and associated
assemblies that make up the wheelchair control system renders the Manufacturer' s Warranty void
and the Manufacturer free from liability.
No. 64227, Issue 3. August 1998
TM
Advertisement
Table of Contents
Related Manuals for Dynamic DX-ECU
Summary of Contents for Dynamic DX-ECU
- Page 1 Important Notes Read this Manual carefully before installing or operating your DX control system. Due to continuous product improvement Dynamic reserves the right to update this Manual. This manual supersedes all previous issues which must not continue to be used.
-
Page 2: Table Of Contents
Warranty ....... . . 12 Sales and Service Information ....13 © Copyright Dynamic Controls Ltd. 1998... -
Page 3: Introduction
This Manual describes the installation of the Environmental Control Unit (ECU) only and should be read in conjunction with the: • DX Specialty Controls Remote (SCR) Installation Manual • Installation Manuals for all other DX Modules to be used in your system. © Copyright Dynamic Controls Ltd. 1998... -
Page 4: Product Description
SCR, by any DX compatible input device. A 2-pin Molex socket is used to select between ECU1 and ECU2 (see pages 7 & 8 for connections). Note : An ECU can only be used in conjunction with an SCR. © Copyright Dynamic Controls Ltd. 1998... -
Page 5: Installation
GBK64227 - Issue 3 : August 1998 NSTALLATION Electromagnetic Compatibility (EMC) Dynamic Electronic Controllers have been tested on typical vehicles to confirn compliance with the following appropriate EMC standards: Emissions: CISPR22, class B Susceptibility: IEC1000-4-3 ESD: IEC1000-4-2 Compliance levels and set-up as per ISO 7176, part 21. -
Page 6: General
Typically water proofing is achieved by a sensible choice of mounting position and / or addition of a water shielding cover. The ECU should be mounted in a position that is not exposed to mechanical abuse. © Copyright Dynamic Controls Ltd. 1998... -
Page 7: Securing The Ecu
DX Aux. Mod. Tube Clamp A : GME 60526 Plastite Screws (x2) Tubes 18 - 21 mmØ : GSC 0175 Tubes 21 - 24 mmØ : GSC 0180 Round or Square Tube Mounting Chassis Mounting © Copyright Dynamic Controls Ltd. 1998... - Page 8 GBK64227 - Issue 3 : August 1998 M5 x 12 CSK (x2) GSC 0053 DX Aux. Mod. Lock GME 60525 DX Aux. Mod. Mounting Bracket (on ECU) Another DX Auxiliary Module Mounting on other Auxiliary Modules © Copyright Dynamic Controls Ltd. 1998...
-
Page 9: Ecu Connection To The Dx System
EC D 4 L e ft Click EC D 6 C o m mo n E C U C o mm on Figure 7 - ECU DB9 Connections (mouse) Figure 8 - Mouse Mover Connections © Copyright Dynamic Controls Ltd. 1998... -
Page 10: Molex Connector
Molex plug is inserted) and the relevant LED is lit. Note : Care should be taken when looming for the ECU and other DX modules that wires can not be transposed. © Copyright Dynamic Controls Ltd. 1998... -
Page 11: Maintenance
Warning : If any DX component is damaged in any way, or if internal damage may have occurred (for example by being dropped), have it checked by qualified personnel before operating. © Copyright Dynamic Controls Ltd. 1998... -
Page 12: Safety And Misuse Warnings
RFI does not cause problems, very strong signals could still cause a problem. If RFI causes erratic behaviour, shut the wheelchair off immediately. Leave off while transmission is in progress. © Copyright Dynamic Controls Ltd. 1998... -
Page 13: Disclaimer
Dynamic Controls Ltd. relieves a wheelchair / scooter manufacturer from compliance testing their particular vehicles. If Dynamic Controls Ltd. controllers are fitted to vehicles or applications other than wheelchairs or scooters, testing to appropriate standards for the particular application must be completed as ISO7176 may be inappropriate. -
Page 14: Warranty
GBK64227 - Issue 3 : August 1998 ARRANTY All equipment supplied by Dynamic Controls Ltd is warranted by the company to be free from faulty materials or workmanship. If any defect is found within the warranty period, the company will repair the equipment, or at its discretion, replace the equipment without charge for materials and labour. -
Page 15: Sales And Service Information
Telephone: Int. 44 1562 820 055 Lisle Avenue Fax: Int. 44 1562 742 720 Kidderminster DY11 7DL United Kingdom Note : The controller should be clearly labelled with the manufacturer's service agent's telephone number. © Copyright Dynamic Controls Ltd. 1998...
