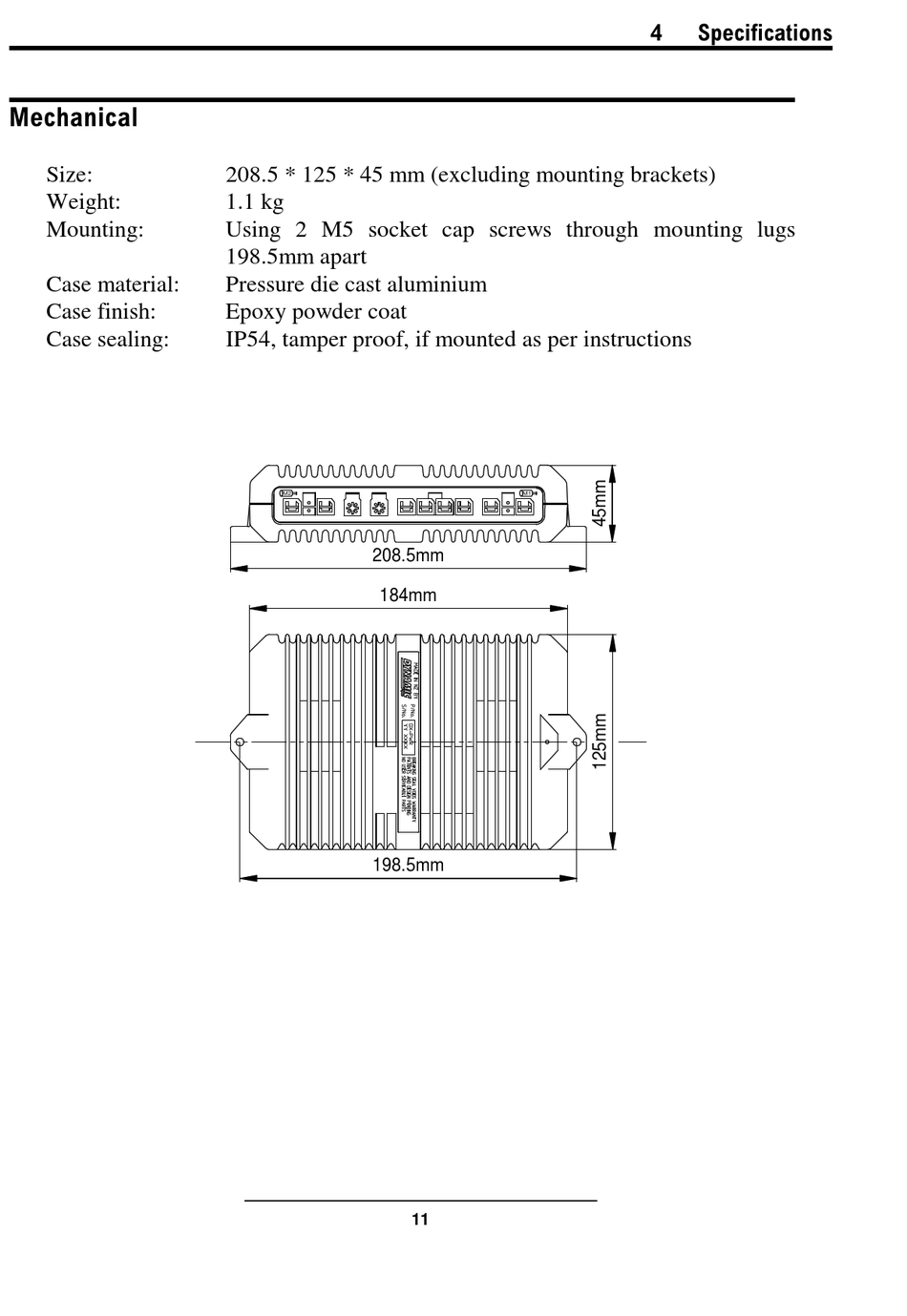

0HFKDQLFDO
Size:
Weight:
Mounting:
Case material:
Case finish:
Case sealing:
208.5 * 125 * 45 mm (excluding mounting brackets)
1.1 kg
Using 2 M5 socket cap screws through mounting lugs
198.5mm apart
Pressure die cast aluminium
Epoxy powder coat
IP54, tamper proof, if mounted as per instructions
M2
208.5mm
184mm
198.5mm
M1
11

6SHFLILFDWLRQV
