*HQHUDO

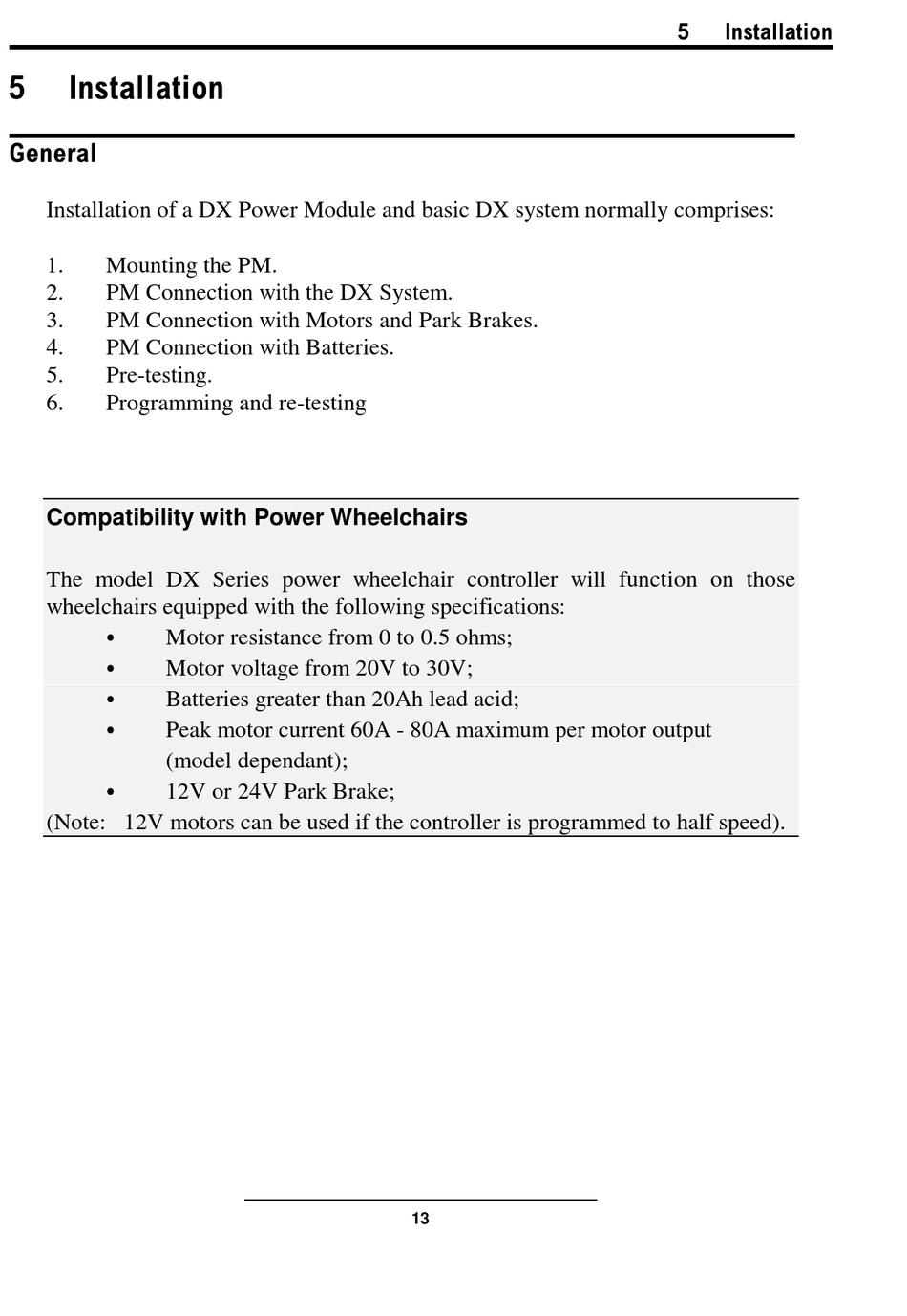

Installation of a DX Power Module and basic DX system normally comprises:
1.
Mounting the PM.
2.
PM Connection with the DX System.
3.
PM Connection with Motors and Park Brakes.
4.
PM Connection with Batteries.
5.
Pre-testing.
6.
Programming and re-testing
Compatibility with Power Wheelchairs
The model DX Series power wheelchair controller will function on those
wheelchairs equipped with the following specifications:
C
Motor resistance from 0 to 0.5 ohms;
C
Motor voltage from 20V to 30V;
C
Batteries greater than 20Ah lead acid;
C
Peak motor current 60A - 80A maximum per motor output
(model dependant);
C
12V or 24V Park Brake;
(Note: 12V motors can be used if the controller is programmed to half speed).
13
,QVWDOODWLRQ
