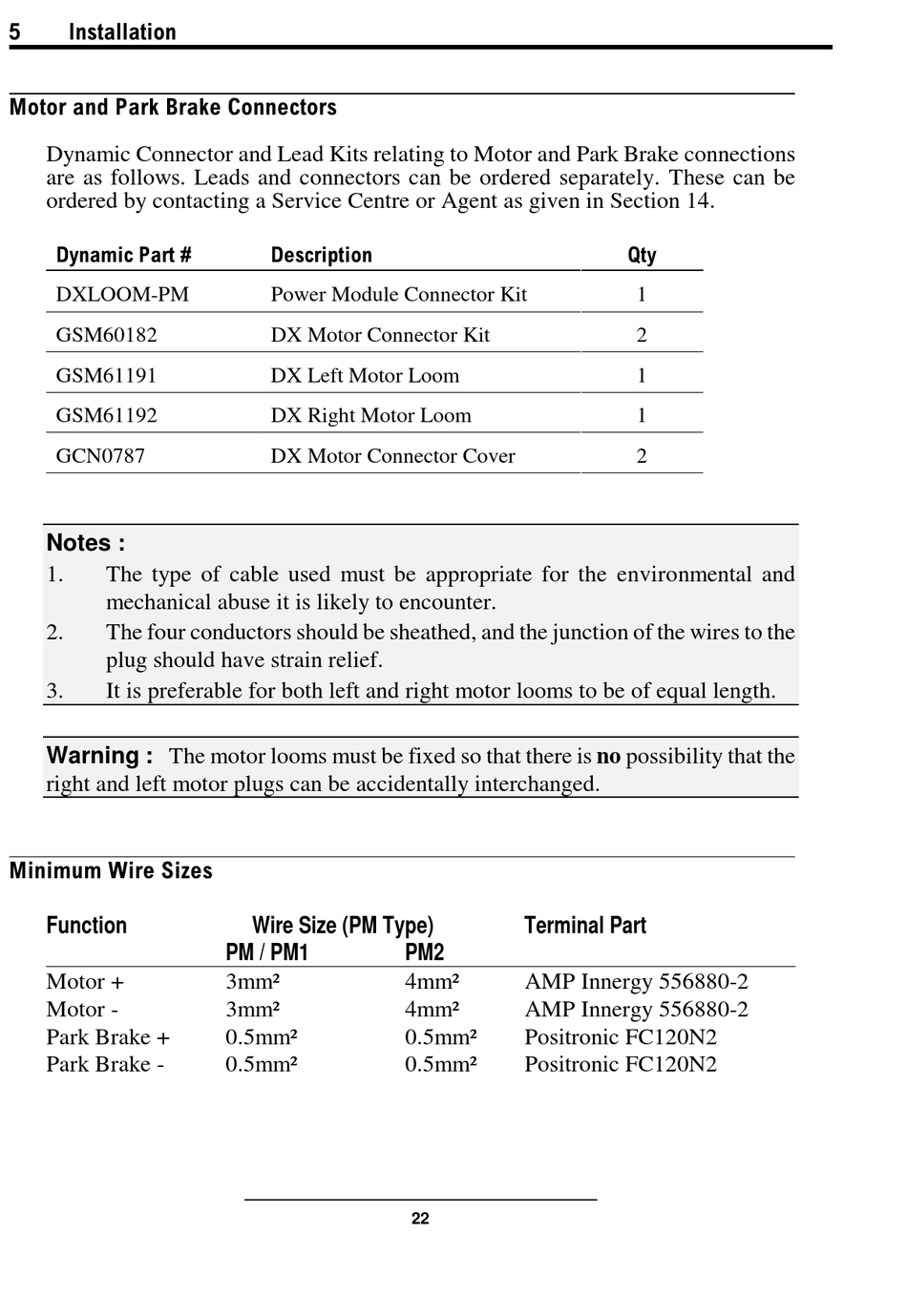

,QVWDOODWLRQ
0RWRU DQG 3DUN %UDNH &RQQHFWRUV
Dynamic Connector and Lead Kits relating to Motor and Park Brake connections
are as follows. Leads and connectors can be ordered separately. These can be
ordered by contacting a Service Centre or Agent as given in Section 14.
'\QDPLF 3DUW
DXLOOM-PM
GSM60182
GSM61191
GSM61192
GCN0787
Notes :
1.
The type of cable used must be appropriate for the environmental and
mechanical abuse it is likely to encounter.
2.
The four conductors should be sheathed, and the junction of the wires to the
plug should have strain relief.
3.
It is preferable for both left and right motor looms to be of equal length.
Warning : The motor looms must be fixed so that there is no possibility that the
right and left motor plugs can be accidentally interchanged.
0LQLPXP :LUH 6L]HV
Function
Motor +
Motor -
Park Brake +
Park Brake -
'HVFULSWLRQ
Power Module Connector Kit
DX Motor Connector Kit
DX Left Motor Loom
DX Right Motor Loom
DX Motor Connector Cover
Wire Size (PM Type)
PM / PM1
3mm²
3mm²
0.5mm²
0.5mm²
Terminal Part
PM2
4mm²
AMP Innergy 556880-2
4mm²
AMP Innergy 556880-2
0.5mm²
Positronic FC120N2
0.5mm²
Positronic FC120N2
22
4W\
1
2
1
1
2
