5.6 AWG Register Screen

The AWG Register screen shown in
lows access to the following AWG registers:
- AWG Broadcast
- AWG Enable
- AWG Overflow Interrupt Enable
- AWG Overflow Interrupt Status
- AWG Phase Address
- AWG Phase Data.
16
The AWG Phase Address Register is broken up
into two easy-to-use data input boxes: the Chan
Figure 23 al-
Address (i.e., channel address) and the Sample
Address. For example, to access the AWG func-
tion for channel 5, write 05 into the Chan Address
input box. This is the same for every channel. The
Chan Address, Sample Address, and Phase Data
input boxes use the values discussed in the AWG
section of the CS61880 Data Sheet.

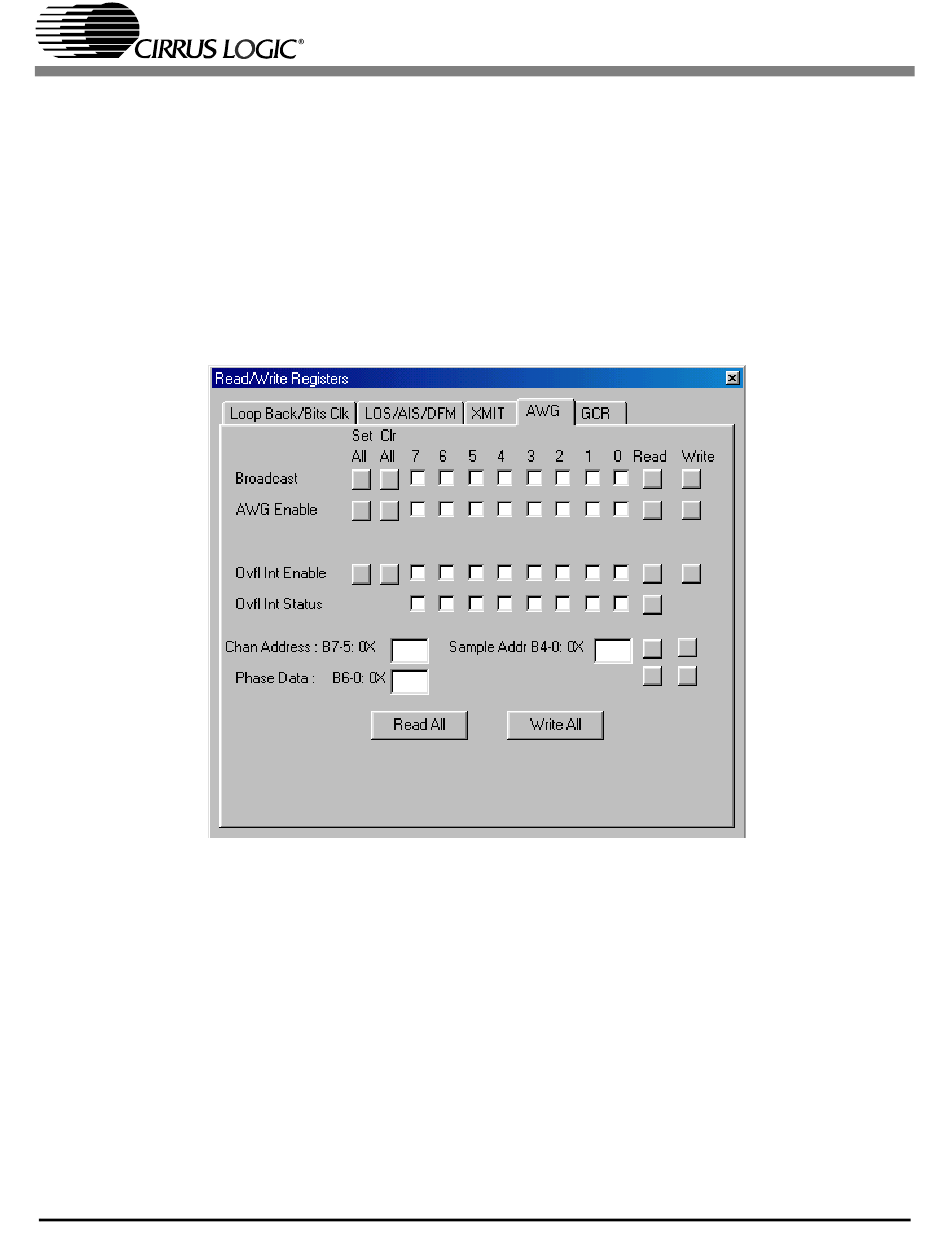

Figure 23. AWG Registers Screen
