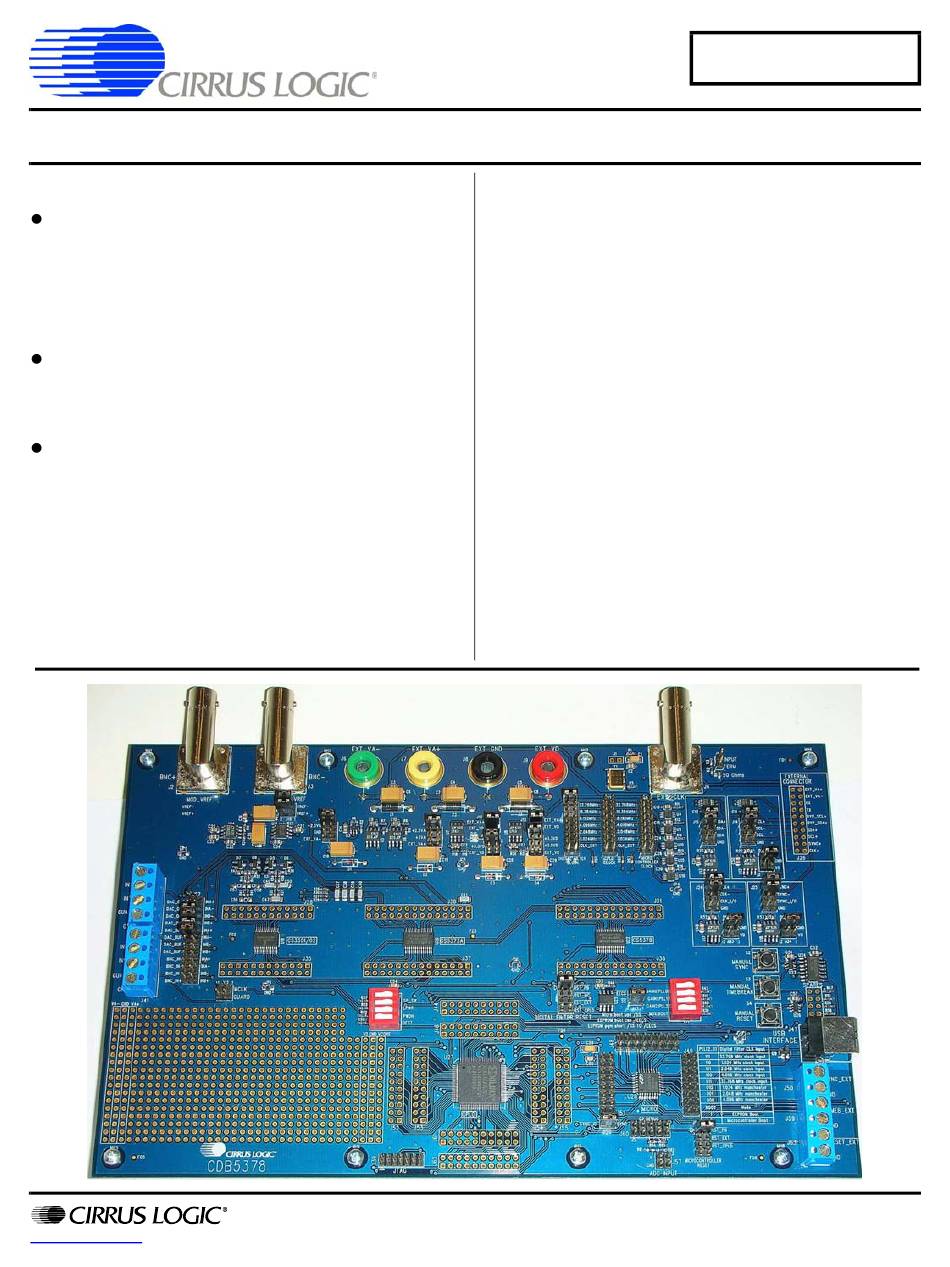

Single-channel Seismic Evaluation System
Features
Single-channel Seismic Acquisition Node
– CS3301A geophone amplifier
– CS5373A ∆Σ modulator + test DAC
– CS5378 digital filter + PLL
– Precision voltage reference
On-board Microcontroller
– SPI™ interface to digital filter
– USB communication with PC
PC Evaluation Software
– Register setup & control
– FFT frequency analysis
– Time domain analysis
– Noise histogram analysis
www.cirrus.com

General Description

The CDB5378 board is used to evaluate the functionality
and performance of the Cirrus Logic single-channel seis-
mic chip set. Data sheets for the CS3301A, CS5373A,
and CS5378 devices should be consulted when using
the CDB5378 evaluation board.
Screw terminals connect an external differential geo-
phone or hydrophone sensor to the analog inputs of the
measurement channel. An on-board test DAC creates
precision differential analog signals for in-circuit perfor-
mance testing without an external signal source.
The evaluation board includes an 8051-type microcon-
troller with hardware SPI™ and USB serial interfaces.
The microcontroller communicates with the digital filter
via SPI and with the PC evaluation software via USB.
The PC software controls register and coefficient initial-
ization and performs time domain, histogram, and FFT
frequency analysis on captured data.
ORDERING INFORMATION
CDB5378
Copyright © Cirrus Logic, Inc. 2007
(All Rights Reserved)
CDB5378
Evaluation Board
NOV '07
DS639DB4
