Features
Requires Only a Digital Signal Source and a
+5 V Power Supply for a Complete Digital-to-
Analog Converter System
Demonstrates Recommended Layout and
Grounding Arrangements
CS8416 Receives S/PDIF, & EIAJ-340-
Compatible Digital Audio
Header for External PCM Audio
Single-ended Stereo Analog Outputs
Power and S/PDIF Error Indicator LEDs
Hardware Controls: +5 V/3.3 V select for VL,
De-emphasis select
Current Sense Resistors for CS4354 Supplies
(VA and VL)
Hardware Controls
Optical S/PDIF
Input
Coaxial S/PDIF
Input
Direct External
Input
http://www.cirrus.com

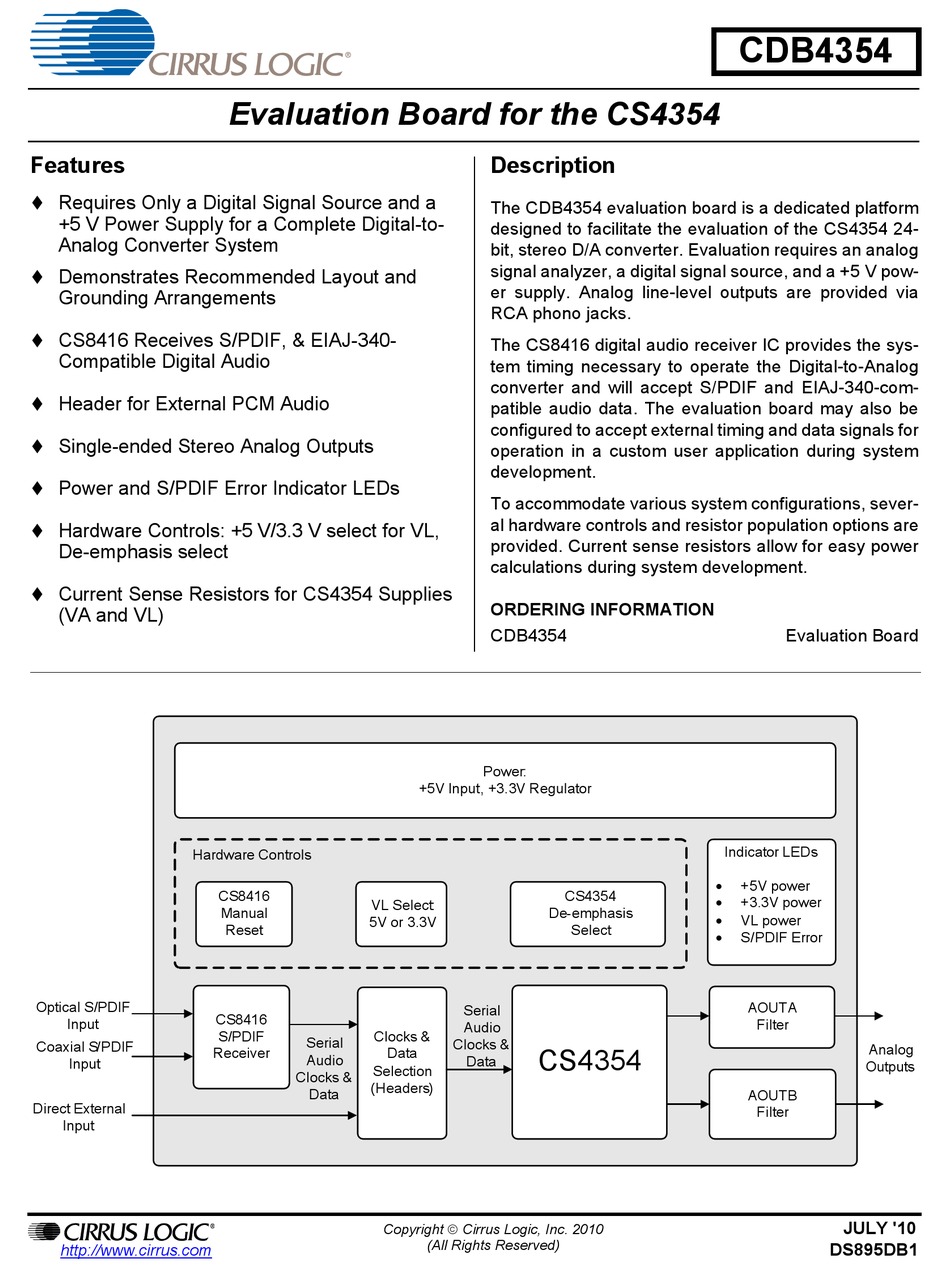

Evaluation Board for the CS4354
CS8416
VL Select:
Manual
5V or 3.3V
Reset
CS8416
S/PDIF
Clocks &
Serial
Receiver
Data
Audio
Selection
Clocks &
(Headers)
Data
Copyright  Cirrus Logic, Inc. 2010
Description
The CDB4354 evaluation board is a dedicated platform
designed to facilitate the evaluation of the CS4354 24-
bit, stereo D/A converter. Evaluation requires an analog
signal analyzer, a digital signal source, and a +5 V pow-
er supply. Analog line-level outputs are provided via
RCA phono jacks.
The CS8416 digital audio receiver IC provides the sys-
tem timing necessary to operate the Digital-to-Analog
converter and will accept S/PDIF and EIAJ-340-com-
patible audio data. The evaluation board may also be
configured to accept external timing and data signals for
operation in a custom user application during system
development.
To accommodate various system configurations, sever-
al hardware controls and resistor population options are
provided. Current sense resistors allow for easy power
calculations during system development.
ORDERING INFORMATION
CDB4354
Power:
+5V Input, +3.3V Regulator
CS4354
De-emphasis
Select
Serial
Audio
Clocks &
CS4354
Data
(All Rights Reserved)
CDB4354
Evaluation Board
Indicator LEDs
+5V power
+3.3V power
VL power
S/PDIF Error
AOUTA
Filter
Analog
Outputs
AOUTB
Filter
JULY '10
DS895DB1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDB4354 and is the answer not in the manual?

Questions and answers

Summary of Contents for Cirrus Logic CDB4354

  • Page 1 Features Description Requires Only a Digital Signal Source and a  The CDB4354 evaluation board is a dedicated platform +5 V Power Supply for a Complete Digital-to- designed to facilitate the evaluation of the CS4354 24- Analog Converter System bit, stereo D/A converter. Evaluation requires an analog...
  • Page 2: Table Of Contents

    ......................7 4. REVISION HISTORY ........................... 11 LIST OF FIGURES Figure 1. CDB4354 Factory Default Jumper Settings ................. 6 Figure 2. System Block Diagram and Signal Flow ..................7 Figure 3. CS8416 and CS4354 ........................8 Figure 4. Power ............................9 Figure 5.
  • Page 3: The Cdb4354 System

    CDB4354 1. THE CDB4354 SYSTEM The CDB4354 is a dedicated platform for evaluating the CS4354. The CS8416 digital audio interface receiver pro- vides an easy interface to digital audio signal sources, including the majority of digital audio test equipment. The evaluation board also allows the user to supply external PCM clocks and data directly to the CS4354 through a head- er block for system development.
  • Page 4 Analog Output Filtering The analog output filter circuitry on the CDB4354 has been designed according to the CS4354 datasheet. This circuit is a first order resistor-capacitor low pass filter with values 470 /2.2 nF, respectively, which sets the -3 dB pole at 154 kHz.
  • Page 5: Board Connections And Settings

    Select not shunted Internal Serial Clock Mode, De-emphasis disabled Table 2. CDB4354 Jumper Pin Block Settings FUNCTION LED is illuminated when the +3.3 V supply is on (+3.3V is derived from the +5V supply by an on-board +3.3V - D1...
  • Page 6: Figure 1. Cdb4354 Factory Default Jumper Settings

    CDB4354 Figure 1. CDB4354 Factory Default Jumper Settings DS895DB1...
  • Page 7: Schematics And Layout

    3. SCHEMATICS AND LAYOUT Power: Figure 4 +5V Input, +3.3V Regulator Indicator LEDs Figure 3 Hardware Controls  +5V power CS8416 CS4354  +3.3V power VL Select: Manual De-emphasis  VL power 5V or 3.3V Reset Select  S/PDIF Error Figure 3 Optical S/PDIF AOUTA...
  • Page 8: Figure 3. Cs8416 And Cs4354

    Figure 3. CS8416 and CS4354...
  • Page 9: Figure 4. Power

    Figure 4. Power...
  • Page 10: Figure 5. Silkscreen Top

    CDB4354 Figure 5. Silkscreen Top Figure 6. Top Side Figure 7. Bottom Side Note: Figure 5, 6, and show the actual size of the CDB4354 if this document is printed on letter-sized paper. DS895DB1...
  • Page 11: Revision History

    TORNEYS’ FEES AND COSTS, THAT MAY RESULT FROM OR ARISE IN CONNECTION WITH THESE USES. Cirrus Logic, Cirrus, and the Cirrus Logic logo designs are trademarks of Cirrus Logic, Inc. All other brand and product names in this document may be trademarks or service marks of their respective owners.
