Connecting Video

1. Turn off your PC and the LCD Monitor before connecting your
LCD Monitor to the computer.
2. Connect one end of the VGA signal cable to the PC's D-sub
VGA port and the other end to the monitor's VGA port. Please
refer to Figure 1-6.
3. If your PC has a graphic card with a 24-pin DVI connector, you
should connect it with the Digital 24-pin DVI signal cable.

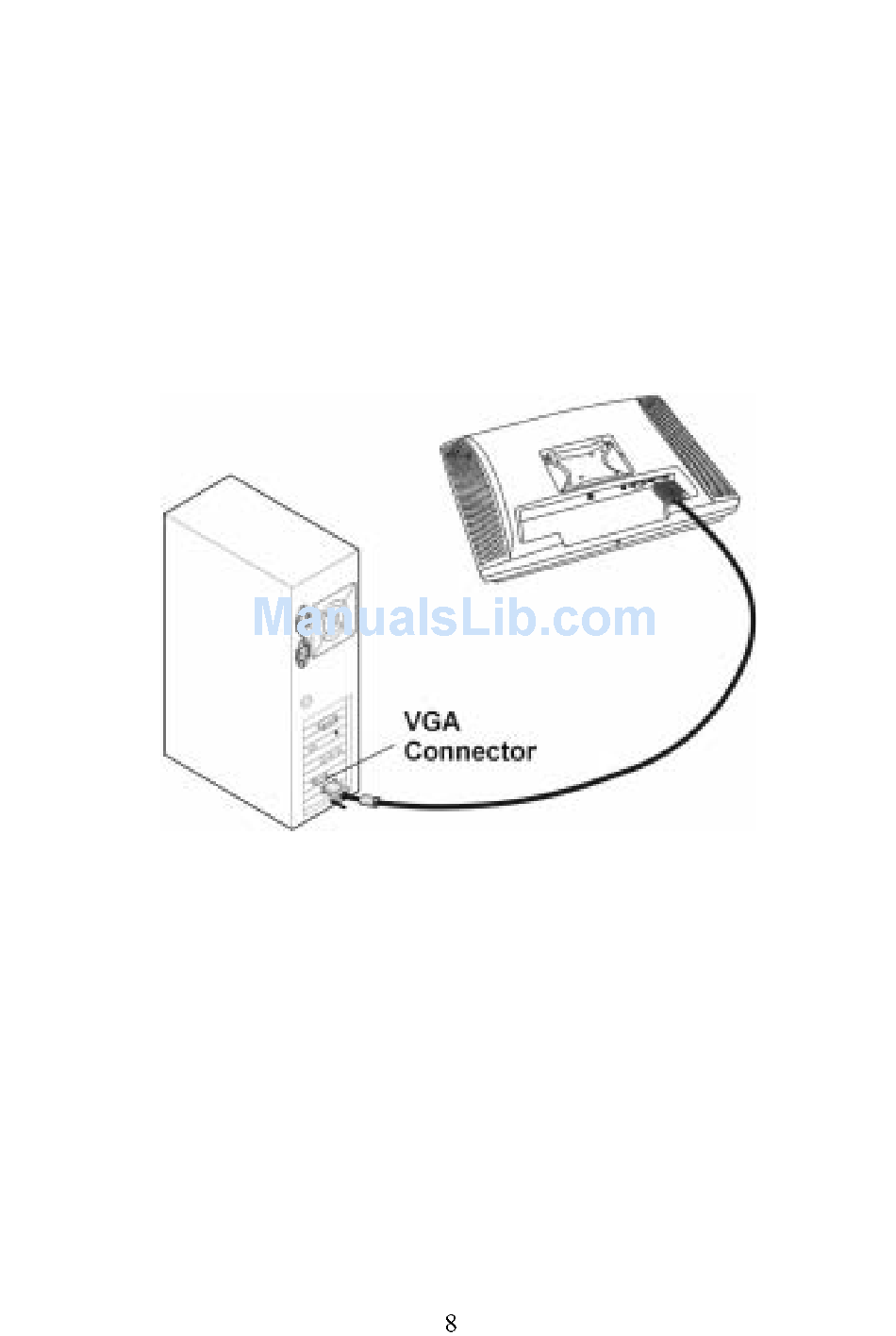

Figure 1-7: Connecting the LCD Monitor to the PC
4. Make sure the signal cable heads are securely connected to
the VGA port (or DVI port) of your PC and Monitor. Tighten the
connecting screws to ensure a secure connection.
5. Turn on your computer and LCD Monitor.
